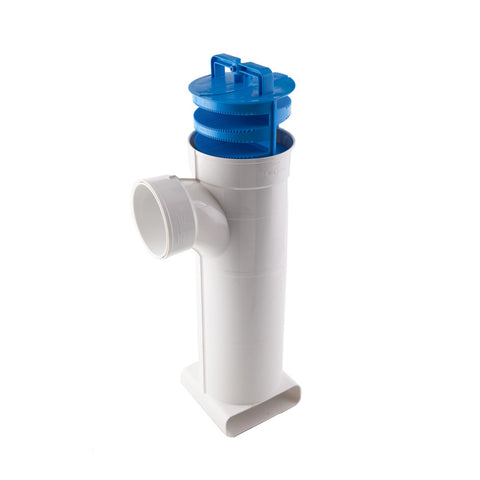

Shown at the left is the EF-6 Combo which includes the standard length (14" rise) Sanitary T-Baffleâ„¢, the EF-6 Filter, and the B4035 bushing for reducing the outlet from Sch. 40 to SDR35 pipe. The Solids Deflector is molded in. The Sanitary T-Baffleâ„¢ may also be used as an Inlet and Outlet Tee
1,500 GPDÂ
244 ft. of 1/16" Filtration
P/N: TUT-EFF-6FR
In the picture it shows another piece on the bottom. It square and hollow and open on both ends. Is that peice really needed
The square piece youre describing is part of the single-body housing of the filter body, it's there so that water flows into the filter horizontally, instead of vertically. If effluent flows into the filter directly from the bottom, the water flow may carry solids along with it from deeper in the tank, ideally you're wanting to only sample from the middle layer of your tank between the floating scum and the settled scum layers.
Is that a 4 inch pipe?
Yes, it's a 4 inch sch40 female connection, and it also comes with an adapter for SDR (thin-wall) as well.
