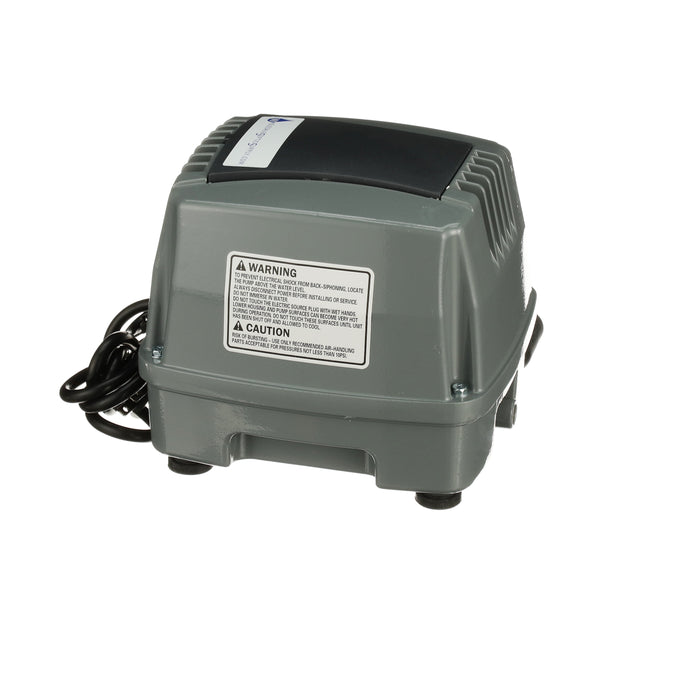

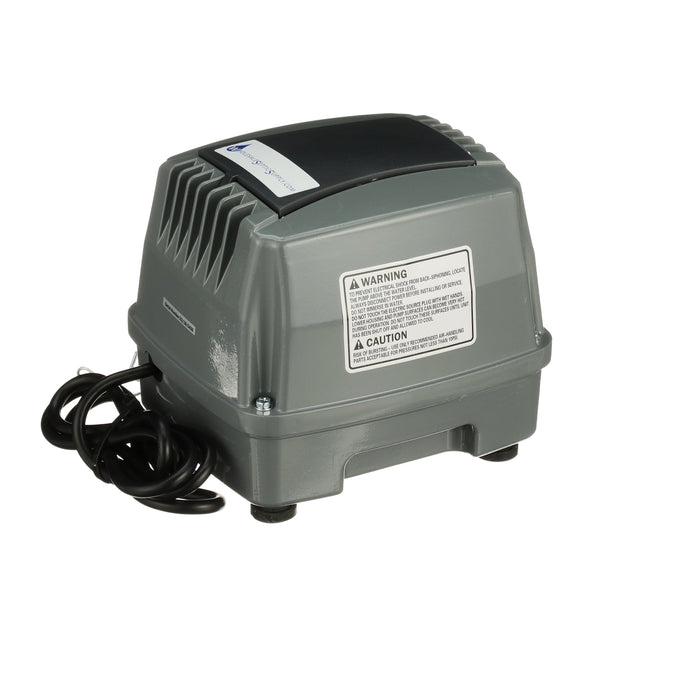

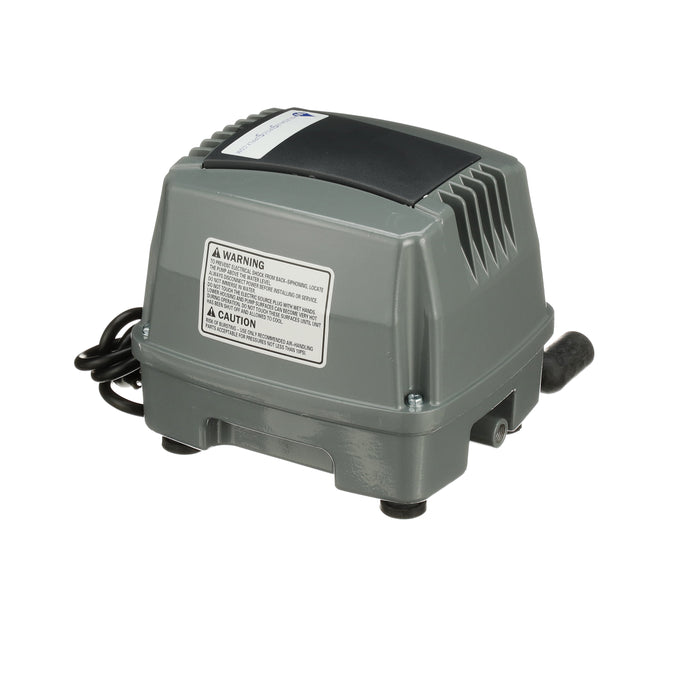

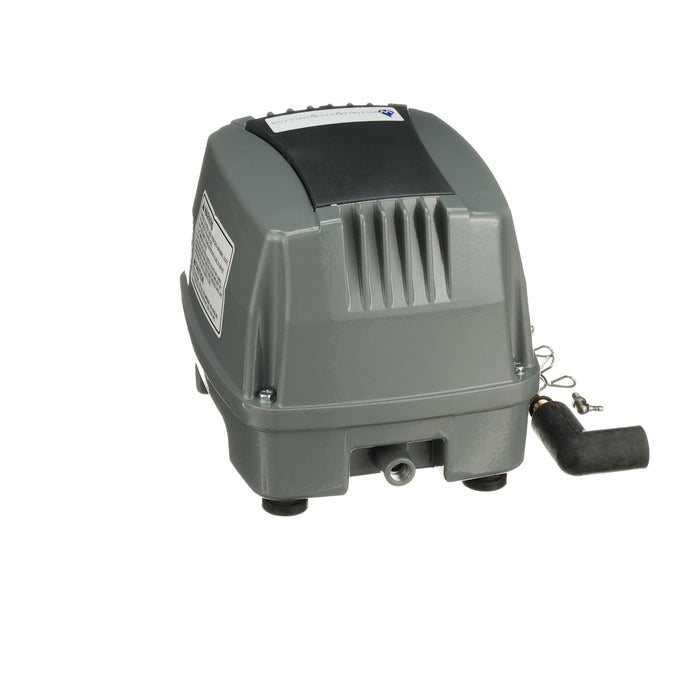

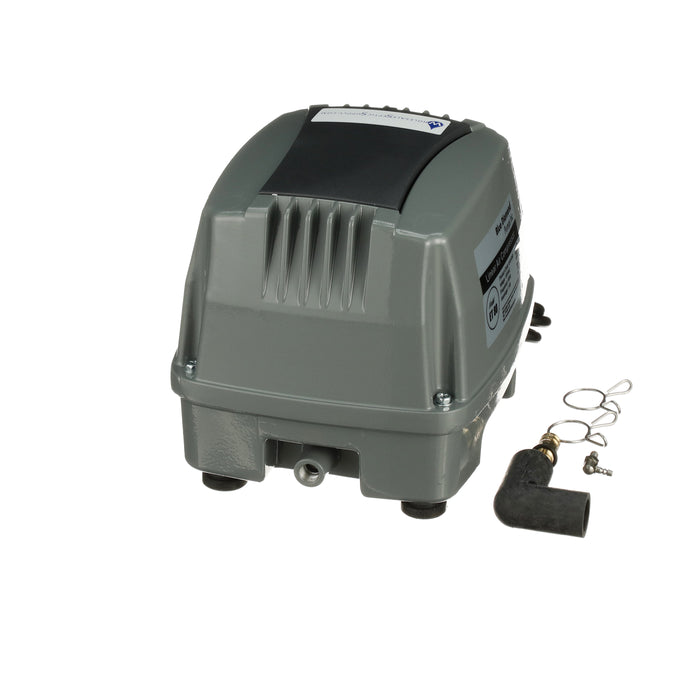

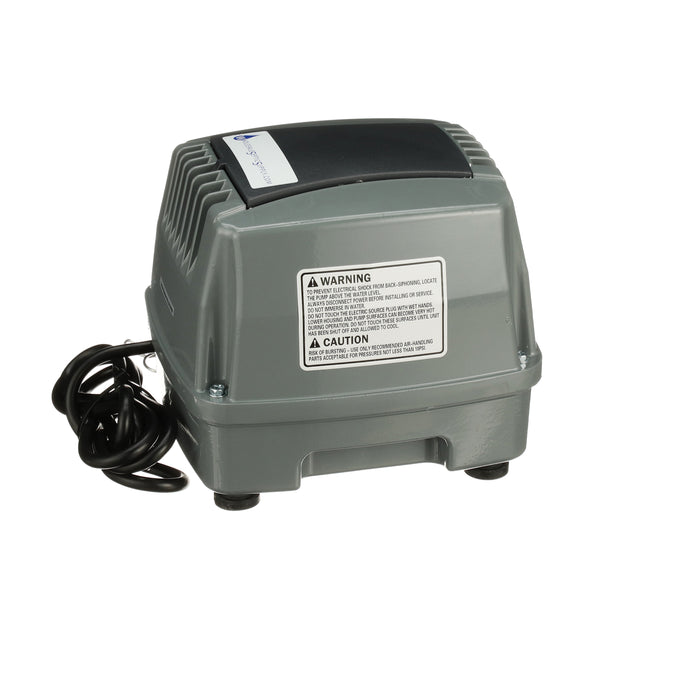

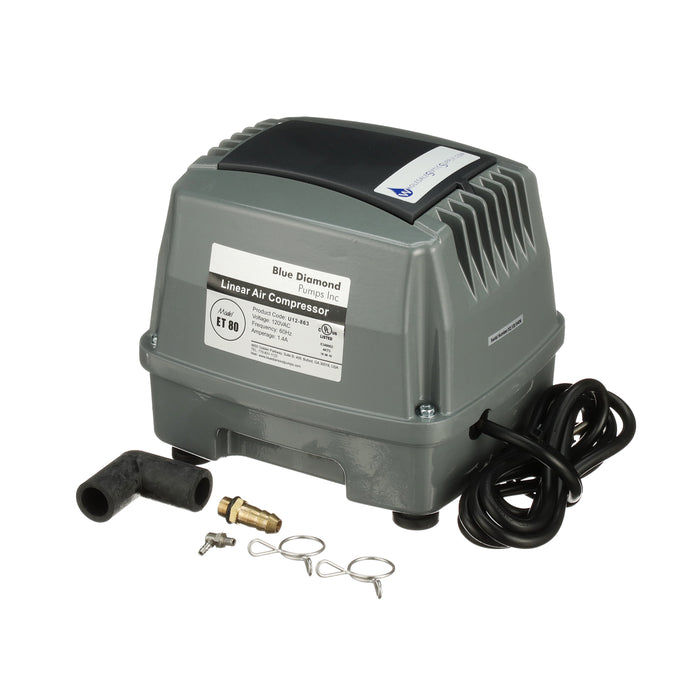

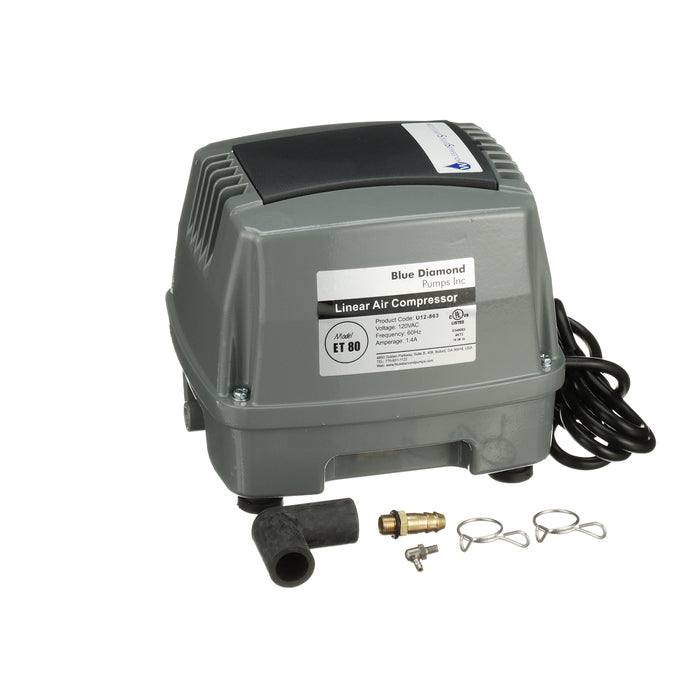

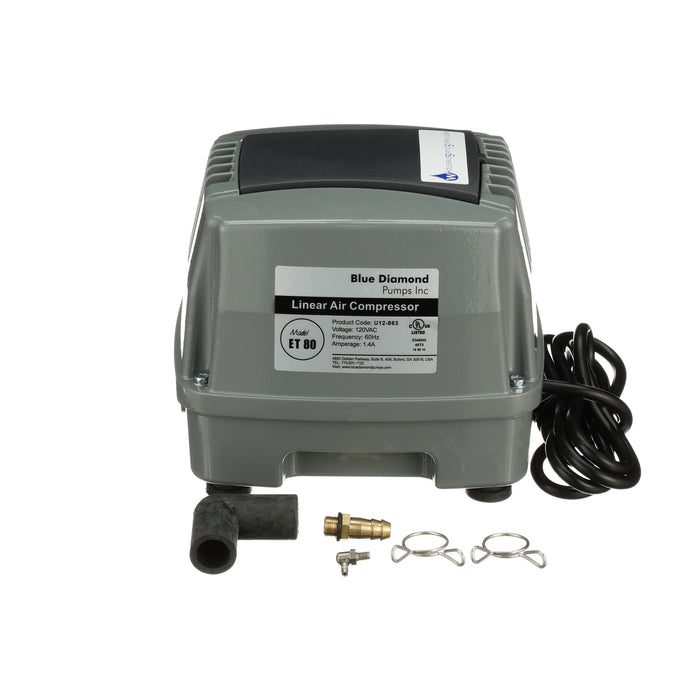

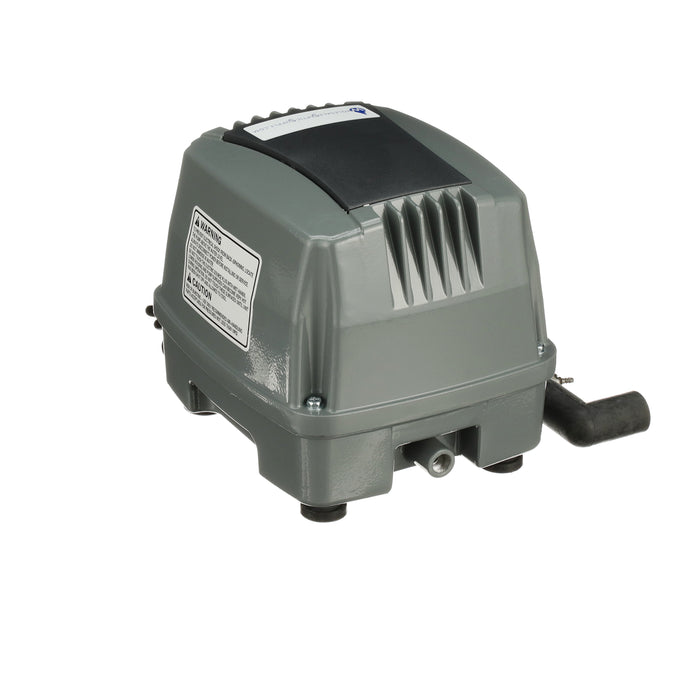

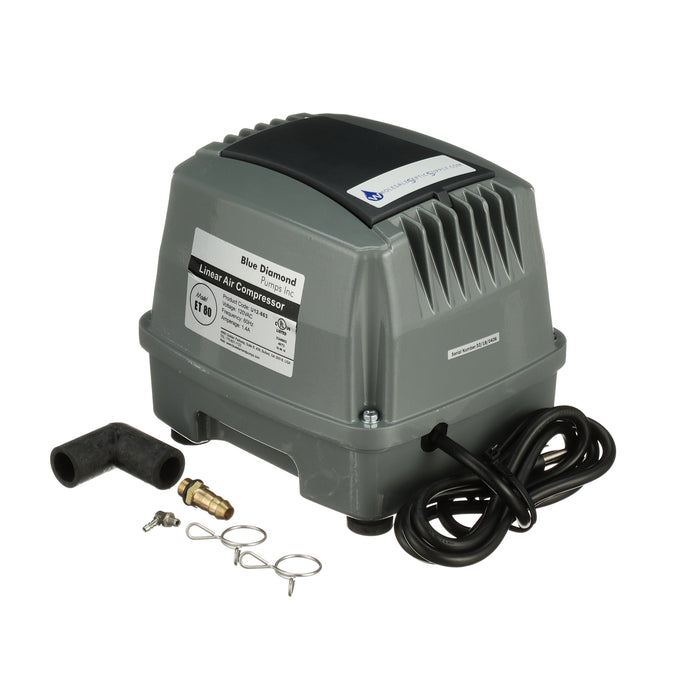

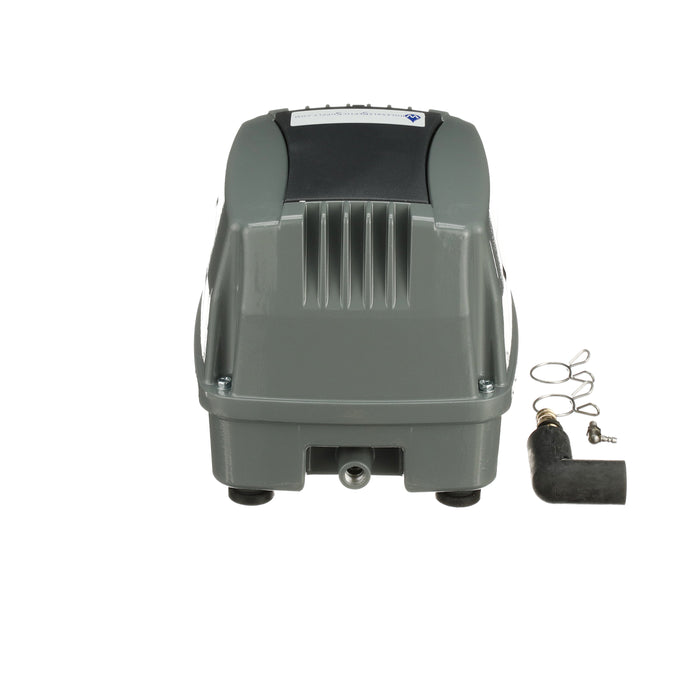

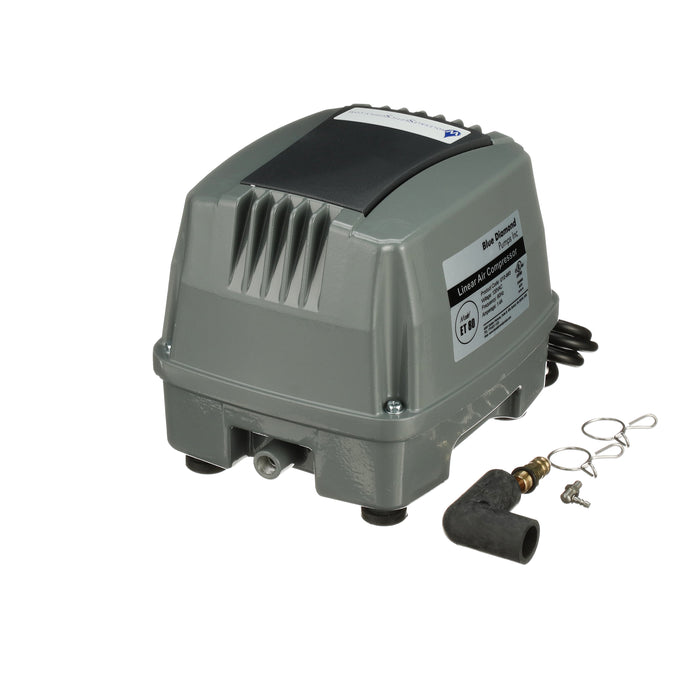

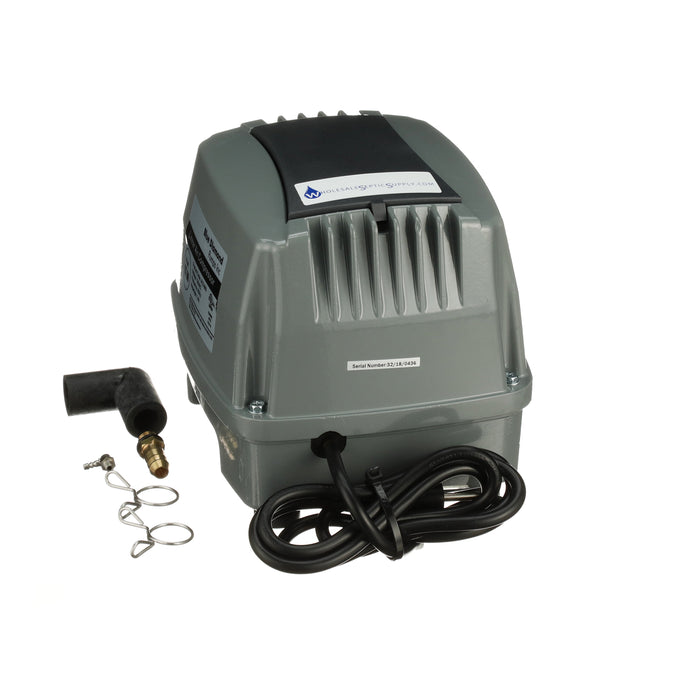

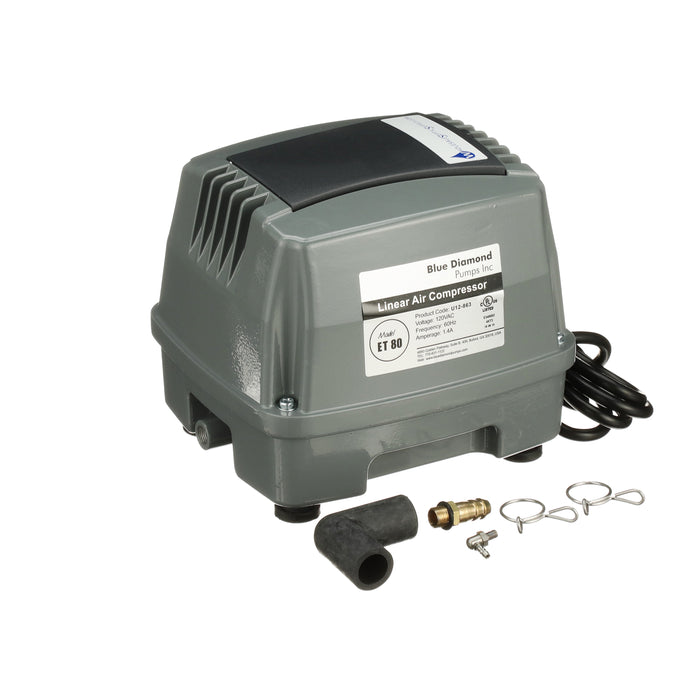

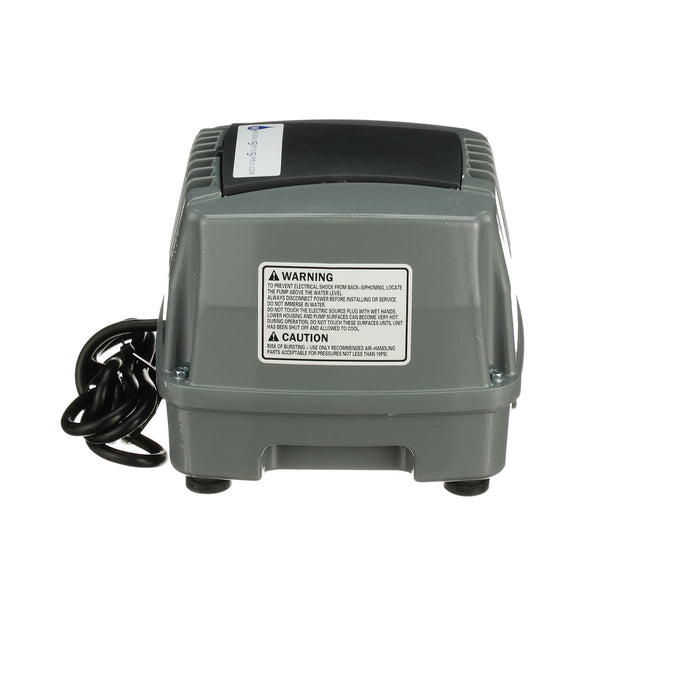

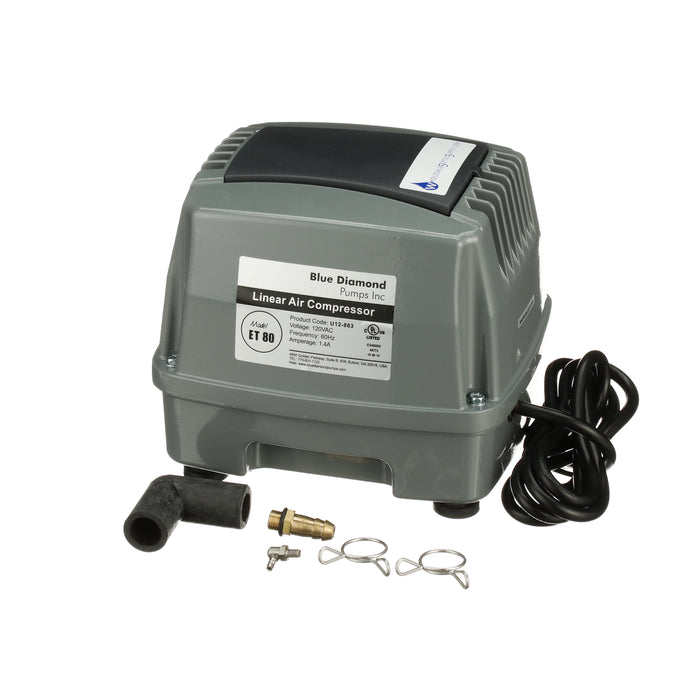

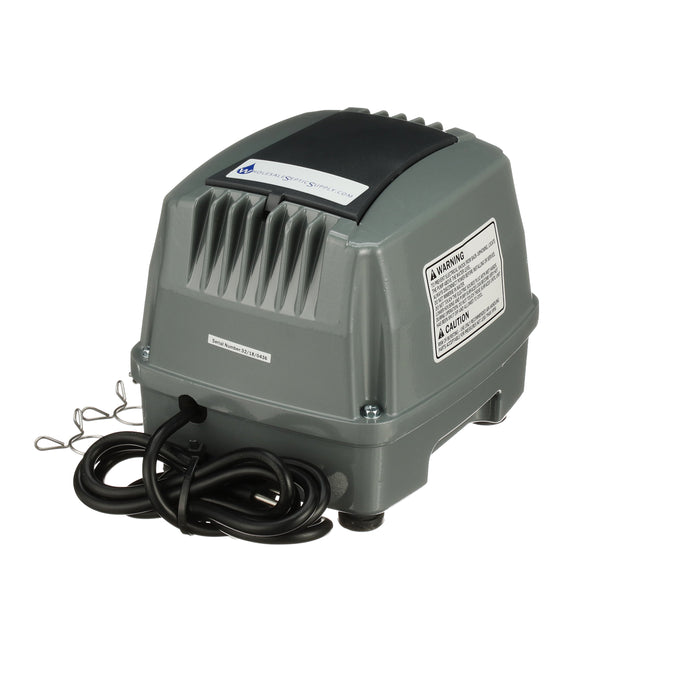

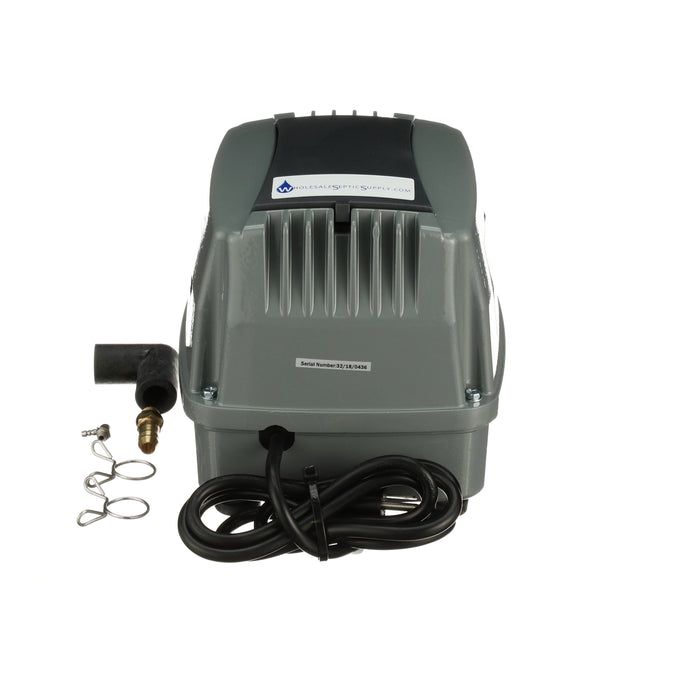

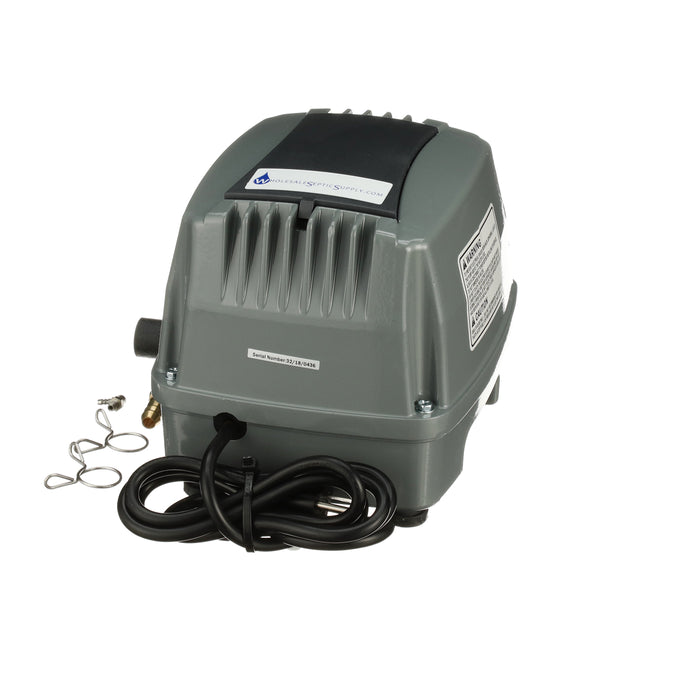

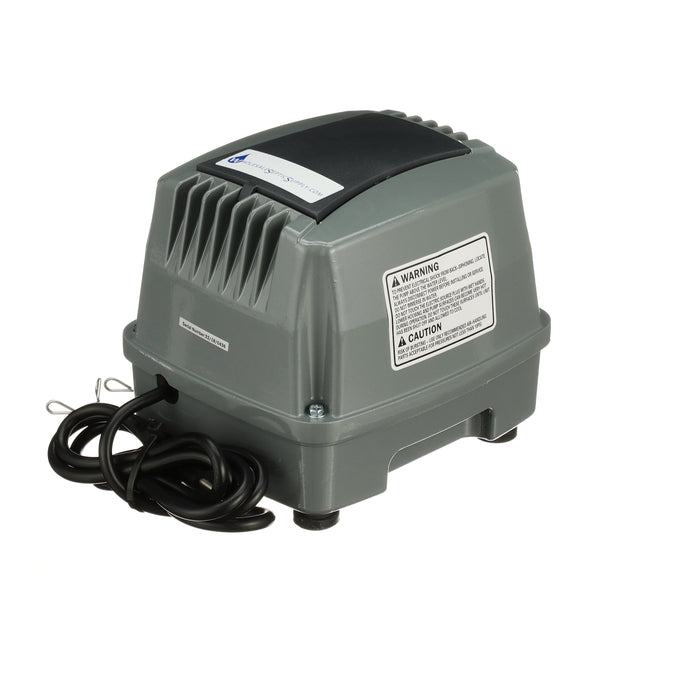

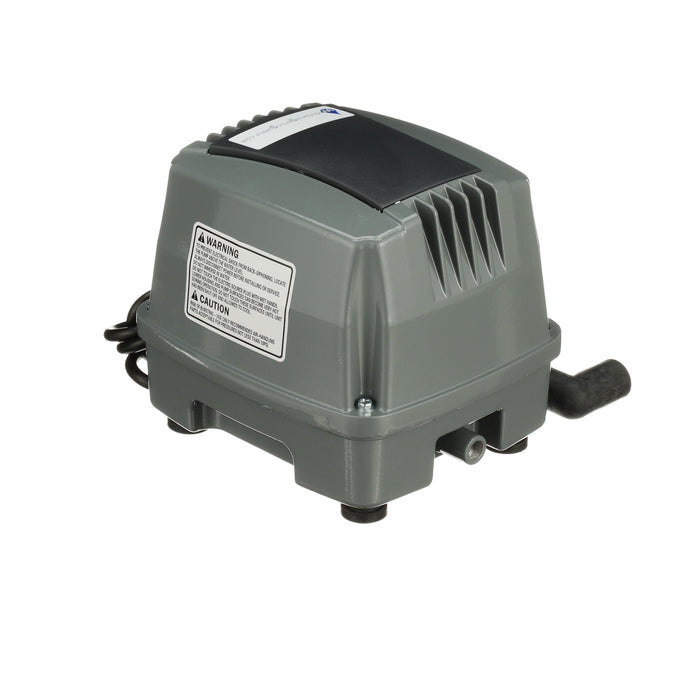

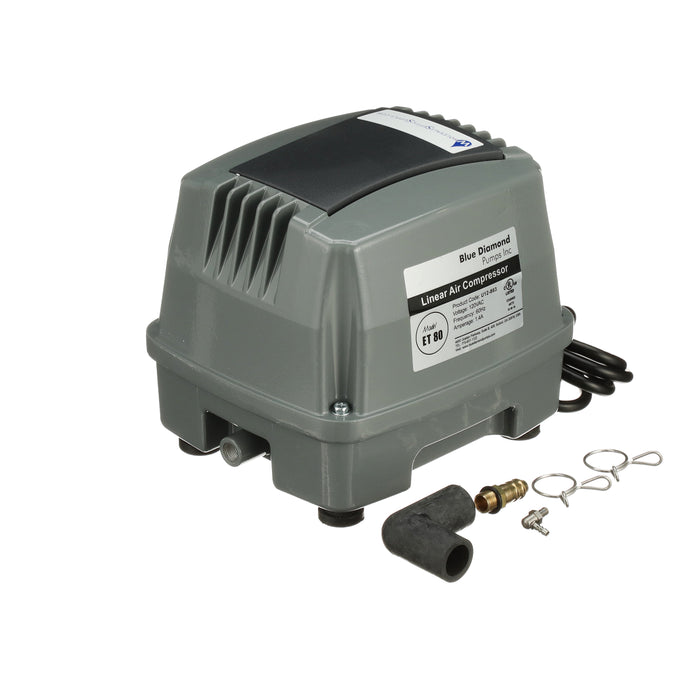

Blue Diamond ET80 Septic Air Pump
Blue Diamond ET80
This pump will help push oxygen into the wastewater in your septic system, so that your aerobic septic system can break down waste and reduce the amount of effluent, or wastewater, that goes into the environment. If you are looking for a new septic air pump, here are a few benefits of purchasing the Blue Diamond ET80:
The Blue Diamond ET80 Septic Air Pump has an air flow of 80 liters per minute, and it can handle over 500 gallons of water each day. This air flow means that a lot of oxygen is being pumped into the wastewater to help destroy effluent and sewage, allowing clear drainage to be released into the environment. This pump is designed to be able to run all day if necessary, and it has no wearing parts so it does not compromise performance. In addition to being one of the most commonly used aerators in the United States, this air pump is used by NSF certified residential sewage treatment system manufacturers. Choose effective, strong performance with the Blue Diamond ET80. These specific pumps are not to be used on ponds over 5 foot in depth as the back pressure will ruin them, as it is not good for them. Blue Diamond aerators noise level is higher than other comparable linear diaphragm aerators.
With aluminum, weatherproof casing, and special diaphragm material, the Blue Diamond ET80 Septic Air Pump is built to last. This pump is well suited for outdoor use, and is UL, TUV, and CE approved. If the diaphragm or any other part of this pump needs to be rebuilt, there are easy to use, affordable rebuild kits available. Your wallet will thank you when you save hundreds of dollars on replacing your septic system or air pump because you have the long-lasting, durable Blue Diamond ET80.
The Blue Diamond ET80 uses green drive technology to lower power consumption to as little as 85 watts, making it one of the most energy-efficient aerators of its caliber available. The pump is oil-free, which will be beneficial for the environment as your aerobic septic system manages waste. This energy saving air pump will save you money, making it a cost-effective aerator.
1 Year Manufacturer Warranty
- Linear Diaphragm air pump
- These specifications are results for a system with a 120-volt power source
- Most power providers within the United States provide VAC at 60 Hz
- The highest pressure at which this product should operate continuously is 1.45 PSI
- The noise level of this product will be about the average ambient noise within a home
- Oil free operation
- Thermal over load protection
Rated Voltage 120 Volts
Power supply Frequency 60 Hz
Power Consumption 75 W
Maximum Pressure 1.45 PSI
Airflow at Maximum Pressure 80 L / min 2.83 cfm
Sound level 40 dB
Weight 15.4 lbs.
Length 8.3 In
Width 7.3 In
Height 6.8 In
Outlet Outer Diameter 0.71 In
For more information about the Blue Diamond ET80 Septic Air Pump, feel free to contact us.
WARRANTY: Blue Diamonds come with a 1 year manufacturer warranty. Any and all warranty claims MUST be handled direct with Blue Diamond Pumps. Wholesale Septic Supply does NOT warranty Blue Diamond Aerators.
QUESTIONS & ANSWERSAsk a Question
how many years of warranty
Comes with a one year warranty.
Does it come with installation instructions
Yes, this septic air pump comes with instructions on how to install it if you have any issues you can contact us and we will walk you through any problems.
How long should the pump last?
Normal life is around two years before a rebuild is needed.
do you have a manual for this air pump ,to show where the air filter is ?
The filter is located on the top of the ET80 under the plactic housing.
Please define ‘louder’. Wha is the decibel rating
The manufacturer says 40 decibels but its around 60 its louder than the other linear pumps.
Can this unit replace a clearstream air pump?
No it should not be used on clearstream system do to the high back pressure that the clearstream diffuser puts on the aerators.
What is the voltage ?

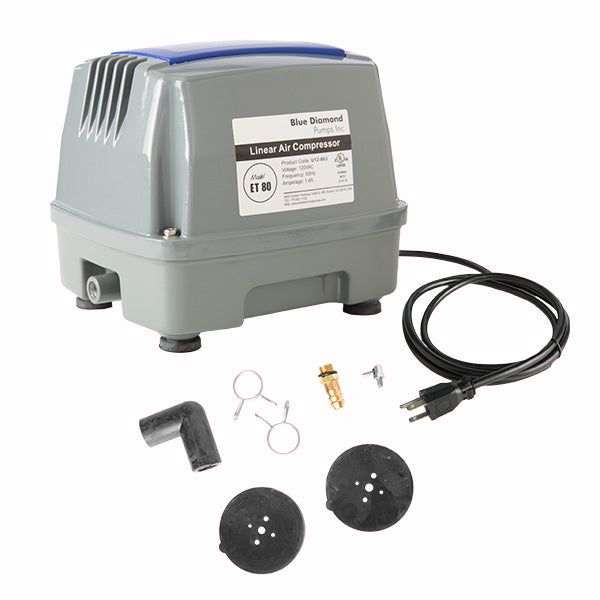

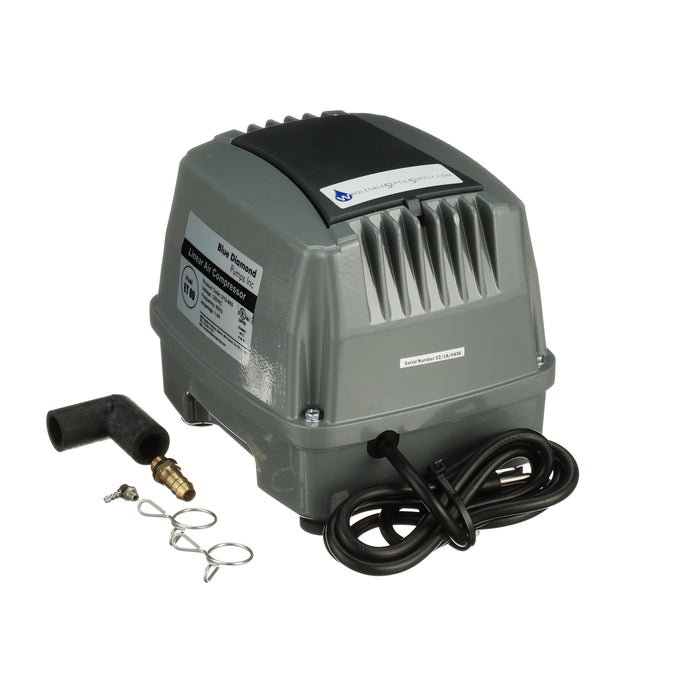

is the 90 degree ell included?
Yes, The 90-degree elbow is included with all diaphragm aerators we sell.
115v connection or hard wire
You can do it, either way; it comes with a three prong plug, if you need to hard wire it just cut the plug and hard wire it in.
