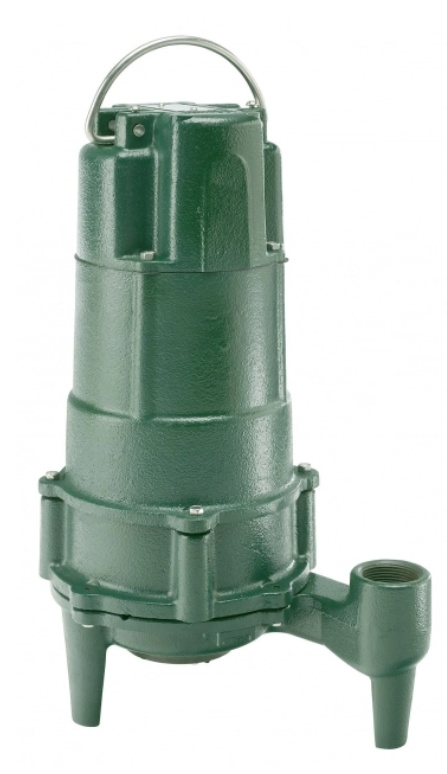

The CPG1 1HP single seal grinder Pump a single phase grinder pump designed with size and electrical capability in mind. It can be purchased with a start and run capacitors in the motor or located in the control panel. The pump can also be made with seal failer option. .

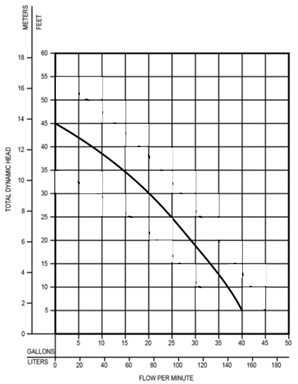

Heads up to 55’ TDH
Flows up to 42 GPM
Internal or exter...
The CPG1 1HP single seal grinder Pump a single phase grinder pump designed with size and electrical capability in mind. It can be purchased with ...

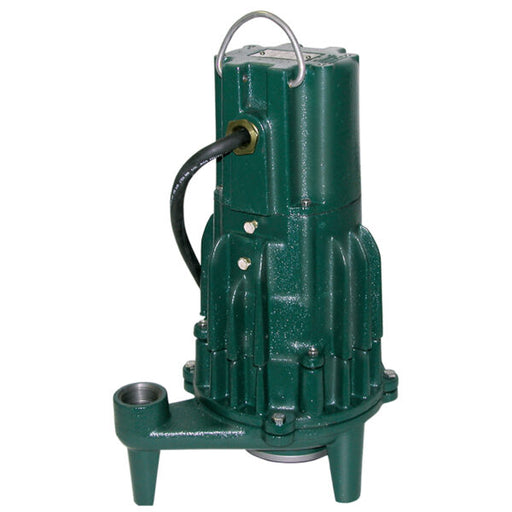

The CPG 2HP Double Seal Grinder Pump is available in single or three phase. It can be purchased with the start and run capacitors in the motor or in the control panel.
High Efficient Motor with upper & lower ball bearings/ Runs cooler & lasts longer
Cast Iron Impeller/Durable for long life
Piggy back switch/ pump can be run manually. Al...
The CPG 2HP Double Seal Grinder Pump is available in single or three phase. It can be purchased with the start and run capacitors in the motor or i...
Grinder pumps are pumps that have a blade on the bottom of the pump that cuts up and macerates solids and fibrous material that enter the sewage tank. They are the first line of defense in for homes and the vast network in municipal sewer systems or commercial property with an onsite system. The need for them has become more prevalent as the use of baby wipes, and feminine hygiene products and other fibrous items are more frequently flushed. Grinder pumps take anything that comes in the system and turn it into a very fine slurry so fine it passes through tiny 1/10-1/8 holes on the bottom of the pump that cutter blade spins on top of. Unlike other pumps that have a volute that is open a grinder pump has, for the most part, a closed volute that is closed by a stainless steel seal that has small holes in it the blade that cuts is offset by millimeters and spins on the face of this plate cutting up anything that comes into contact with it. This significantly reduces backups and clogs in the system that can cause a lot of damage inside properties and in lost production — used on homes more and more that have a direct connection to the city sewer line and need to pump it from the house to the city sewer line because of the distance of because of elevation. They are used more often in home applications because smaller pumps that are not grinders because easily clogged and backed up because they lack the power and size to pass large amounts of material that don't break down easily like toilet paper.
