Septic Tank Riser Kits

1 – 6 of 33 Results

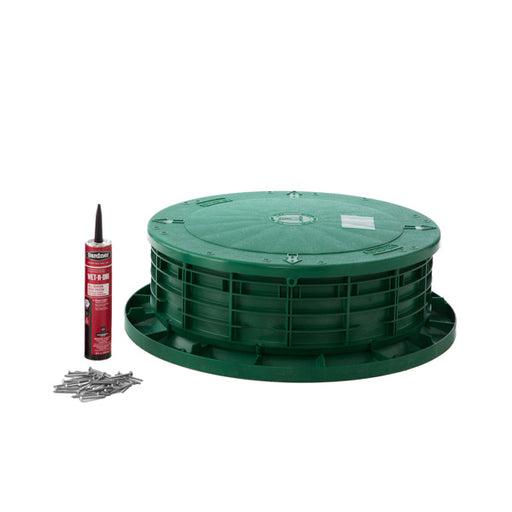

24" x 14" Septic Tank Riser Kit Overview: All Septic Riser Kits are measured by width and height. The width will be the first number and height of the second number. This system is 24" wide and 14" tall. The 24" refers to inside diameter its true total edge to edge is 30" but what matters is the inside, so this is why we refer to it as 24". The ...
24" x 14" Septic Tank Riser Kit Overview: All Septic Riser Kits are measured by width and height. The width will be the first number and height of ...
  68 Reviews
From $170.00

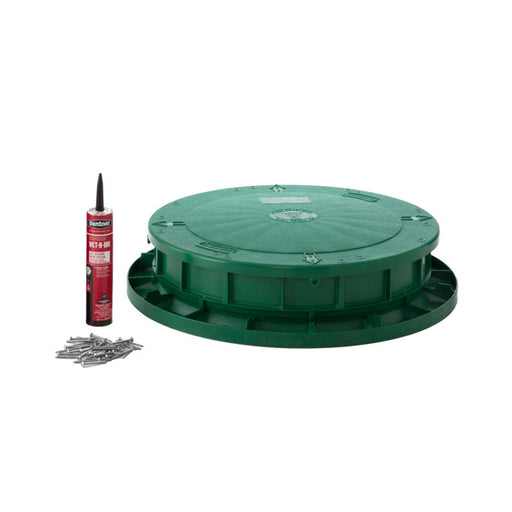

24" x 11" Septic Tank Riser Kit Overview: All Septic Riser Kits are measured by width and height. The width will be the first number and height of the second number. This system is 24" wide and 11" tall. The 24" refers to inside diameter its true total edge to edge is 30" but what matters is the inside, so this is why we refer to it as 24". The ...
24" x 11" Septic Tank Riser Kit Overview: All Septic Riser Kits are measured by width and height. The width will be the first number and height of ...
  56 Reviews
From $161.00

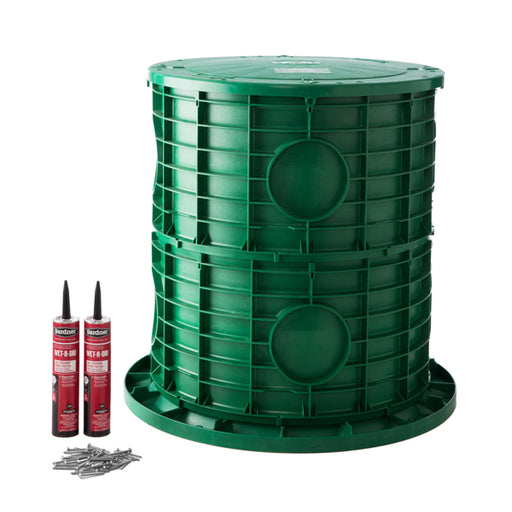

24" x 20" Septic Tank Riser Kit Overview: All Septic Riser Kits are measured by width and height. The width will be the first number and height of the second number. This system is 24" wide and 20" tall. The 24" refers to inside diameter its true total edge to edge is 30" but what matters is the inside, so this is why we refer to it as 24". The ...
24" x 20" Septic Tank Riser Kit Overview: All Septic Riser Kits are measured by width and height. The width will be the first number and height of ...
  53 Reviews
From $225.00

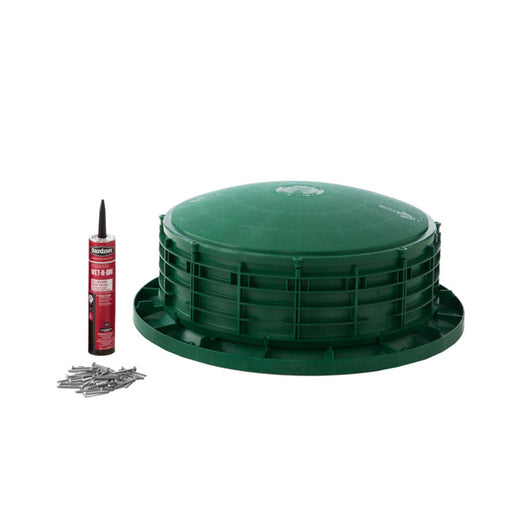

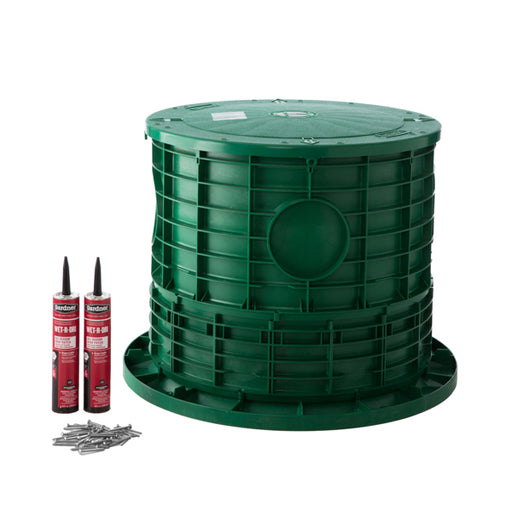

24" x 17" Septic Tank Riser Kit Overview: All Septic Riser Kits are measured by width and height. The width will be the first number and height of the second number. This system is 24" wide and 18" tall. The 24" refers to inside diameter its true total edge to edge is 30" but what matters is the inside, so this is why we refer to it as 24". The ...
24" x 17" Septic Tank Riser Kit Overview: All Septic Riser Kits are measured by width and height. The width will be the first number and height of ...
  47 Reviews
From $195.00

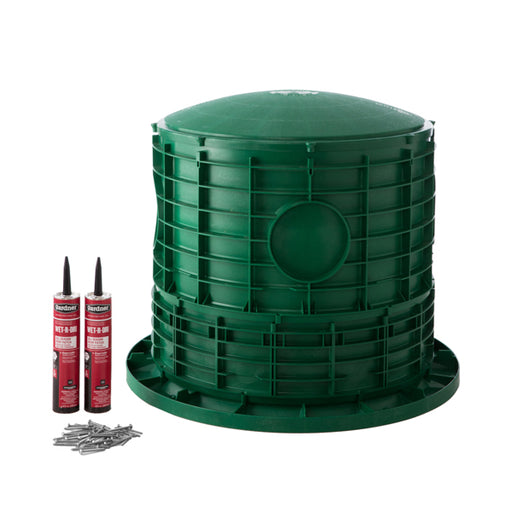

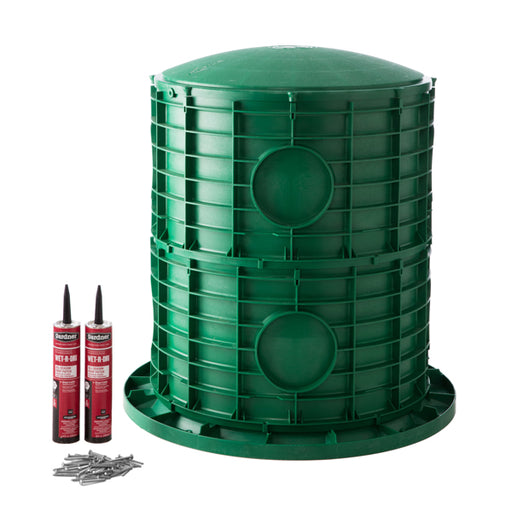

24" x 26" Septic Tank Riser Kit Overview: All Septic Riser Kits are measured by width and height. The width will be the first number and height of the second number. This system is 24" wide and 26" tall. The 24" refers to inside diameter its true total edge to edge is 30" but what matters is the inside, so this is why we refer to it as 24". The ...
24" x 26" Septic Tank Riser Kit Overview: All Septic Riser Kits are measured by width and height. The width will be the first number and height of ...
  46 Reviews
From $235.00

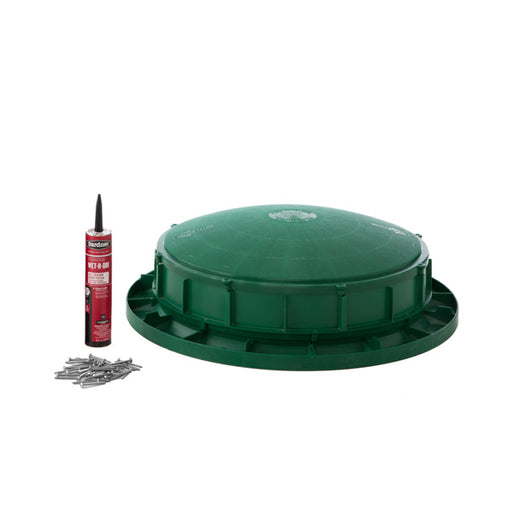

24" x 5" Septic Tank Riser Kit PLEASE NOTE: Septic Riser Kits Come Supplied with (1) one tube of riser tar sealant Overview: All Septic Riser Kits are measured by width and height. The width will be the first number and height of the second number. This system is 24" wide and 5" tall. The 24" refers to inside diameter its true total edge to edge...
24" x 5" Septic Tank Riser Kit PLEASE NOTE: Septic Riser Kits Come Supplied with (1) one tube of riser tar sealant Overview: All Septic Riser Kits ...
  39 Reviews
From $121.00

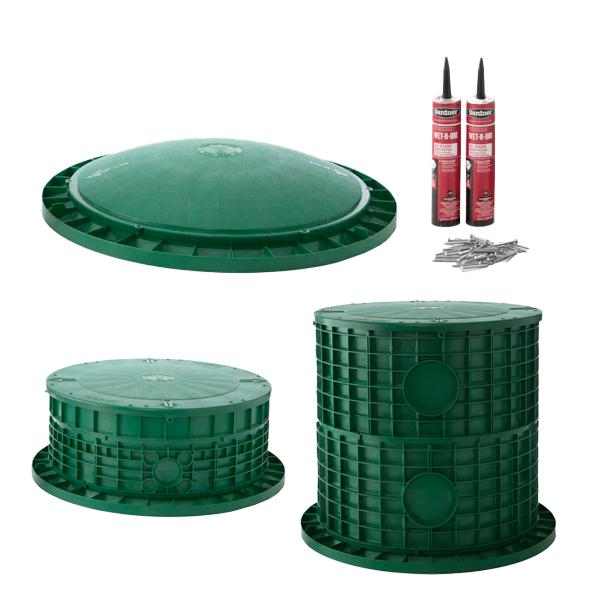

Septic Riser System

Septic Tank Riser Kits

 Overview

Are you tired of digging up your septic system every time that it needs serviced? If this sounds like you, we have a great solution. If you want to change the way your work on your septic system,you may be in need of a good septic riser.

Why choose Tuf Tite Risers?

The Tuf Tite Septic Riser System provides you with quick, easy access to your outdoor septic system. With the aid of this innovative tool, septic system service is a breeze, you will never have a need to dig up your septic system ever again! The Septic Riser System takes out all guesswork by supplying you with the riser and parts you need to get the job done. Because you are purchasing all of the necessary parts in one complete kit, you are guaranteed to save time and money. Once the system is placed, all future maintenance will take little to no time at all.

What are the Tuf Tite Product Specs?

Every riser system installs easily on concrete septic tank lids, and the kit will even be able to tell you what size access hole will best complement your septic system. The riser system works on 95 percent of septic systems with round diameter size accesses from 16 " or less to 25" or less, and square sizes 11"x 11" to 18" x 18". If you are looking for quality, look no further. The Tuf Tite riser system is available in many sizes, and is built to last.



Riser and Riser Kits

Septic tanks are typically placed below ground level. This requires that they must be unearthed in order to be serviced. The way to combat this problem is to install a riser kit. The riser itself is a ring that is meant to extend the tank access port to ground level. An adaptor ring should be placed where the riser comes into contact with the tank. A sealant should be placed on the bottom of the adaptor ring to ensure contaminants cannot enter the tank. A number of risers will stack on top of each other and the adaptor ring until they reach ground level. A domed or flat septic tank cover should be placed upon the stack of risers. This system will create a barrier to protect the tank from contaminants and allow easier access to the tank.

It is important to keep in mind that most tank access ports will be square, but the riser will be circular. There are a few ways to make sure the circular riser will fit around your square or rectangular access port.

The first method is simply to measure the diagonal distance across the access port. The diagonal distance across the access is the largest distance that a riser will have to encompass.

     The following equation can be used to get the diagonal distance of a square access port. Let “a” be the length of one side of the access port. Then let “b” be the length of the side perpendicular to side “a”. The following equations will only give you the actual diagonal distance when the length of “a” is equal to the length of “b”. For instance, A is 12 inches and B is 12 Inches. The user would take 12 and multiply it by 1.141 that gives the user a distance of 17 inches.

The equations above can be used to approximate the diagonal distance of a rectangle. Using the longest side of your access port in the before mentioned equations will provide a distance that is greater than the actual diagonal distance of your rectangular access port. Only risers with an inner diameter that is greater than the diagonal distance of the access port should be used.

               There may be times when you are unable to measure the distance the riser needs to cover, but you still know the dimensions of the access port. This method will require that you know the length of each side of your rectangular access port. You may recall Pythagorean theorem form your geometry course.
