  • Tran N2 No Timer Septic Control Panel

    Tran Controls
    Original price $287.00 - Original price $287.00
    Original price
    $287.00
    $287.00 - $287.00
    Current price $287.00
      8 Reviews

    Key Features Specs Warranty If you are searching for a high-quality septic aerobic system control panel, the Tran N2 Septic Control Panel wi...

    View full details
    Original price $287.00 - Original price $287.00
    Original price
    $287.00
    $287.00 - $287.00
    Current price $287.00
  • DIY Friendly

    Tran T2 Septic Control Panel

    Tran Controls
    Original price $315.00 - Original price $315.00
    Original price
    $315.00
    $315.00 - $315.00
    Current price $315.00
      2 Reviews

    Key Features Specs Warranty The Tran line of control panels can replace most aerobic system control panels. They are constructed with high q...

    View full details
    Original price $315.00 - Original price $315.00
    Original price
    $315.00
    $315.00 - $315.00
    Current price $315.00
  • E2 Economy Timer Septic Control Panel

    RJR Controls Control Panels
    Original price $410.00 - Original price $410.00
    Original price
    $410.00
    $410.00 - $410.00
    Current price $410.00
      2 Reviews

    Key Features Specs Warranty Documentation The E2 control will monitor the water level and system air pressure. There will be a 360 degree top ...

    View full details
    Original price $410.00 - Original price $410.00
    Original price
    $410.00
    $410.00 - $410.00
    Current price $410.00
  • E1 Economy Septic Control Panel

    RJR Controls Control Panels
    Original price $300.00 - Original price $300.00
    Original price
    $300.00
    $300.00 - $300.00
    Current price $300.00
      1 Reviews

    Key Features Specs Warranty Documentation The E1 control will monitor the water level and system air pressure. There will be a 360 degree top ...

    View full details
    Original price $300.00 - Original price $300.00
    Original price
    $300.00
    $300.00 - $300.00
    Current price $300.00
  • Aerobic Septic Clock Timer Control Panel Dual Light ACP-PC-2A

    RJR Controls Control Panels
    Original price $410.00 - Original price $410.00
    Original price
    $410.00
    $410.00 - $410.00
    Current price $410.00
      1 Reviews

    Key Features Specs Warranty Documentation Aerobic Septic Clock Timer Control Panel Dual Light *Discontinued* This panel has been discontinued,...

    View full details
    Original price $410.00 - Original price $410.00
    Original price
    $410.00
    $410.00 - $410.00
    Current price $410.00
  • Aerobic Septic Control Panel Dual Light120V ACP-DMD-2A

    RJR Controls Control Panels
    Original price $375.00 - Original price $375.00
    Original price
    $375.00
    $375.00 - $375.00
    Current price $375.00
      1 Reviews

    Key Features Specs Warranty Documentation **THIS PANEL HAS BEEN REPLACED BY A DUAL ALARM/SINGLE LIGHT CONTROL PANEL** This panel has been repl...

    View full details
    Original price $375.00 - Original price $375.00
    Original price
    $375.00
    $375.00 - $375.00
    Current price $375.00
  • Jet Compatible Aerator Septic Control Panel JAOCS

    Unknown Vendor
    Original price $415.00 - Original price $415.00
    Original price
    $415.00
    $415.00 - $415.00
    Current price $415.00

    Key Features Specs Warranty This control panel will power one shaft aerator. There is no timer to operate the aerator in this control. The a...

    View full details
    Original price $415.00 - Original price $415.00
    Original price
    $415.00
    $415.00 - $415.00
    Current price $415.00

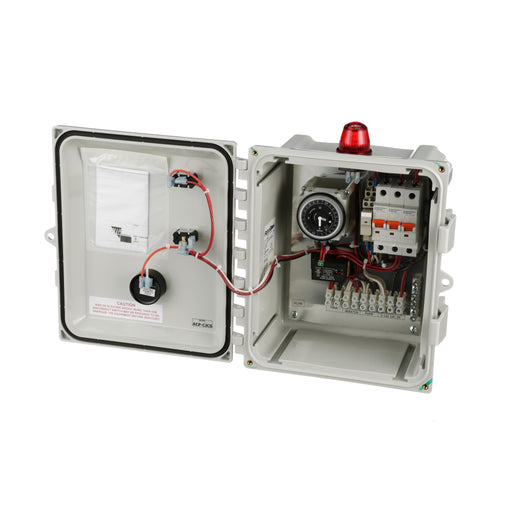

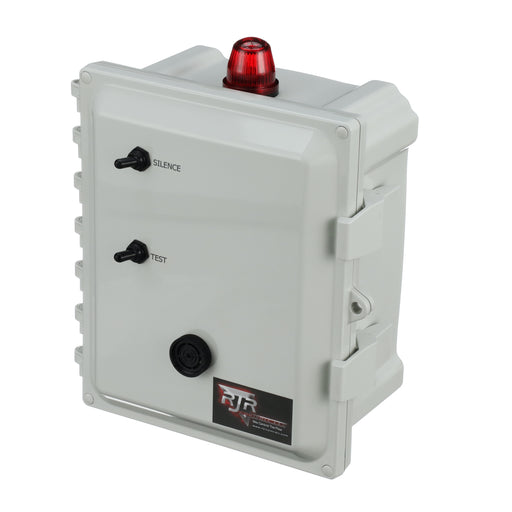

  • Jet Compatible Aerobic Septic Control Panel 120V ACP-CJCS

    RJR Controls Control Panels
    Original price $490.00 - Original price $490.00
    Original price
    $490.00
    $490.00 - $490.00
    Current price $490.00
      1 Reviews

    Key Features Specs Warranty The 20 Amp pump circuit breaker will supply a 120VAC single phase ½ HP or smaller pump. The pump operation is co...

    View full details
    Original price $490.00 - Original price $490.00
    Original price
    $490.00
    $490.00 - $490.00
    Current price $490.00
  • Aerobic Septic Clock Timer Control Panel E4L

    Unknown Vendor
    Original price $410.00 - Original price $410.00
    Original price
    $410.00
    $410.00 - $410.00
    Current price $410.00

    Key Features Specs Warranty The E4L replaces the discontinued ACP-PC-2A. Aerobic Treatment Units (ATUs) typically have a couple devices that...

    View full details
    Original price $410.00 - Original price $410.00
    Original price
    $410.00
    $410.00 - $410.00
    Current price $410.00
  • JAOCS Norweco Aerator Control Panel JAOCS

    Unknown Vendor
    Original price $415.00 - Original price $415.00
    Original price
    $415.00
    $415.00 - $415.00
    Current price $415.00

    Key Features Specs Warranty This control panel will power one shaft aerator. There is no timer to operate the aerator in this control. The a...

    View full details
    Original price $415.00 - Original price $415.00
    Original price
    $415.00
    $415.00 - $415.00
    Current price $415.00

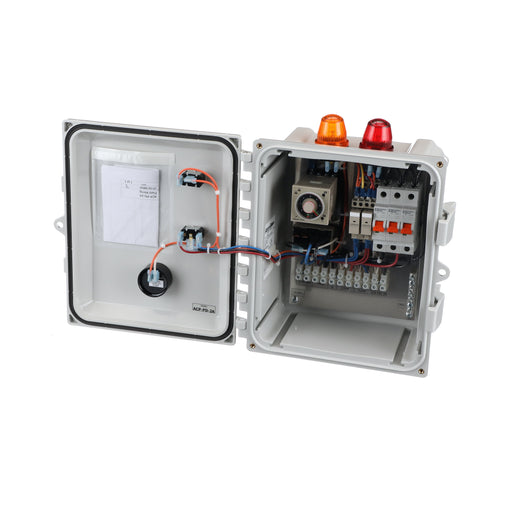

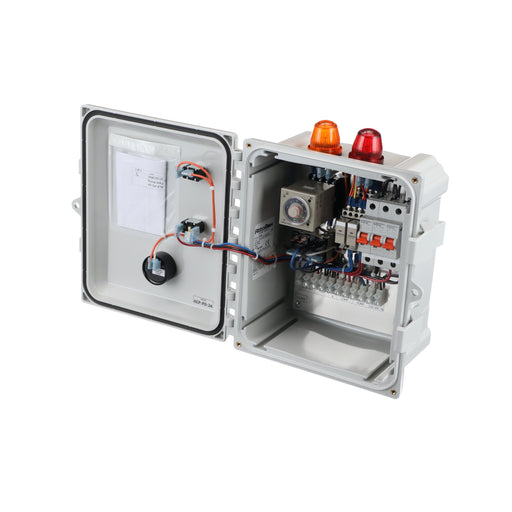

  • Aerobic Septic Dosing Timer Control Panel Dual Light ACP-PD-2A

    RJR Controls Control Panels
    Original price $625.00 - Original price $625.00
    Original price
    $625.00
    $625.00 - $625.00
    Current price $625.00
      1 Reviews

    Key Features Specs Warranty Documentation **THIS PANEL HAS BEEN REPLACED BY A SINGLE LIGHT, DUAL ALARM PANEL, SEE BELOW LINK** https://www.wh...

    View full details
    Original price $625.00 - Original price $625.00
    Original price
    $625.00
    $625.00 - $625.00
    Current price $625.00
  • Aerobic Septic Control Panel ACP-E3L

    Unknown Vendor
    Original price $375.00 - Original price $375.00
    Original price
    $375.00
    $375.00 - $375.00
    Current price $375.00

    Key Features Specs Warranty Aerobic Treatment Units (ATUs) typically have a couple devices that require electricity. Often times ATUs use the...

    View full details
    Original price $375.00 - Original price $375.00
    Original price
    $375.00
    $375.00 - $375.00
    Current price $375.00
  • Aerobic Septic Dosing Timer Control Panel Dual Alarm

    Unknown Vendor
    Original price $625.00 - Original price $625.00
    Original price
    $625.00
    $625.00 - $625.00
    Current price $625.00

    Key Features Specs Warranty The E5L replaces the discontinued ACP-PD-2A. Aerobic Treatment Units (ATUs) typically have a couple devices that...

    View full details
    Original price $625.00 - Original price $625.00
    Original price
    $625.00
    $625.00 - $625.00
    Current price $625.00

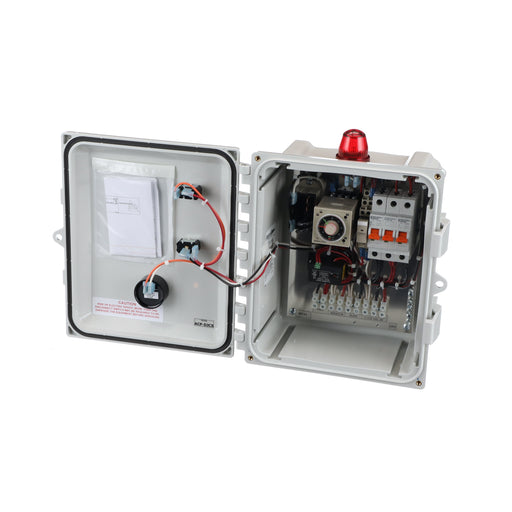

  • Jet Compatible Dosing Septic Control Panel ACP-DJCS

    Unknown Vendor
    Original price $755.00 - Original price $755.00
    Original price
    $755.00
    $755.00 - $755.00
    Current price $755.00

    Key Features Specs Warranty This control panel will power one shaft aerator and one effluent pump. There is no timer to operate the aerator ...

    View full details
    Original price $755.00 - Original price $755.00
    Original price
    $755.00
    $755.00 - $755.00
    Current price $755.00
  • Jet Compatible Dual Aerator Clock Timer Control Panel 120V ACP-CJ2ACS

    RJR Controls Control Panels
    Original price $546.00 - Original price $546.00
    Original price
    $546.00
    $546.00 - $546.00
    Current price $546.00

    Key Features Specs Warranty The aerators in this system will run continuously. There will be a 360 degree top mounted red light for alarm con...

    View full details
    Original price $546.00 - Original price $546.00
    Original price
    $546.00
    $546.00 - $546.00
    Current price $546.00

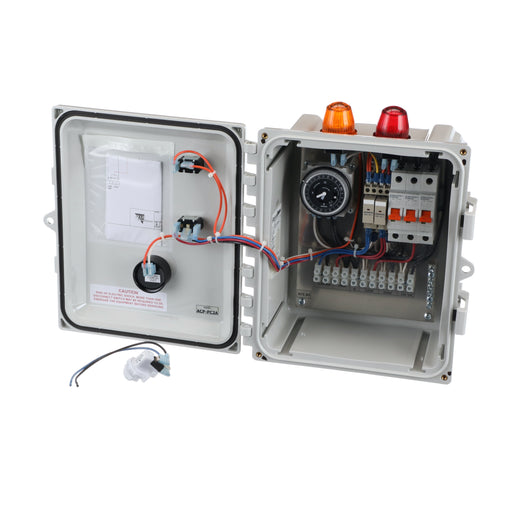

  • ACP-PC-2A Aerobic Control Panel

    Unknown Vendor
    Original price $410.00 - Original price $410.00
    Original price
    $410.00
    $410.00 - $410.00
    Current price $410.00

    Key Features Specs Warranty Aerobic Septic Clock Timer Control Panel Dual Light *Discontinued* This panel has been discontinued, but has bee...

    View full details
    Original price $410.00 - Original price $410.00
    Original price
    $410.00
    $410.00 - $410.00
    Current price $410.00

Control panels are designed to monitor every part of your treatment system, also offering you complete control over it for regular usage or maintenance purposes.

Control panels have two main functions. Their first function is to provide a location to joint electrical equipment to a power source. To do that safely, these units are weather resistant to protect their electrical circuits from the elements. Their second function is to organize and manage the systems they power. Various models will have different approaches for the second function, but all control panels will serve those two functions.

Aerobic septic systems often use an effluent pump and an air compressor, and both of those products require electricity to operate. A control panel provides a place for the power from the house to supply the compressor and pump. In order to properly control and manage these, control panels often use timers, alarms, and pressure switches.

Control panels that do not use a timer for their effluent pump are called “on demand” panels. This is because the pump is activated whenever it is needed. A float switch is most often used to activate and deactivate the pump.

Clock timers and dosing timers are the two most common timers for controlling the effluent pump. Timers are used to either regulate either what time of day the pump can activate or how long the pump can run for each activation. Clock timers allow the user to control what time of day the pump can activate. For example, the Grasslin timer breaks up each 24-hour day into 15-minute intervals, and the user can dictate which intervals the pump can activate.

Dosing timers are used to specify an activation and deactivation cycle and have no regard for the time of day. This style of timer allows the pump to be activate for a prescribed amount of time and deactivate for another length of time. The pump will the continue that on/off cycle.

Override float switches are typically used with control panels that use timers. This is because irregular usage may cause the system to fill up before the timer activates the pump again. The override float switch activates the pump independently of the timer. This allows the system to pump down before the wastewater backs up into the home.

Pressure switches and high-water float switches are the most common methods for triggering the control panel’s alarm. High water float switches will trigger the alarm when the water level within the tank is too high.

A pressure switch may be connected to the air compressor. The purpose of a pressure switch is to trigger the alarm when the pressure drops below acceptable levels. Usually, a small hose connects the air compressor to the pressure switch. That hose allows pressure from the air compressor to be conveyed to the pressure switch.

The figure below shows the typical connections found on an on-demand control panel for an aerobic septic system.

  1. Effluent Pump. The effluent pump is used to remove wastewater from the system.
  2. On/off float switch for pump. This float switch turns the effluent pump on and off.
  3. Air compressor. The air compressor injects air into the system for aerobic bacteria.
  4. Float switch for high water alarm. This float switch will trigger an alarm if the water level gets too high.
  5. Pressure switch for low presser alarm. The pressure switch will turn on an alarm if air pressure drops too low.

The following figure depicts they typical connections found on an aerobic control timer with a timer.

  1. Pump. The effluent pump is used to remove wastewater from the system.
  2. On/Off Float switch for pump. This float switch turns the effluent pump on and off.
  3. Air compressor. The air compressor injects air into the system for aerobic bacteria.
  4. Override Float. This float switch will override the timer and activate the pump.
  5. Float switch for high water alarm. This float switch will trigger an alarm if the water level gets too high.
  6. Pressure switch of low air pressure alarm. The pressure switch will turn on an alarm if the air pressure drops too low.
