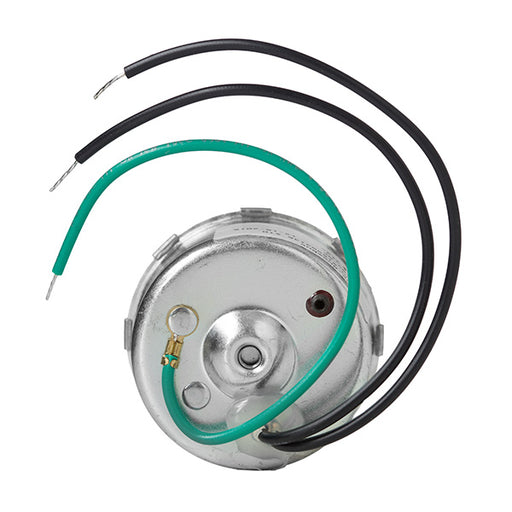

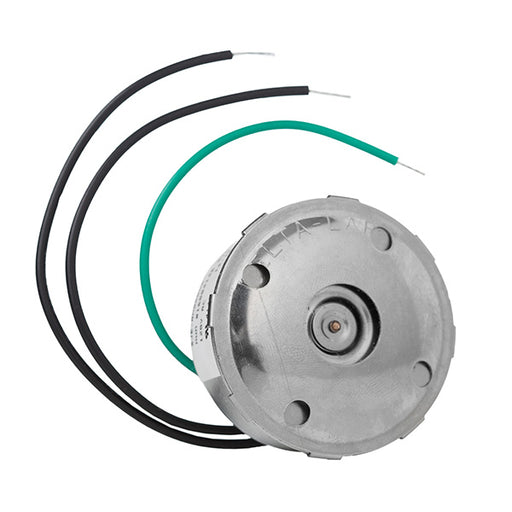

  • Delta-Larm Buzzer (16004146)

    Unknown Vendor
    Original price $31.00 - Original price $31.00
    Original price
    $31.00
    $31.00 - $31.00
    Current price $31.00
      2 Reviews

    Key Features Specs Warranty The Delta-Larm is a buzzer that is used to alert operators across a variety of industries. This buzzer is a grea...

    View full details
    Original price $31.00 - Original price $31.00
    Original price
    $31.00
    $31.00 - $31.00
    Current price $31.00

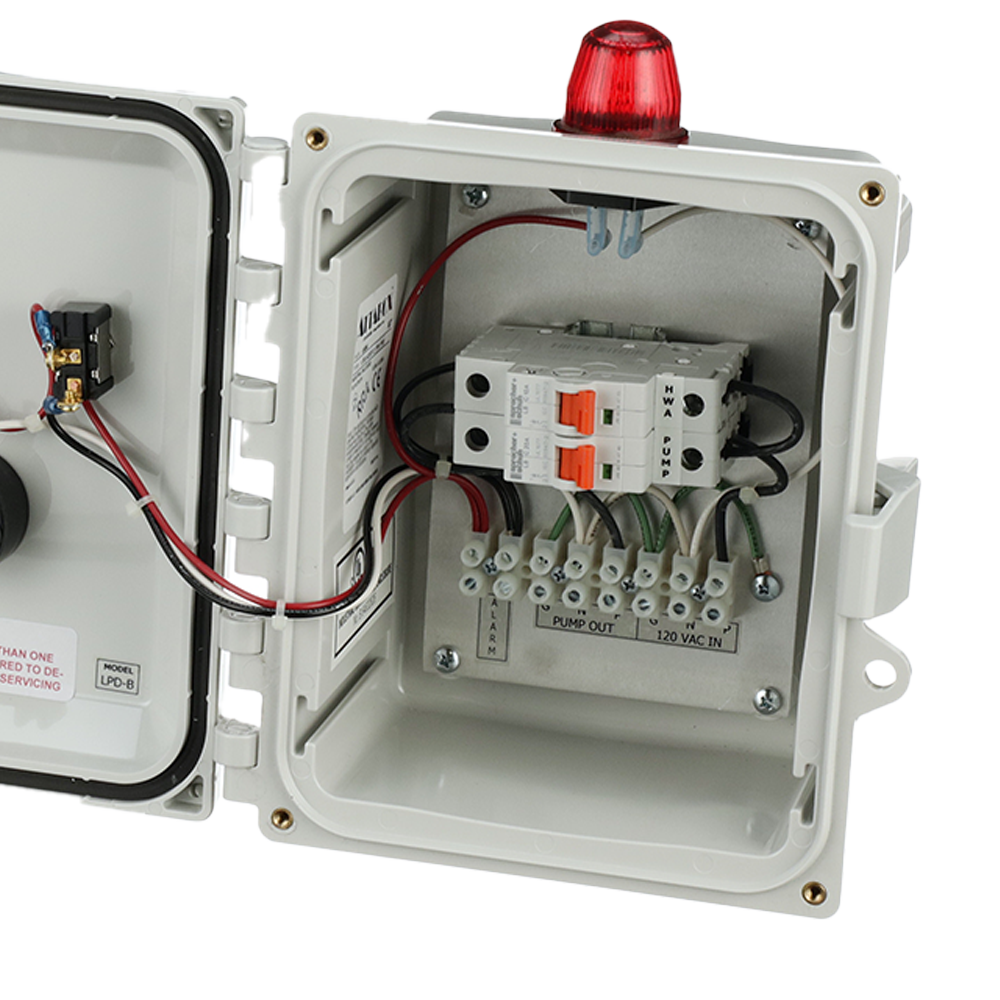

  • Simplex Control Panel 120V LPD-B

    RJR Controls Control Panels
    Original price $260.00 - Original price $260.00
    Original price
    $260.00
    $260.00 - $260.00
    Current price $260.00
      2 Reviews

    Key Features Specs This control panel will operate a 120 VAC single phase 1/2 HP pump (or smaller). There are two circuit breakers in this con...

    View full details
    Original price $260.00 - Original price $260.00
    Original price
    $260.00
    $260.00 - $260.00
    Current price $260.00

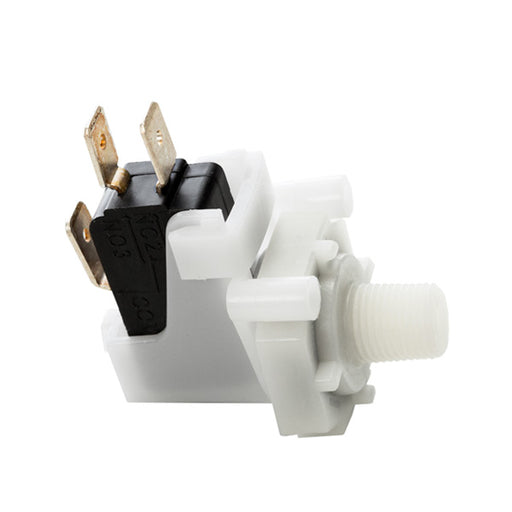

  • Clearstream Pressure Switch

    Unknown Vendor
    Original price $27.00 - Original price $27.00
    Original price
    $27.00
    $27.00 - $27.00
    Current price $27.00

    The Clearstream Pressure Switch is a critical monitoring component meticulously designed for seamless integration within Clearstream aerobic wastew...

    View full details
    Original price $27.00 - Original price $27.00
    Original price
    $27.00
    $27.00 - $27.00
    Current price $27.00
  • Grinder Simplex Control Panel 220V LPD-G3F

    RJR Controls Control Panels
    Original price $485.00 - Original price $485.00
    Original price
    $485.00
    $485.00 - $485.00
    Current price $485.00
      3 Reviews

    Key Features Specs Warranty Documentation The pump operates on demand with a three float set up. The three floats are On float, Off float and ...

    View full details
    Original price $485.00 - Original price $485.00
    Original price
    $485.00
    $485.00 - $485.00
    Current price $485.00
  • Grinder Simplex Control Panel 120V LPD-B

    RJR Controls Control Panels
    Original price $260.00 - Original price $260.00
    Original price
    $260.00
    $260.00 - $260.00
    Current price $260.00
      2 Reviews

    Key Features Specs Warranty Documentation The pump operation is on demand with a two float set up. The two floats are Pump On/Off float and Hi...

    View full details
    Original price $260.00 - Original price $260.00
    Original price
    $260.00
    $260.00 - $260.00
    Current price $260.00
  • Tran N2 No Timer Septic Control Panel

    Tran Controls
    Original price $287.00 - Original price $287.00
    Original price
    $287.00
    $287.00 - $287.00
    Current price $287.00
      8 Reviews

    Key Features Specs Warranty If you are searching for a high-quality septic aerobic system control panel, the Tran N2 Septic Control Panel wi...

    View full details
    Original price $287.00 - Original price $287.00
    Original price
    $287.00
    $287.00 - $287.00
    Current price $287.00
  • Sewage Simplex Control Panel 220V LPD-G3F

    RJR Controls Control Panels
    Original price $485.00 - Original price $485.00
    Original price
    $485.00
    $485.00 - $485.00
    Current price $485.00
      1 Reviews

    Key Features Specs Warranty Documentation The pump operates on demand with a three float set up. The three floats are On float, Off float and ...

    View full details
    Original price $485.00 - Original price $485.00
    Original price
    $485.00
    $485.00 - $485.00
    Current price $485.00
  • Aerobic Septic Clock Timer Control Panel Dual Light ACP-PC-2A

    RJR Controls Control Panels
    Original price $410.00 - Original price $410.00
    Original price
    $410.00
    $410.00 - $410.00
    Current price $410.00
      1 Reviews

    Key Features Specs Warranty Documentation Aerobic Septic Clock Timer Control Panel Dual Light *Discontinued* This panel has been discontinued,...

    View full details
    Original price $410.00 - Original price $410.00
    Original price
    $410.00
    $410.00 - $410.00
    Current price $410.00
  • Aerobic Septic Control Panel Dual Light120V ACP-DMD-2A

    RJR Controls Control Panels
    Original price $375.00 - Original price $375.00
    Original price
    $375.00
    $375.00 - $375.00
    Current price $375.00
      1 Reviews

    Key Features Specs Warranty Documentation **THIS PANEL HAS BEEN REPLACED BY A DUAL ALARM/SINGLE LIGHT CONTROL PANEL** This panel has been repl...

    View full details
    Original price $375.00 - Original price $375.00
    Original price
    $375.00
    $375.00 - $375.00
    Current price $375.00
  • SP-4000 Septic Tank Alarm With Float

    SP
    Original price $185.00 - Original price $185.00
    Original price
    $185.00
    $185.00 - $185.00
    Current price $185.00
      1 Reviews

    Key Features Specs Warranty If you have an outdoor septic tank, and have been searching for a suitable alarm, the SP-400 Septic Tank Alarm i...

    View full details
    Original price $185.00 - Original price $185.00
    Original price
    $185.00
    $185.00 - $185.00
    Current price $185.00
  • Sewage Simplex Dosing Timer Control Panel 120V LPD-DT

    RJR Controls Control Panels
    Original price $635.00 - Original price $635.00
    Original price
    $635.00
    $635.00 - $635.00
    Current price $635.00

    Key Features Specs Warranty Documentation The pump operation is controlled by an Omron H3CRF8 repeat cycle timer. With this timer, the pump ca...

    View full details
    Original price $635.00 - Original price $635.00
    Original price
    $635.00
    $635.00 - $635.00
    Current price $635.00

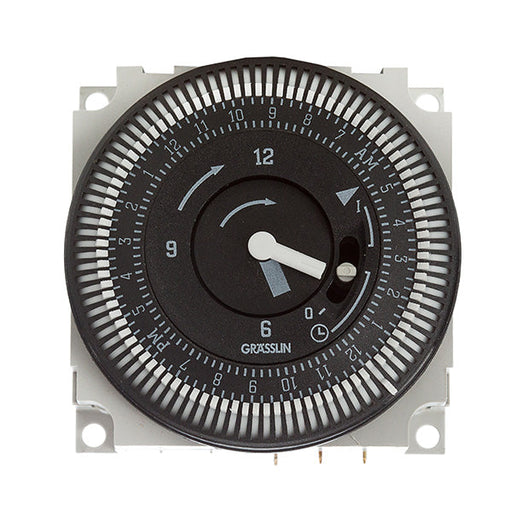

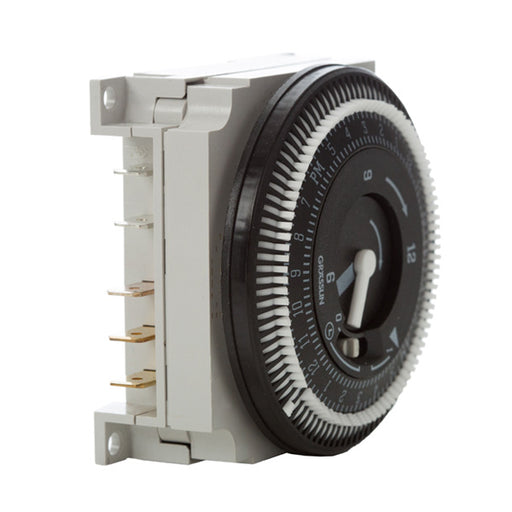

  • Grasslin 24HR Septic Timer with Battery Backup

    Unknown Vendor
    Original price $67.00 - Original price $67.00
    Original price
    $67.00
    $67.00 - $67.00
    Current price $67.00

    Key Features Specs Warranty The time controls what time The most common application is to control the time when the sprinklers come on as man...

    View full details
    Original price $67.00 - Original price $67.00
    Original price
    $67.00
    $67.00 - $67.00
    Current price $67.00
    Sold out

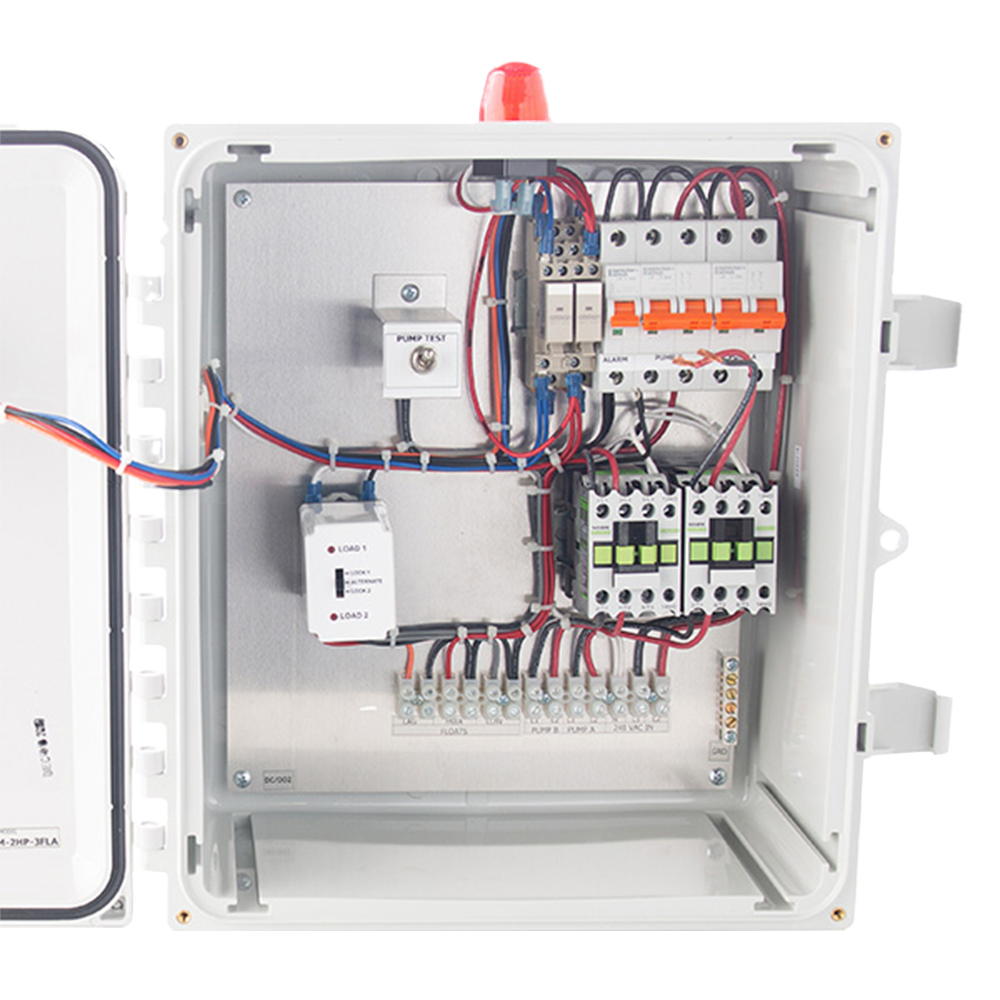

  • Sewage Duplex Control Panel 220V/120V ALTDM2HPDV

    RJR Controls Control Panels
    Original price $945.00 - Original price $945.00
    Original price
    $945.00
    $945.00 - $945.00
    Current price $945.00
      1 Reviews

    Key Features Specs Warranty Documentation The ALTDM2HPDV is designed to operate a duplex lift station with alarm. This control can be used for...

    View full details
    Original price $945.00 - Original price $945.00
    Original price
    $945.00
    $945.00 - $945.00
    Current price $945.00
  • Aerobic Septic Clock Timer Control Panel E4L

    RJR Controls Control Panels
    Original price $410.00 - Original price $410.00
    Original price
    $410.00
    $410.00 - $410.00
    Current price $410.00

    Key Features Specs Warranty The E4L replaces the discontinued ACP-PC-2A. Aerobic Treatment Units (ATUs) typically have a couple devices that...

    View full details
    Original price $410.00 - Original price $410.00
    Original price
    $410.00
    $410.00 - $410.00
    Current price $410.00
  • Economy Simplex Control Panel 220V LPD-B2

    RJR Controls Control Panels
    Original price $350.00 - Original price $350.00
    Original price
    $350.00
    $350.00 - $350.00
    Current price $350.00

    Key Features Specs Warranty The pump operation is on demand with a two float set up. The two floats are Pump On/Off float and High Water Ala...

    View full details
    Original price $350.00 - Original price $350.00
    Original price
    $350.00
    $350.00 - $350.00
    Current price $350.00
  • Jet Compatible Aerator Septic Control Panel JAOCS

    RJR Controls Control Panels
    Original price $415.00 - Original price $415.00
    Original price
    $415.00
    $415.00 - $415.00
    Current price $415.00

    Key Features Specs Warranty This control panel will power one shaft aerator. There is no timer to operate the aerator in this control. The a...

    View full details
    Original price $415.00 - Original price $415.00
    Original price
    $415.00
    $415.00 - $415.00
    Current price $415.00

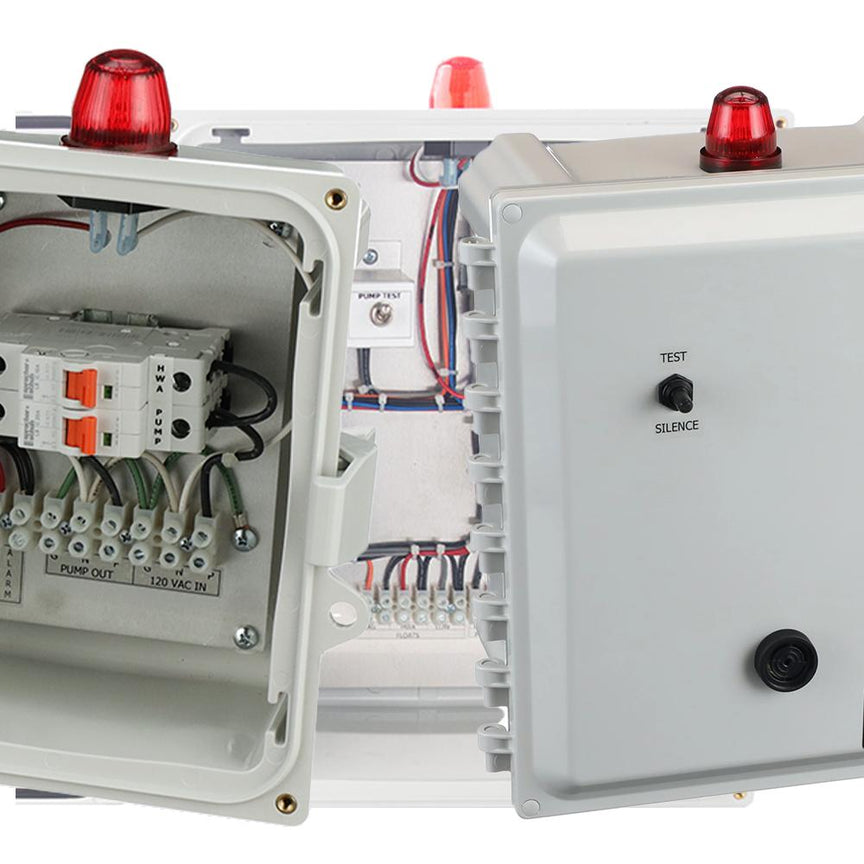

Septic Control Panels

Overview

Control panels are designed to monitor every part of your treatment system, also offering you complete control over it for regular usage or maintenance purposes. There are a few key parts that make up the system as a whole.

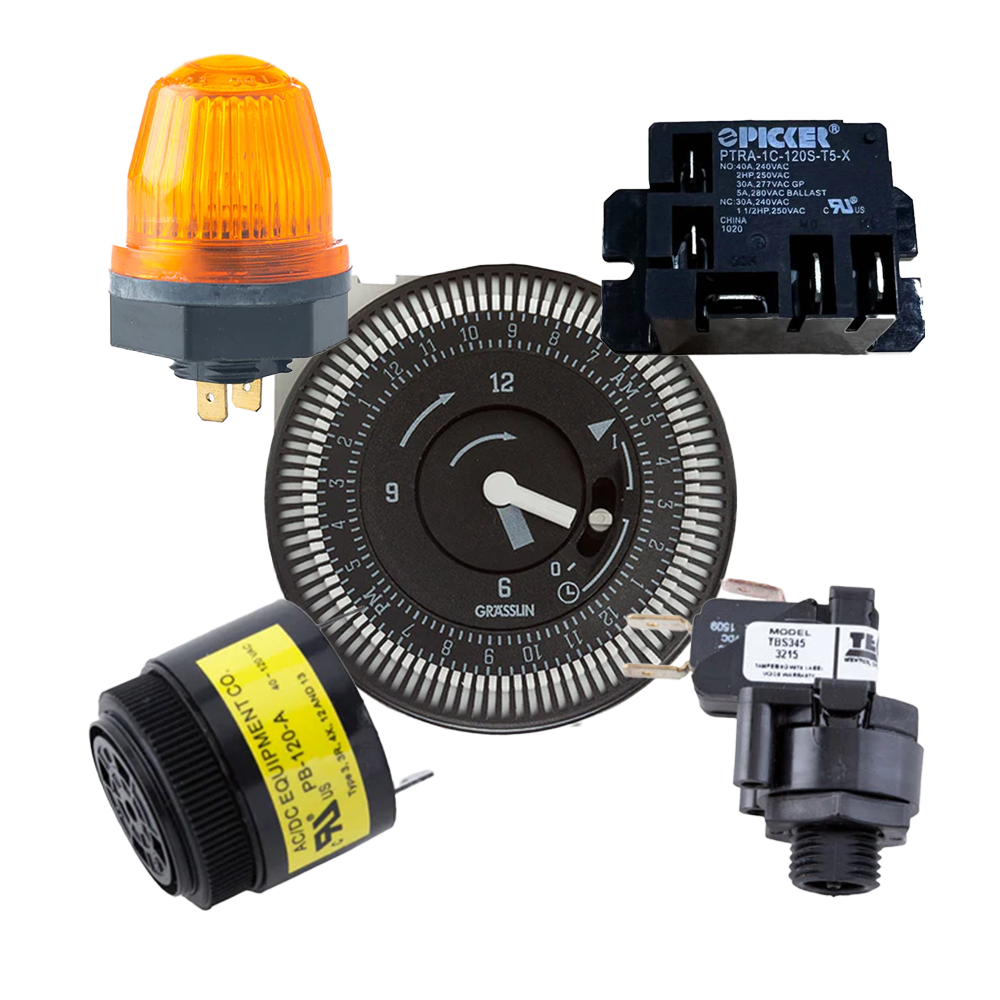

Control Panels

The panels themselves house the controls over your septic system. These include power for the air and water pumps as well as pump failure indicators. Other types of pump systems may require simplex or duplex control panels, which monitor a set of one or two submersible pumps. For these systems, an alarm will notify you in the event of high water or a tripped fuse. There are several time-dosing control panels that regulate water usage during peak times. They use cycle timers to distribute water across both primary and secondary systems.



What is a control panel?

A control panel is basically a breaker box with a few extra features. Control panels will typically be used to control water/sewage pumps and air compressors. Control panels will often have an alarm attached to them to indicate if a problem has developed. The most common places you will find control panels will be in lift stations or on septic systems.

Septic System Control Panels

Septic systems are becoming more complicated. There has become a need for a device to manage all of the electrical components. This is where the control panel comes into play. The control panel is essentially a breaker box for a septic system. There will usually be a few electrical circuits in a septic system, and the control box will help the user control and monitor those circuits.

Aerobic control panels are commonly found on aerobic septic systems. These systems need to keep track of air pressure and water level in the septic system. This is accomplished by using a pressure switch and float switches. The pressure switch will trigger an alarm if there is a loss in air pressure. The float switches are used to turn on and off an effluent pump and an alarm. The diagram below will show a basic setup for an aerobic control panel.

Basic aerobic control panel connections

  1. Effluent Pump. The effluent pump is used to remove wastewater from the system.
  2. On/off float switch for pump. This float switch turns the effluent pump on and off.
  3. Air compressor. The air compressor injects air into the system for aerobic bacteria.
  4. Float switch for high water alarm. This float switch will trigger an alarm if the water level gets too high.
  5. Pressure switch for low presser alarm. The pressure switch will turn on an alarm if air pressure drops too low.



There will be some control panels that use timers. This is because some septic systems use sprinklers to disperse the wastewater. Homeowners that have sprinkler systems may not want their sprinklers spraying them while they are in their yard. A timer in a control panel will tell the pump when it can activate. This allows the homeowner to make sure that the sprinklers only activate during times that they are not in their yard.

 A control panel with a timer will usually use more float switches than a control panel without a timer. This is because there will usually be an override float switch in a timed system. This allows the systems to know if too much fluid has built up during non-pumping hours. The pump will activate at any time the override float switch activates. The figure below shows the basic setup for a control panel with a timer.

Basic aerobic control panel with timer connections

  1. Pump. The effluent pump is used to remove wastewater from the system.
  2. On/Off Float switch for pump. This float switch turns the effluent pump on and off.
  3. Air compressor. The air compressor injects air into the system for aerobic bacteria.
  4. Override Float. This float switch will override the timer and activate the pump.
  5. Float switch for high water alarm. This float switch will trigger an alarm if the water level gets too high.
  6. Pressure switch of low air pressure alarm. The pressure switch will turn on an alarm if the air pressure drops too low.

Lift station control panels

A lift station is a facility that collects water or wastewater and pumps it to another location. These stations are used when there is not enough of an incline for gravity to move the wastewater. This generally occurs when a neighborhood is far away from a wastewater treatment plant. Water or sewage pumps are used to move the wastewater the extra distance.

The lift station itself will have a collection tank for the wastewater and pumps to move the wastewater. The pumps will be attached to float switches or another device to track the fluid level. The float switches will activate the pumps when the wastewater reaches a particular height. This allows the pumps to turn themselves on and off without someone constantly watching them.

These float switches will work in the same way as float switches in septic system. There will often be a float switch to turn on and off the pump and another float for a high-water alarm. The figure below shows the basic configuration of a lift station control panel.

Basic Simplex control panel

  1. Pump. The effluent pump is used to remove wastewater from the system.
  2. On/Off float switch for pump. This float switch turns the pump on and off.
  3. Float switch for high water alarm. The pressure switch will turn on an alarm if air pressure drops too low.
