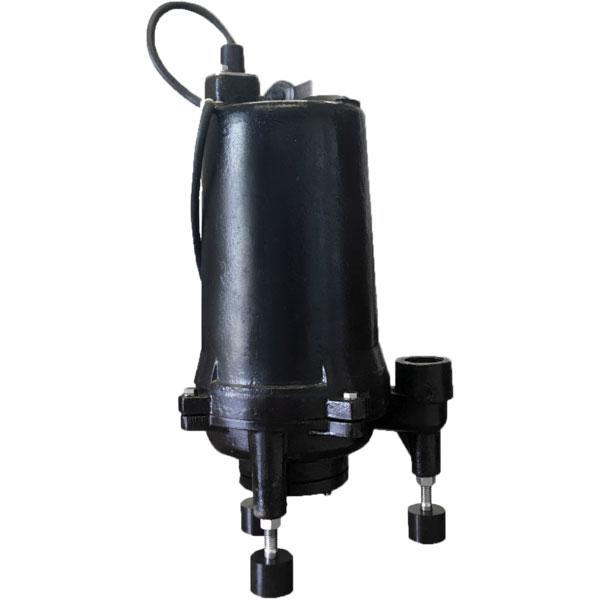

Ater 1012 1hp Grinder Pump
Description
The Ater 1012A 1HP single seal grinder Pump a single phase grinder pump designed with size and electrical capability in mind. Comes with internal capacitors. Manual operation, no float. Every pump is tested at the factory in the in water to Ensure that the Pump motor runs correctly and meets head pressure & flow requirements. SSPMA Certified / Certifies That Pump Meets Industry Standards Heads Up To 55’ TDH. 1-1/4" or 2" Discharge
PERFORMANCE
- Heads up to 55’ TDH
- Flows up to 42 GPM
MOTOR
- Internal capacitor start/capacitor
- Run 115v or 208-230v; oil filled motors with upper and lower ball bearings and thermal overload protection
- Constant bearing lubrication
- Maximum motor cooling
- Runs cooler and lasts longer
- Internal overload protection
- Quiet operation
- Fasteners and shaft made from rugged corrosion resistant stainless steel
SEAL DESIGN
- Single, Type 21 mechanical seal
IMPELLER DESIGN
- Non-clog style, cast-iron vortex impeller
- Designed to generate higher heads and reduce clogging by foreign materials
- Provides non-overloading performance
CUTTER ASSEMBLY
- 440 SST (56-60 Rockwell)
- 24,000 cuts per second and 1.5 million cuts a minute
- Designed to reduce over loading and clogging
POWER CORD
- Sealed entry quick disconnect power cords
- Prevents water from entering the motor housing through a cut cord
- Easy to replace in the field
- Available in lengths up to 100’
COMES WITH A PIGGYBACK FLOAT SWITCH
*THIS PRODUCT IS A DROP SHIP ONLY PRODUCT- WE DO NOT STOCK THESE IN OUR WAREHOUSE, SO SHIPMENT COULD TAKE UP TO 2 WEEKS, FREIGHT IS ALSO ADDITIONAL ON THESE LARGER GRINDER PUMPS, SO A CUSTOMER SERVICE REPRESENTATIVE WILL CONTACT YOU FOR ADDITIONAL SHIPPING COST ONCE FREIGHT IS SCHEDULED*
p/n: CHA-GRI-M101217
