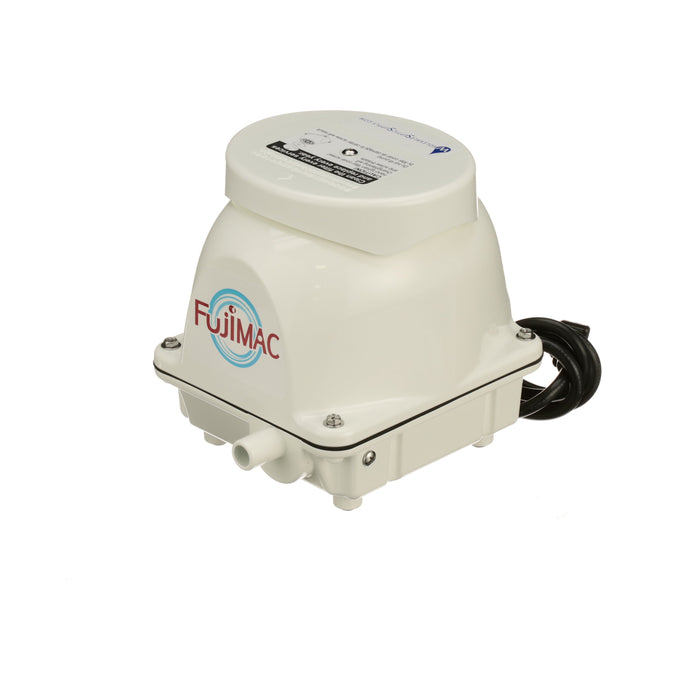

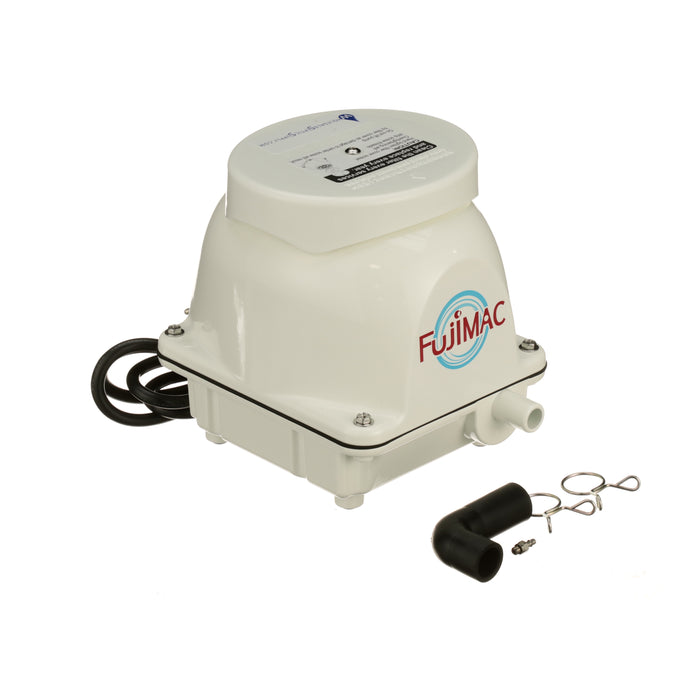

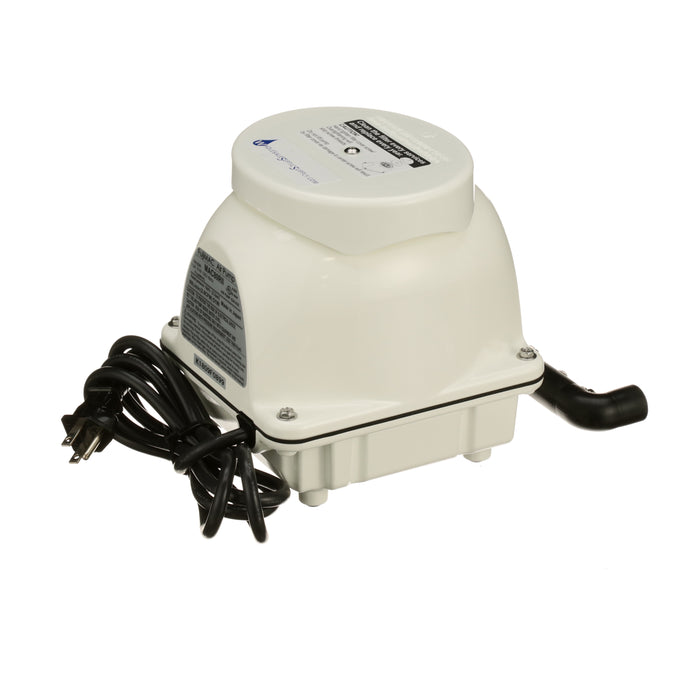

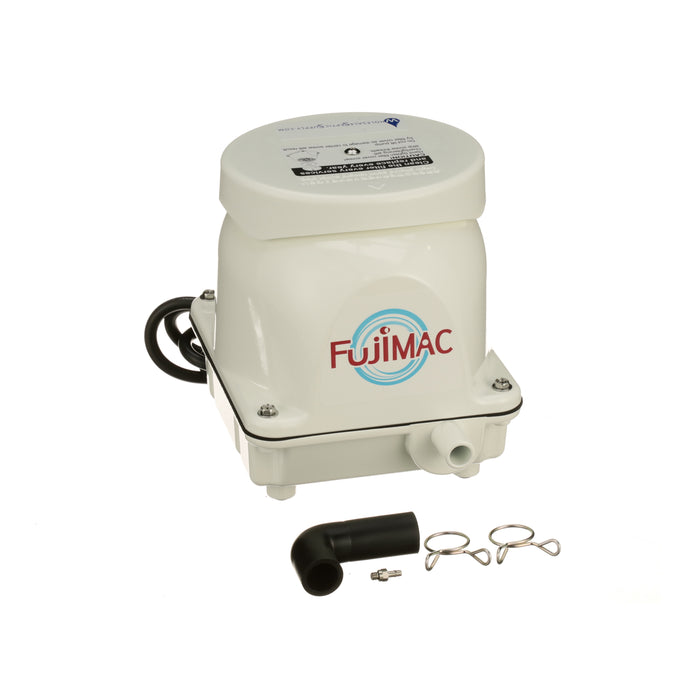

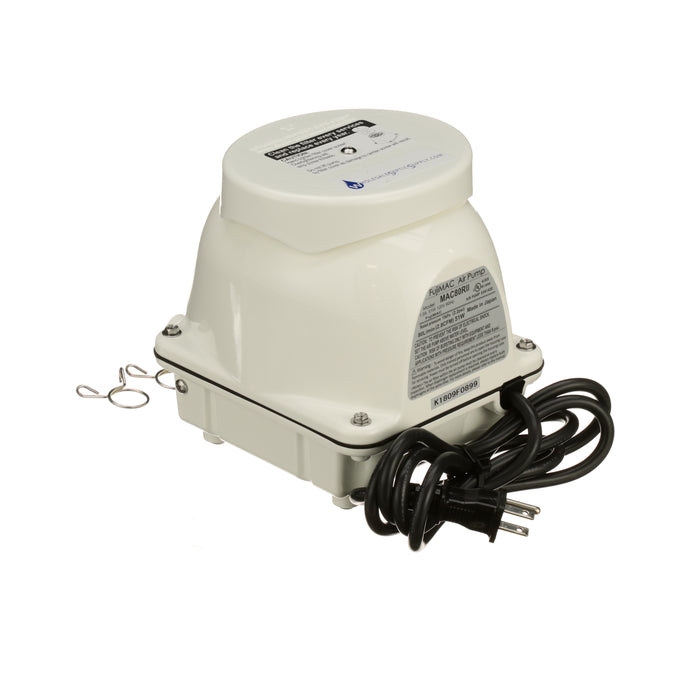

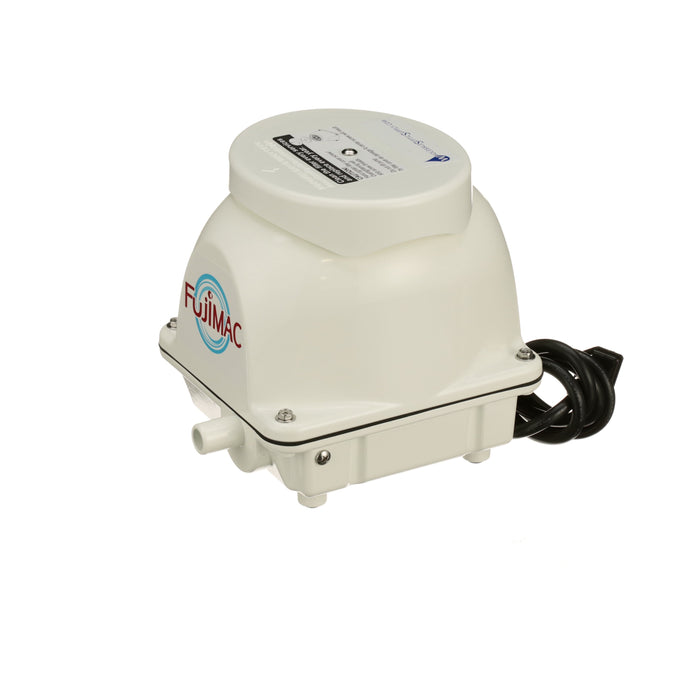

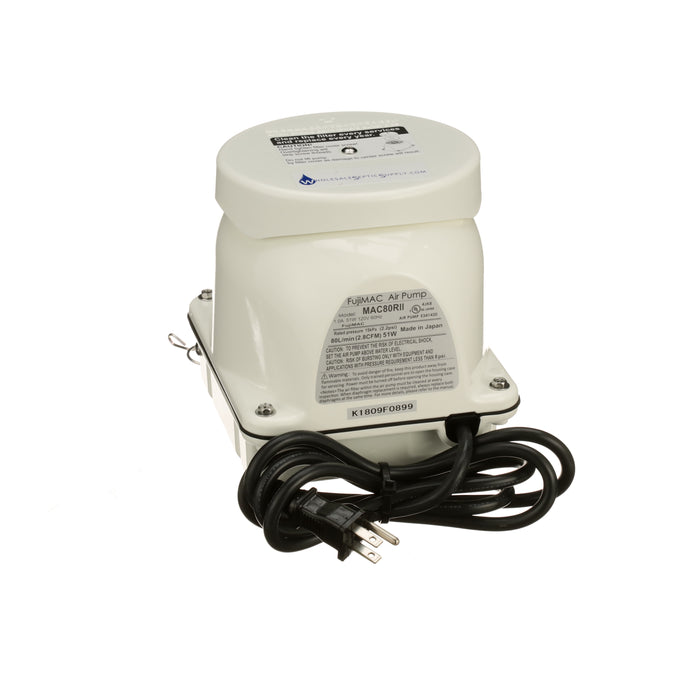

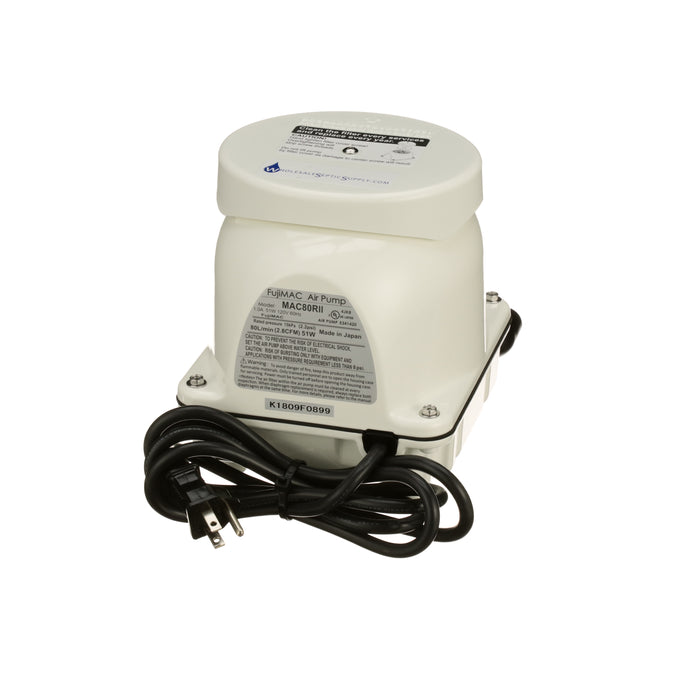

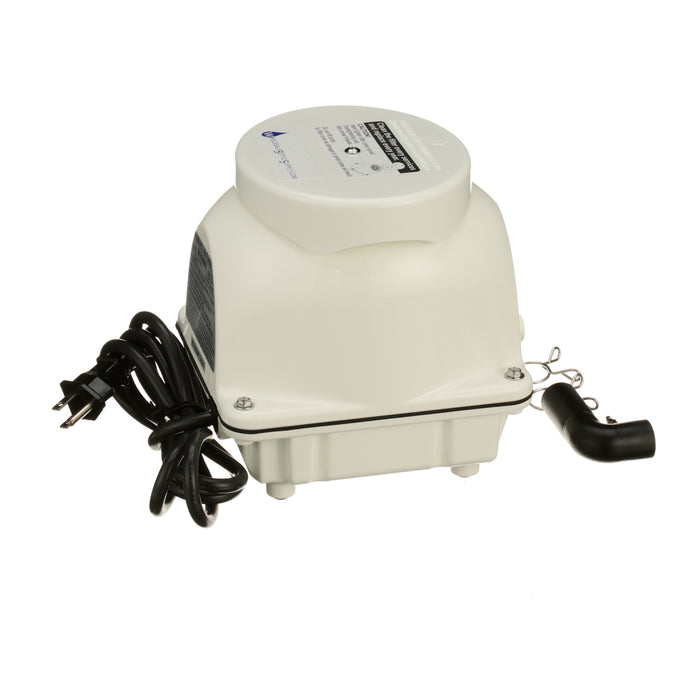

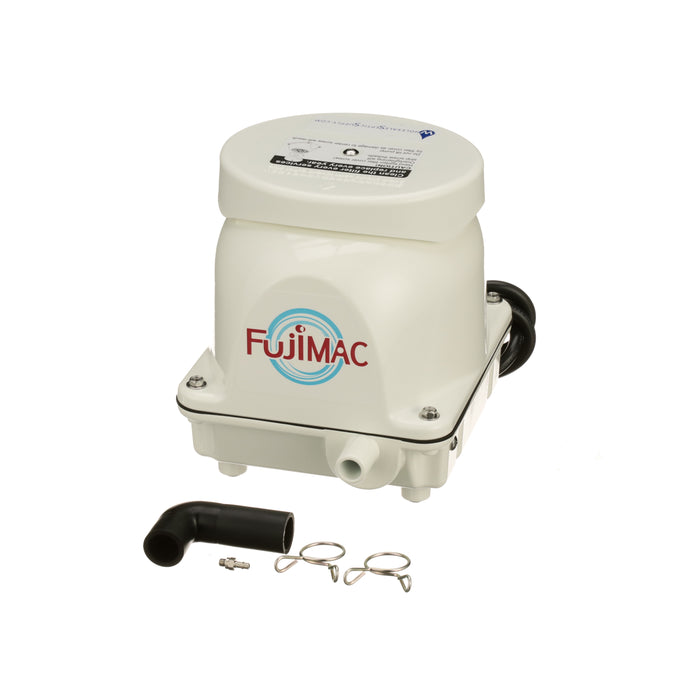

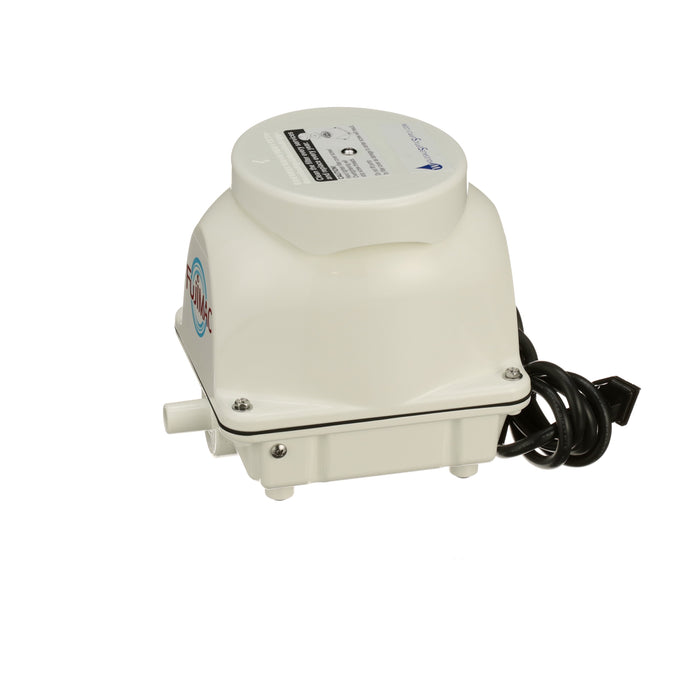

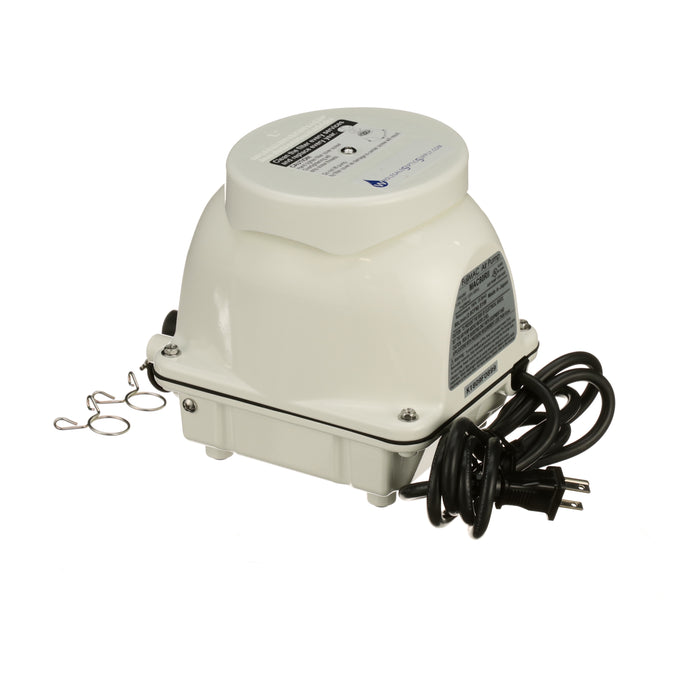

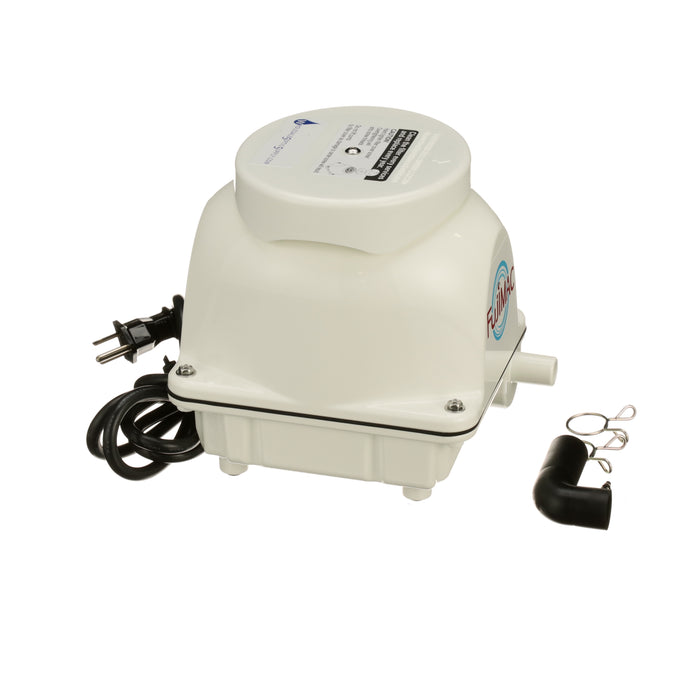

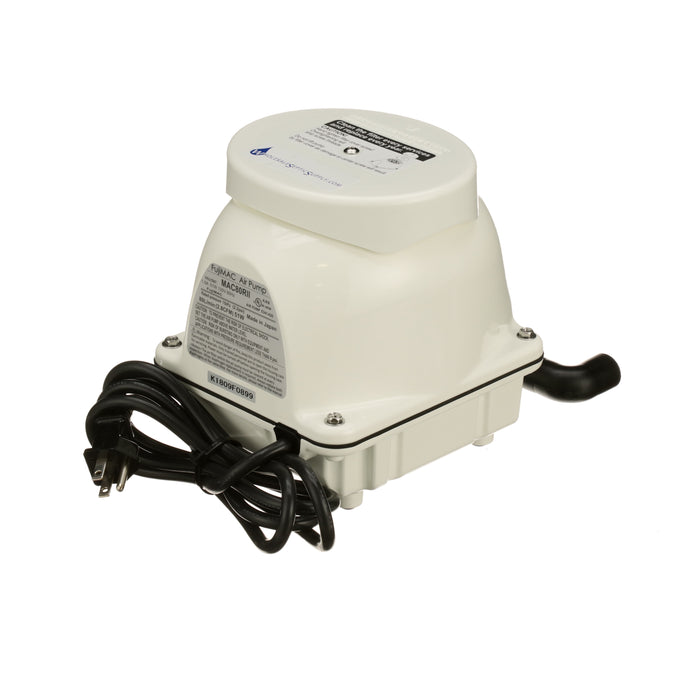

Fuji Mac 80R2 Septic Air Pump

Fuji Mac 80R2 Septic Air Pump

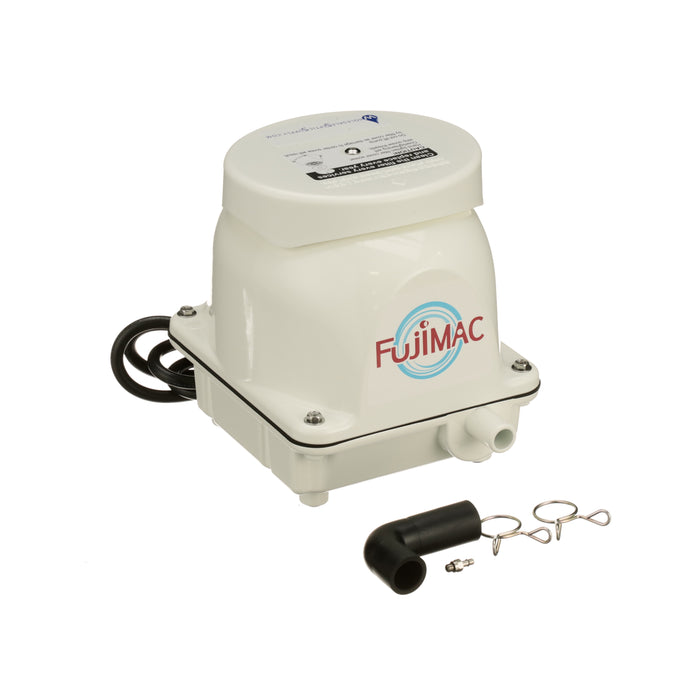

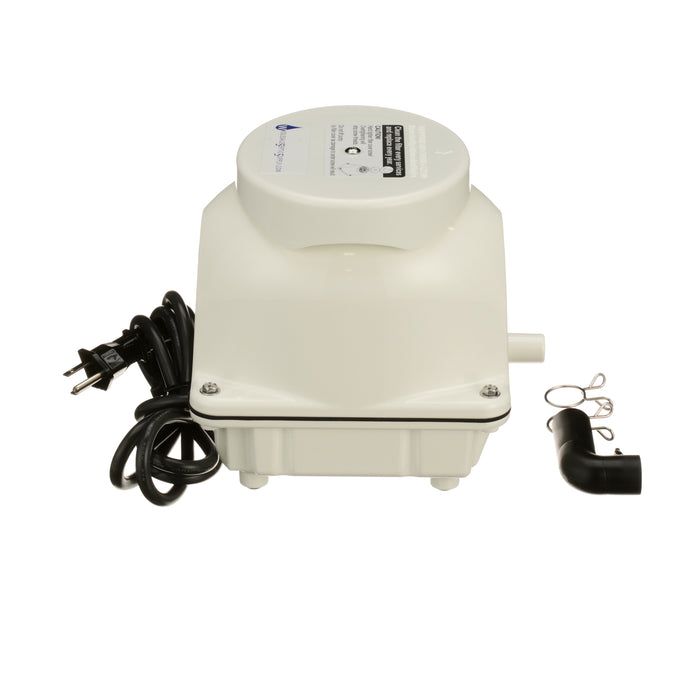

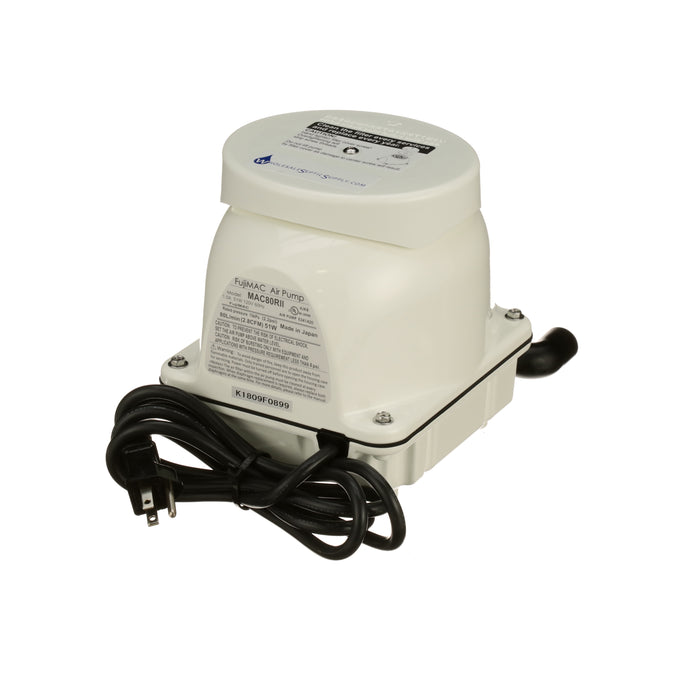

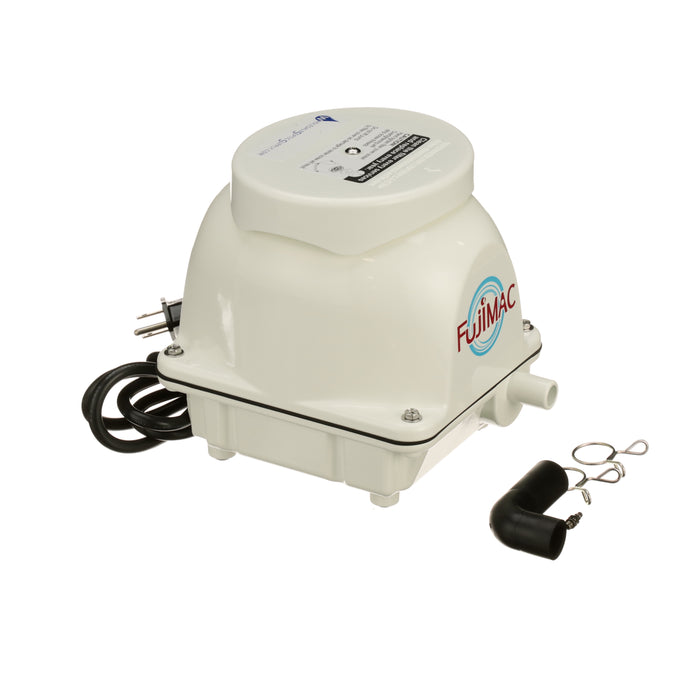

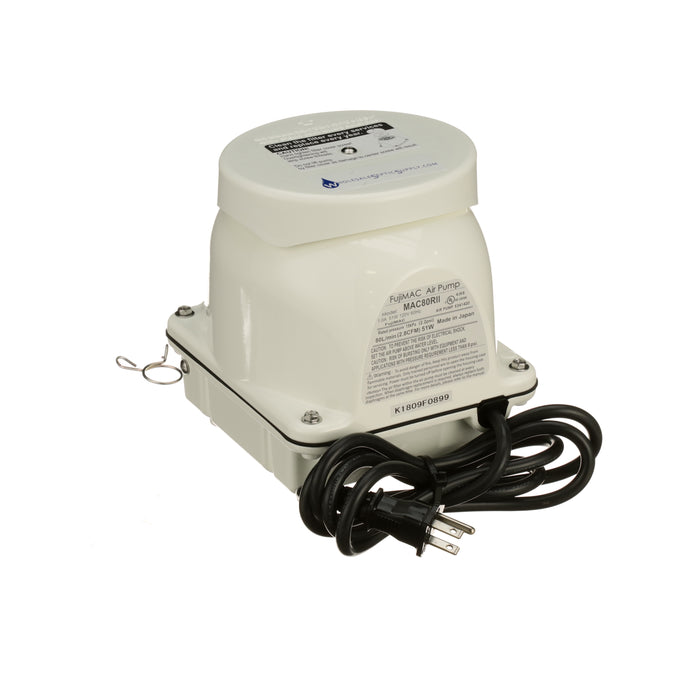

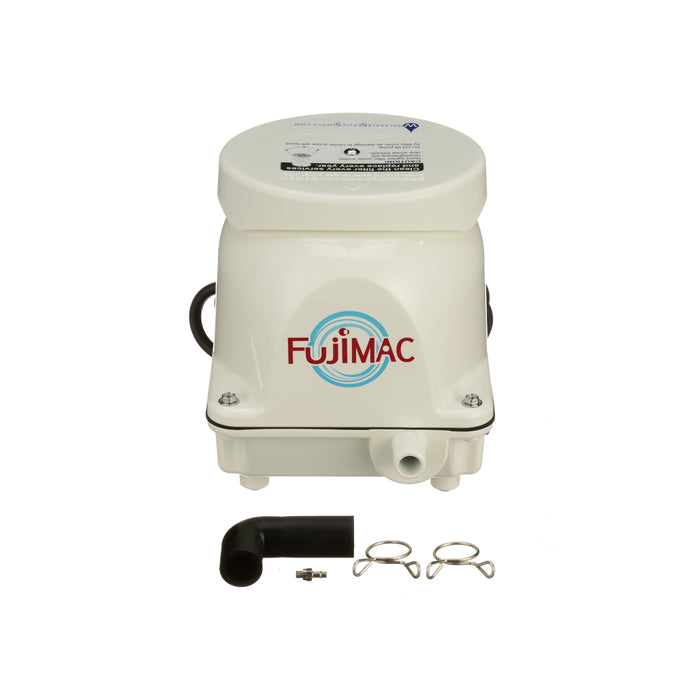

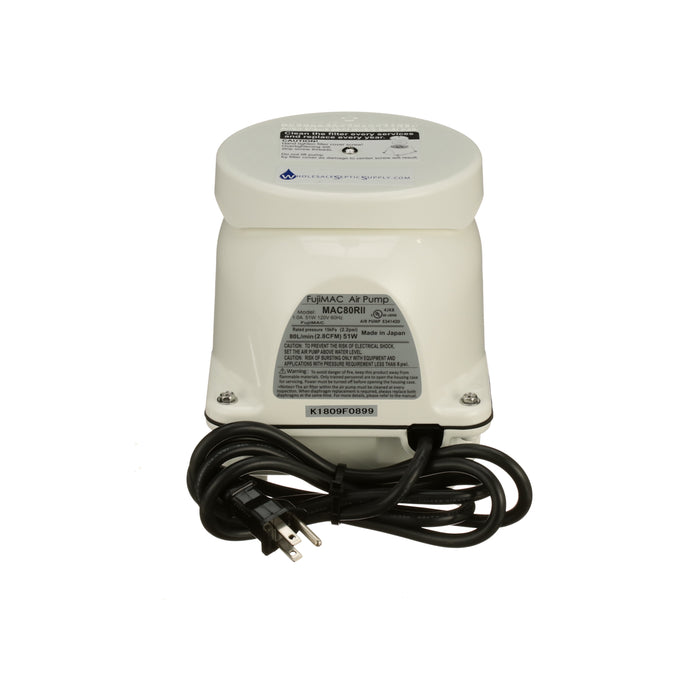

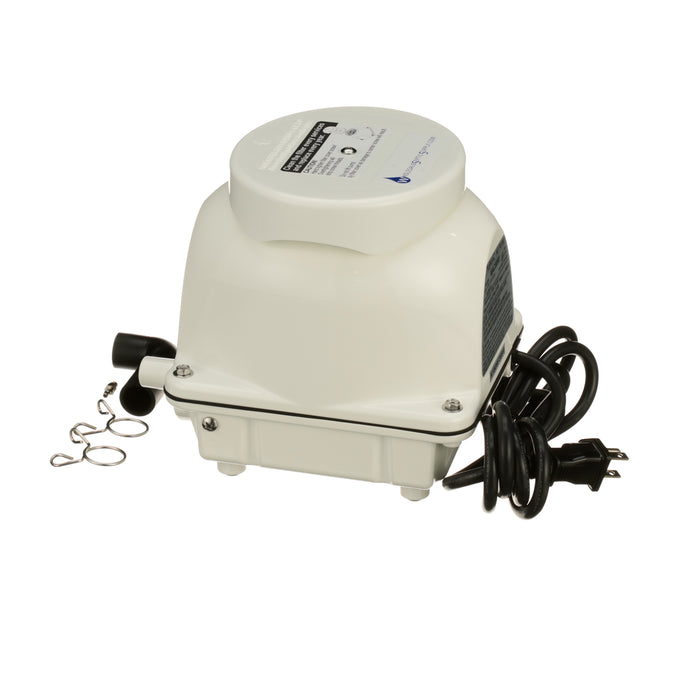

The Fuji mac 80r2 septic air pump aerator is the most energy efficient septic pump on the market using only 1.0 amp and 52 watts. This pump costs approximately $3 monthly to run. It is amazing.  It puts out 80 l.p.m of air at 2.2 psi matching all o.e.m specs. It has an unmatched 2  year manufacturer  warranty the best in the industry. With unmatched reliability and longevity It is the air pump of choice all over the world for aerobic treatment units. it is also the quietest pump available today at 30 db. Its running temperature is 70f greatly reducing wear of the diaphragm parts. Fuji mac set a new industry benchmark  with this pump.

QUESTIONS & ANSWERS

Ask a Question
  • What are the external dimensions of this pump. I would like to make sure it will fit under the concrete cover we have.

    The pump it self is 7x6x7 1/ 2 in dimensions. Its smaller than old model septic air pumps so im sure it will fit under the cover.

  • Can it be rebuilt and if so how much is the rebuild kit?

    Yes, the Fuji mac septic air pump has a rebuild kit they are 75 dollars. The pump shouldn't have to be rebuilt for about five to six years.

  • What is the max continuous operating pressure

    2.2 at 80 lpm the fuji mac 80r2 at 0 lpm it 6 psi.

  • Re: the FujiMac 80R2 . . . is there an alarm or a capability of adding one?

    You can add an alarm if you want we are developing an alarm model right now but it needs to go through testing before we release it to market.

  • Would you foresee any problems using the FujiMac 80R2 with a 500 gal/day Mo-Dad system?

    No that is what this aerator is designed for 500-600 GPD aerobic septic systems.

  • Does it have a small port for an alarm tube?

    Yes it does have the port for the alarm. We send out the stainless steel barb fitting that would replace the set screw that comes with it from factory.

  • Can it be hardwired to the control box?

    Yes the Fujimac 80R2 can be hardwired. It comes with standard plug which can be cut and hardwired to your control panel.

  • What size tubing does this take? Is it a standard USA 3 prong plug? Thanks!

     5/8 tubing like any other pump and USA 3 prong plug

  • I want to use this to aerate my fish pond . how deep can I put it under water and still work 6, 8 , 10 feet? what is the maxium depth it can be put and still work can I run to line off it?

    I would't go past 6 feet you start losing performance.

  • How will it withstand south Louisiana temperatures? Is the mechanism different from others on the market?

    It’s a rare earth magnet pump so it runs cooler. They stand up very well in Texas and the environmental conditions are very similar.

  • How will it withstand temperatures in south Louisiana?

    This will do just fine in Louisiana heat they do great in the Houston area with similar heat.
