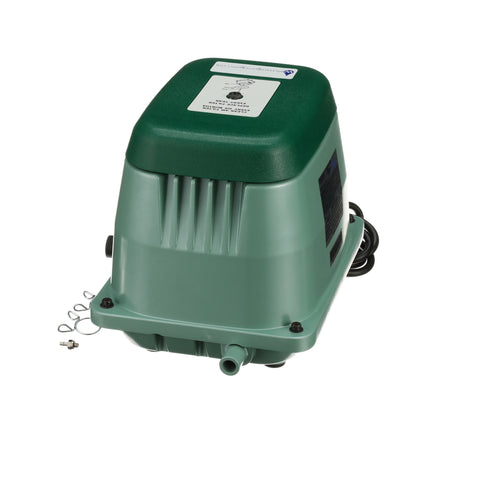

Hiblow HP-100 Septic Air Pump

Hiblow HP-100 Septic Air Pump

Hiblow HP-100 Septic Air Pump


Since 2002, Hiblow USA has aimed to provide multiple growing industries with high-quality air pumps. From healthcare to wastewater treatment, Hiblow pumps are very versatile and can been seen working all over the world. Hiblow pumps are built to deliver cleaner energy, purer water, and safer food to the people who need it most. Even when your pump malfunctions, Hiblow has the reliable parts you need to get your system running efficiently once again.

If you’re looking for a reliable septic system, consider the Hiblow HP Linear Septic Air Pumps. With the help of our Hiblow aerators, wastewater systems serving homes and businesses are ensuring that only treated water is entering the environment. Aquaculture systems, powered by our air pumps, are working to feed a growing population. Our air and hydrogen blowers can be found inside fuel cells, helping to provide cleaner electricity and more efficient backup power.

The Hiblow HP-100 Septic Air Pump tends to have a diaphragm life of 2-3 years, so if your system has temporarily stopped working, consider purchasing a rebuild kit before spending unnecessary money on a brand new air pump.

The Hiblow HP-100 fits most 600 & 750 Gallon Per Day units as well as several other medium aerobic septic systems.

You (the customer) are responsible for making sure you are following all applicable laws and regulations in your area before replacing your septic air pump yourself.



  • 1.2 Amps and 100 Watts are required for this product
  • This product’s ideal operating pressure is 2.57 PSI
  • The highest pressure at which this product can operate continuously is 3.6 PSI
  • Ideal airflow through the outlet of this product is 100 liters per minute
  • The maximum airflow through the outlet of this product is 110 liters per minute
  • The noise level of this product will be about the average noise level within a home.
  • Includes a pressure tap location for external alarm sensor
  • Oil free operation
  • Sound dampening technology




    Rated Voltage 120 VAC

    Current 1.2 A

    Power supply Frequency 60 Hz

    Power Consumption 100 W

    Rated Loading Pressure 2.57 PSI

    Maximum Continuous Operating Pressure 3.6 PSI

    Maximum Airflow 110 L / min 3.8 cfm

    Airflow Volume (@ rated pressure) 100 L / min 3.5 cfm

    Noise Level 38 dBA

    Weight 18.7 lbs.

    Length 10.87 In

    Width 7.87 In

    Height 8.74 In

    P/N: 77-989J-A3L1


    All Hiblow Aerators come with a 2 year warranty



    About the product

    The Hiblow HP-100 septic air pump design includes improvements in the diaphragm for longer lasting performance. The diaphragm is bonded by metal with a Teflon protection in between to slow wearing of the EPDM material.Hiblow also puts two places the diaphragm is held by the magnet reducing the stress points on it and giving it longer service life.
