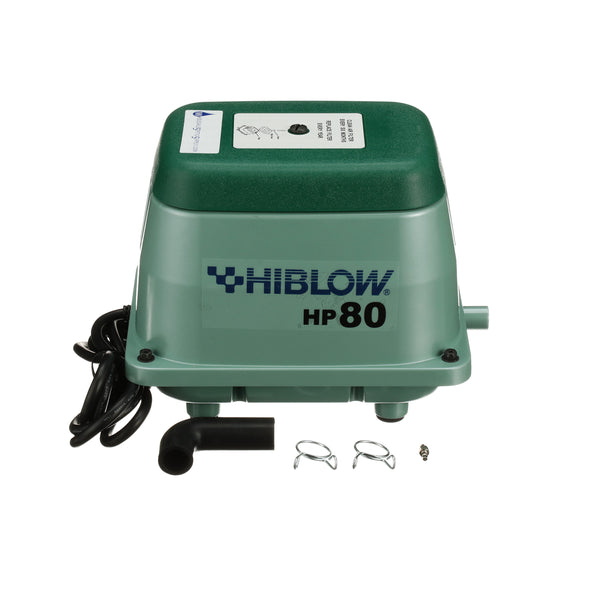

The Hiblow HP-80 features clean oil-less air, boasts long operational life, offers extremely quiet operation, low vibration, low power consumption, and requires low starting current.If your Hiblow HP series pump won’t turn on when first plugged in, it may have been bumped during shipping, which may have activated the safety slide switch to the position where it deactivates the electric motor. Please refer to the owner’s manual for instructions on how to reset the safety slide switch; you can find an electronic copy of the owner’s manual on the support tab of the Hiblow website.
Hiblow pumps will only operate on alternating current (AC) in order for the shuttle rod to achieve the correct back and forth motion, which creates the necessary pressure or vacuum for proper functioning. If you must operate a Hiblow pump from a DC source, an inverter would be required.
All Hiblow pumps can operate on either 50hz or 60hz. Do note that the pump’s performance will vary depending on the frequency. HIBLOW linear pumps are not dual voltage; please check the label for data on the correct voltage and only apply the indicate voltage to power the pump.
For best performance and longest life, your Hiblow pump should be installed in a cool, dry location out of direct sunlight. A garage, shed, or crawlspace are all optimal options. If you must install the Hiblow pump in an outside location, be sure the pump receives sufficient ventilation—in order to achieve the maximum operating life, keep any additional heat exposure to a minimum.You (the customer) are responsible for making sure you are following all applicable laws and regulations in your area before replacing your septic air pump yourself.
|Liters Per Min (LPM)
|PSI (max continuous Operating Pressure)
|Noise Level (dBA) @ 1 Meter
|Rated Loading Pressure
|Power Supply Frequency
2 Year Warranty Covering all Manufacturer Defects
3 Year Warranty on Electrical Components ONLY
