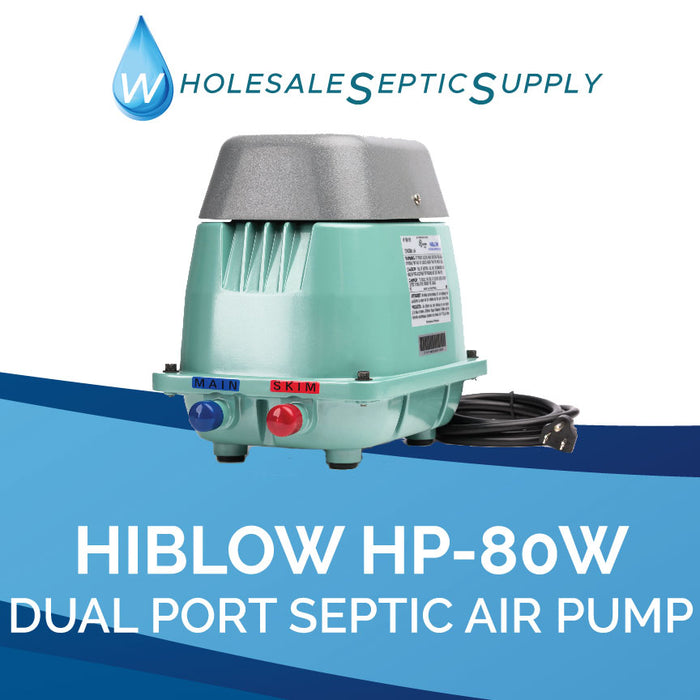

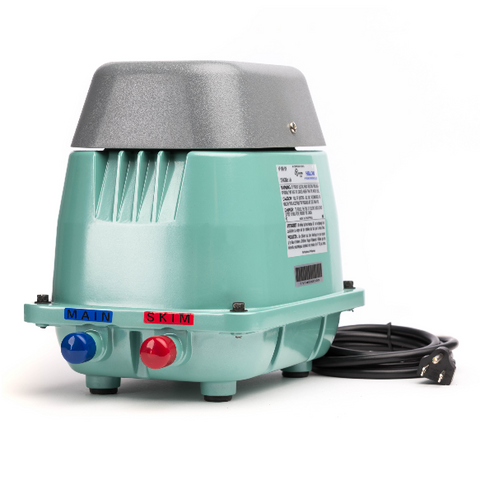

Hiblow HP-80w Dual Port Septic Air Pump
Overview
The Hiblow HP80W is a cost effective choice that can assist with aerobic septic systems. This aeration blower operates using a dual port aeration system. The two ports work simultaneously.
Each port operates with specific functionalities. One port serves as the primary aeration port. The second port operates as the second point of aeration and is located in the clarifying portion of the unit. The second port also directly connects to an airlift style skimmer. The dual processing aeration allows for a more effective waste sanitation process.Repairs for your Hiblow HP-80 will be inexpensive and easy to perform. Over 95% of all repairs will be able to be completed within as little as ten minutes. Having a unit with cost-effective repair options can save you hundreds because you won’t have to buy a new unit. When your pump is ready to be replaced a red dust will become present. Most of the time, however, you will just need to perform a quick minor repair.
With the dual port aeration process you will have a much cleaner and clearer effluent. The cleaner effluent can be safely discharged onto the septic drain (leach) field. The installation process for the Hiblow HP80W is easy and fast to do. The unit does not need any programming. To start using your Hiblow HP80W you will just need to hook it up. Any programming that takes place will be done automatically by the unit.
Details
- 1.6 Amps and 71 Watts are required for this product
- This product’s ideal operating pressure is 2.13 PSI
- The highest pressure at which this product can operate continuously is 3.6 PSI
- Ideal airflow through the outlet of this product is 80 liters per minute
- The maximum airflow through the outlet of this product is 120 liters per minute
- The noise level of this product will be about the average noise level within a home.
- Two outlets.
- Includes a pressure tap location for external alarm sensor
- Oil free operation
- Sound dampening technology
P/N: hp80wdp
Wholesale Septic Supply is offering a 3 year warranty that will cover any issues you may experience with the ELECTRICAL components of this aerator! You will also have a 2 year warranty that will cover the non-electrical components such as the diaphragms (bladders). This new upgraded warranty is effective for all Hiblow purchases made after January 1, 2021.
Specifications
Rated Voltage 120 VAC
Current 1.6 A
Power supply Frequency 60 Hz
Power Consumption 71 W
Rated Loading Pressure 2.13 PSI
Maximum Continuous Operating Pressure 3.6 PSI
Maximum Airflow 120 L / min 4.2 cfm
Airflow Volume (@ rated pressure) 80 L / min 2.8 cfm
Noise Level 36 dBA
Weight 15.4 lbs.
Length 10.08 In
Width 7.09 In
Height 7.72 In
