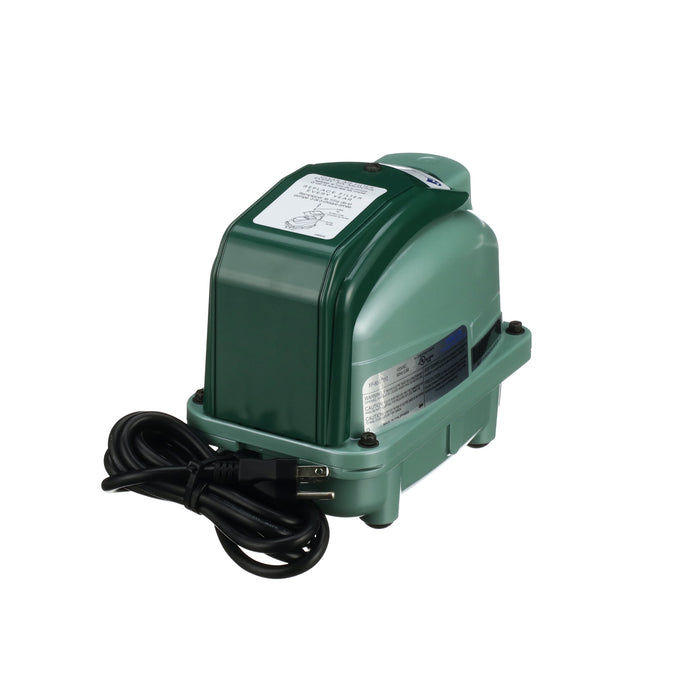

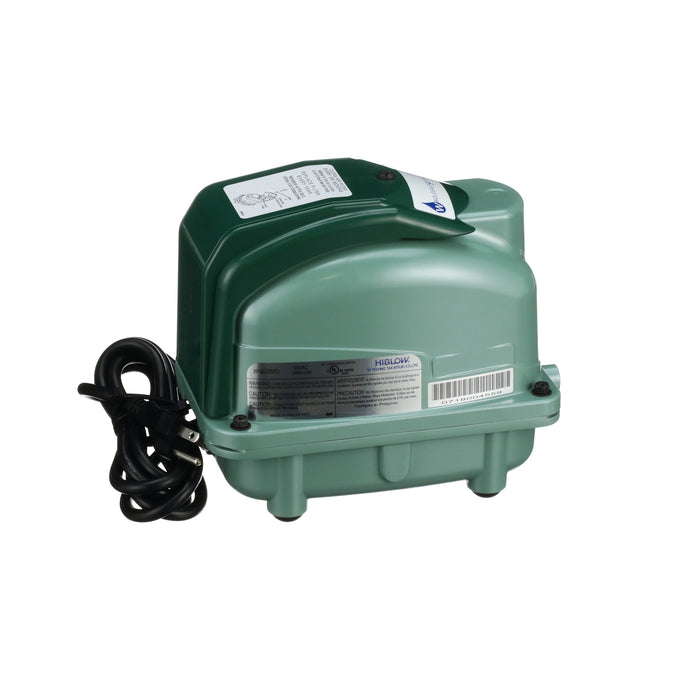

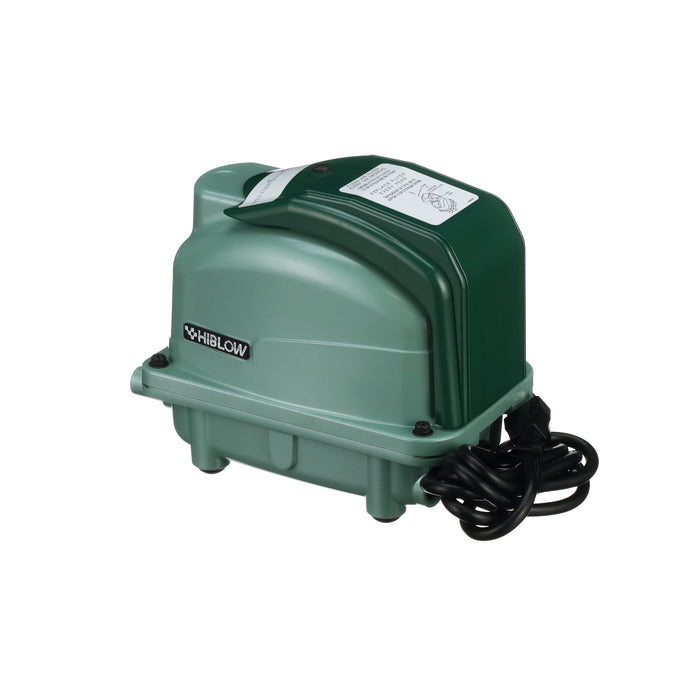

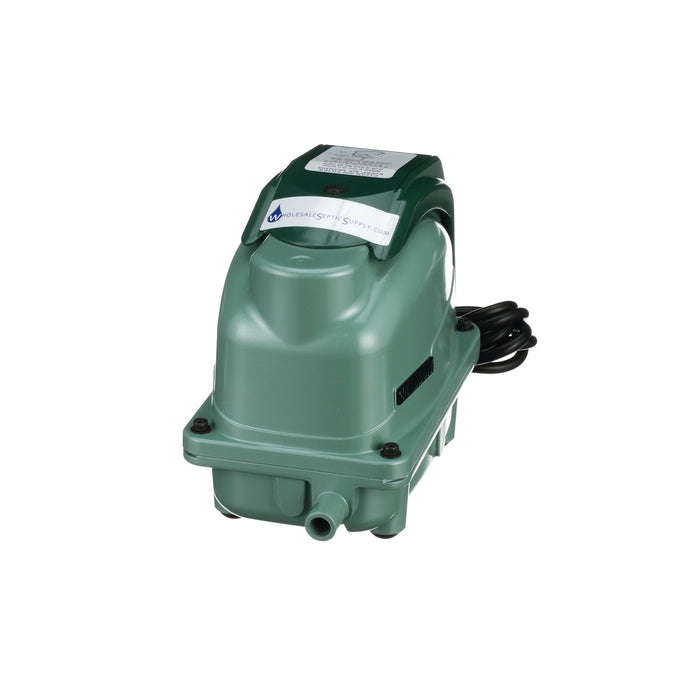

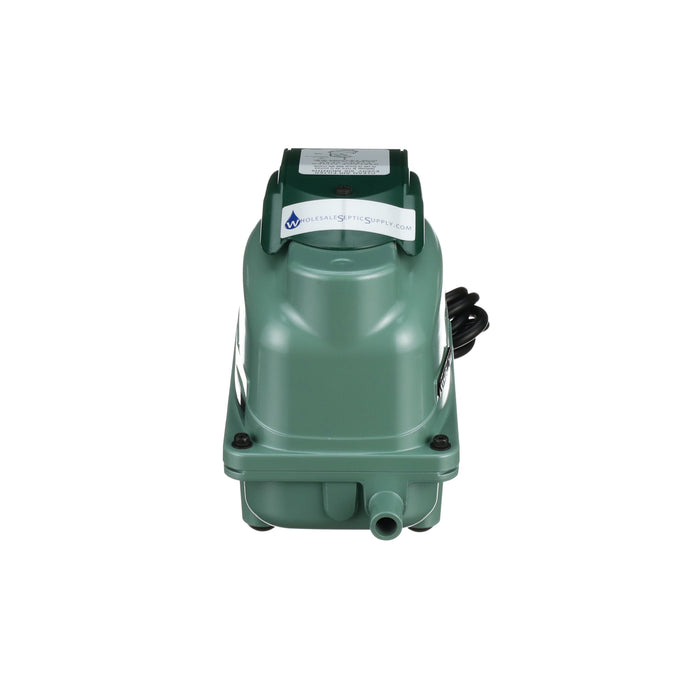

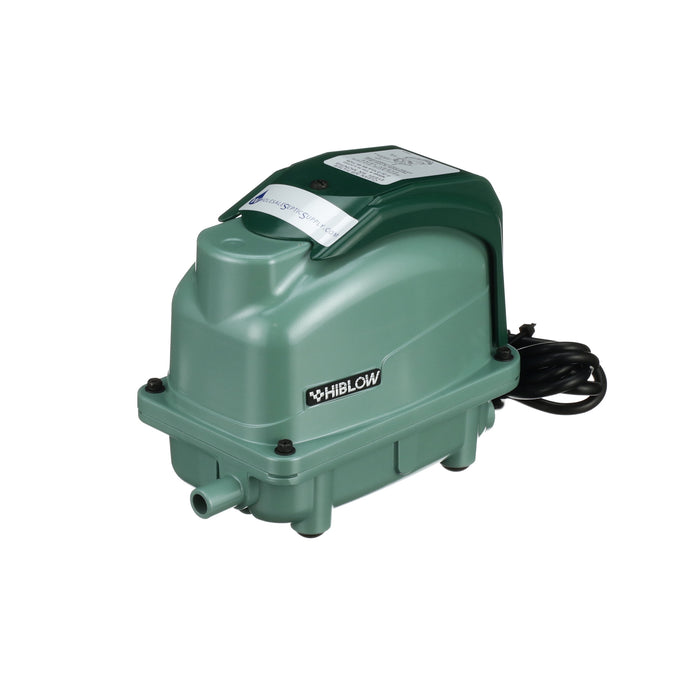

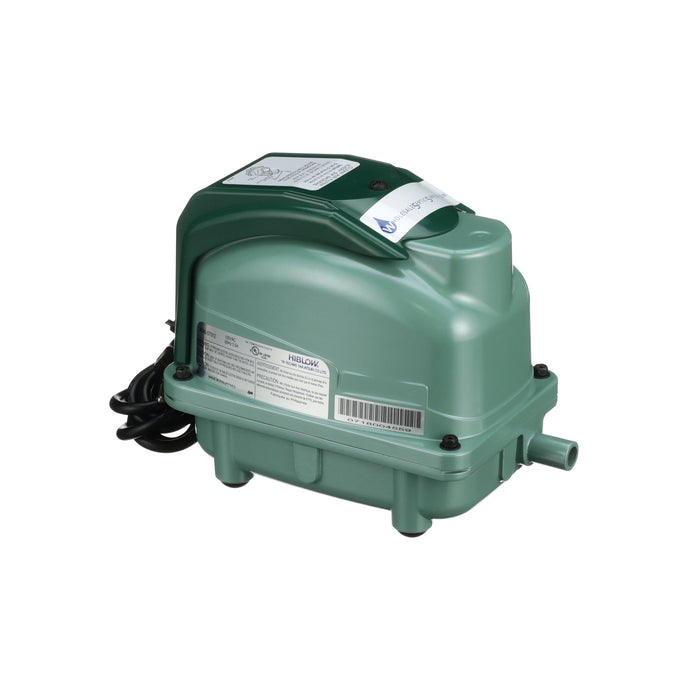

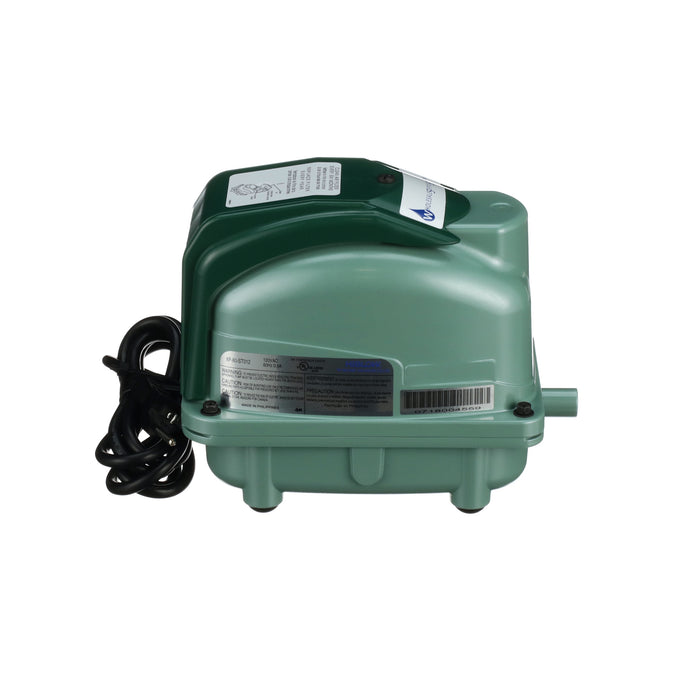

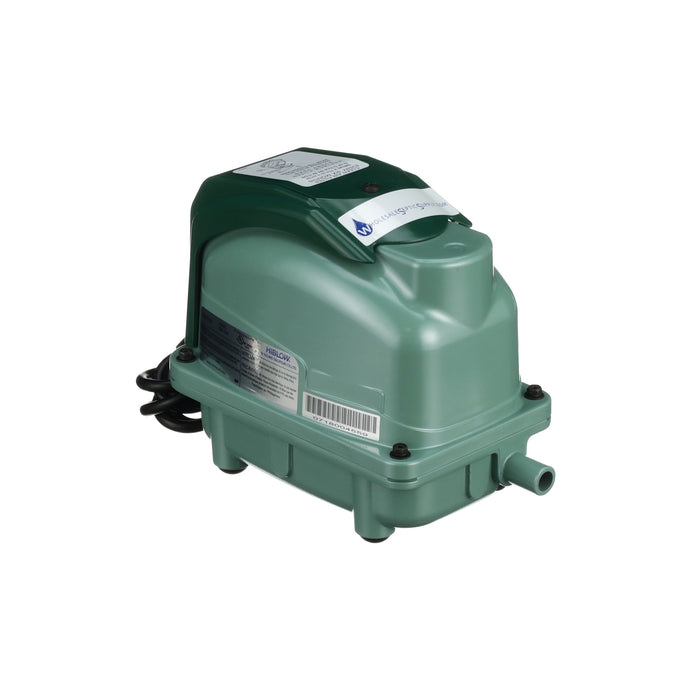

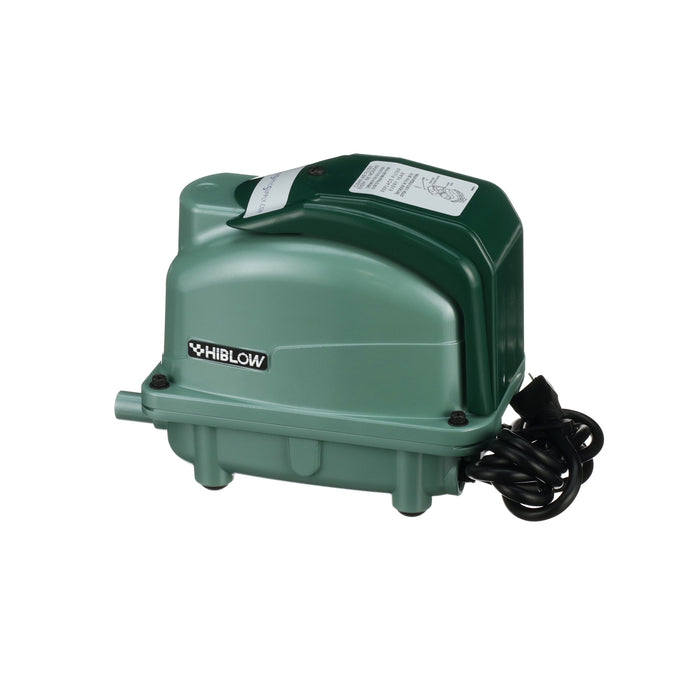

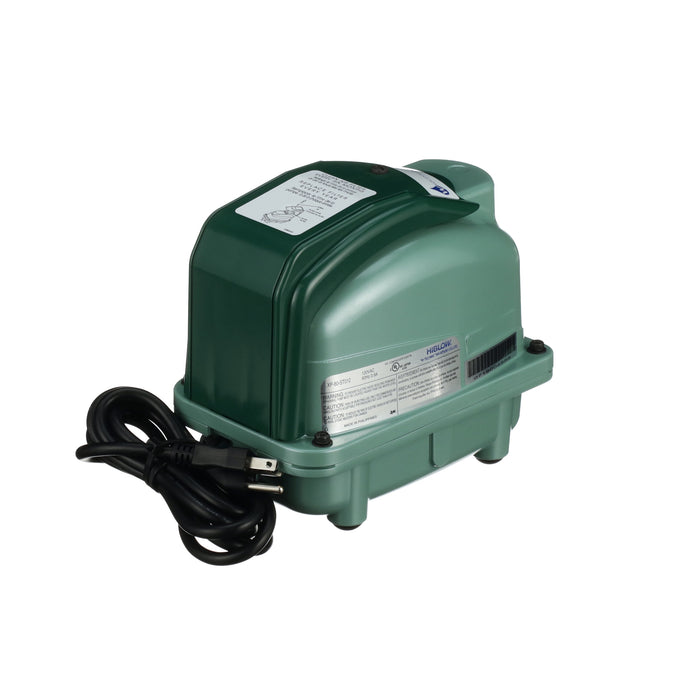

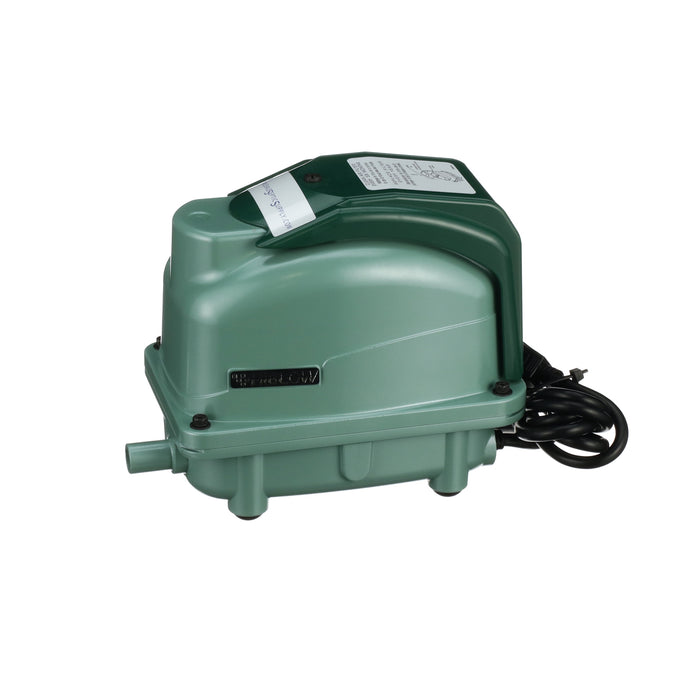

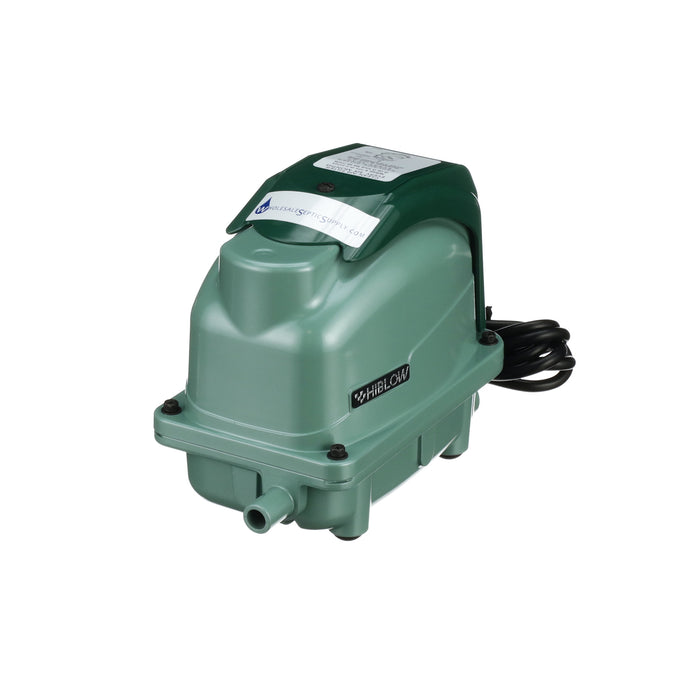

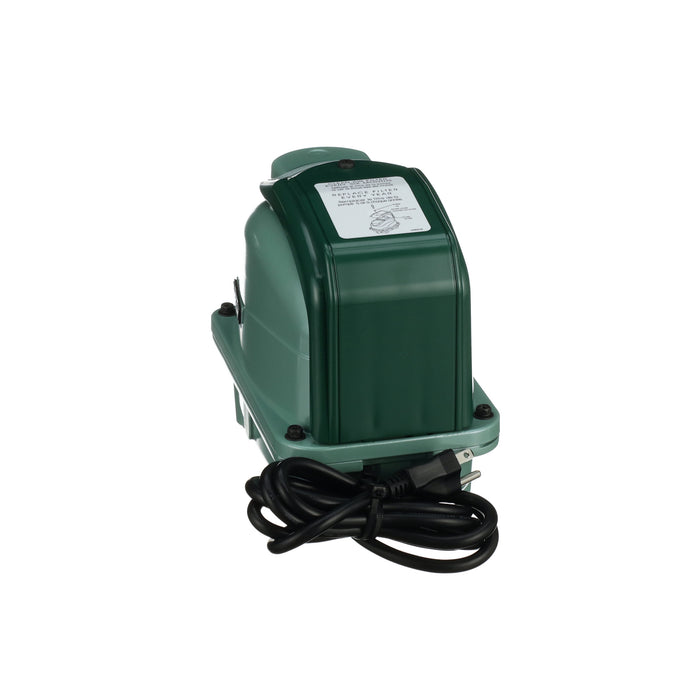

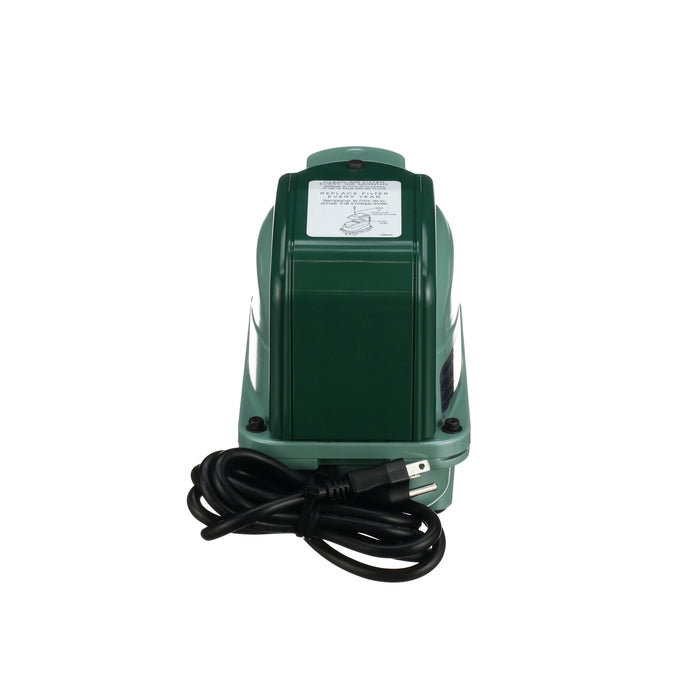

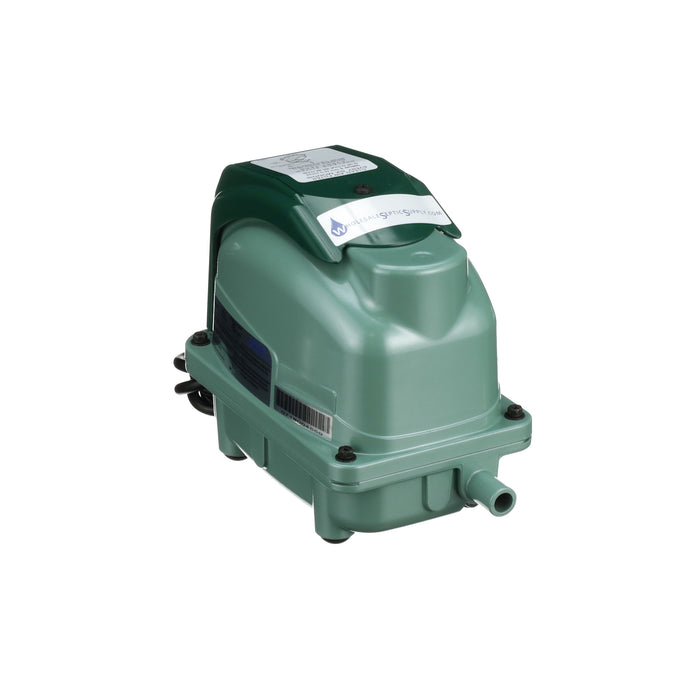

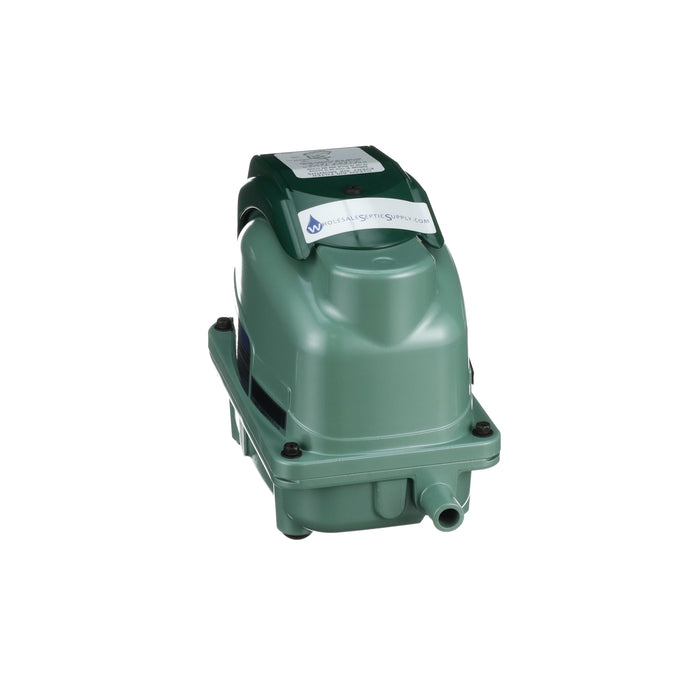

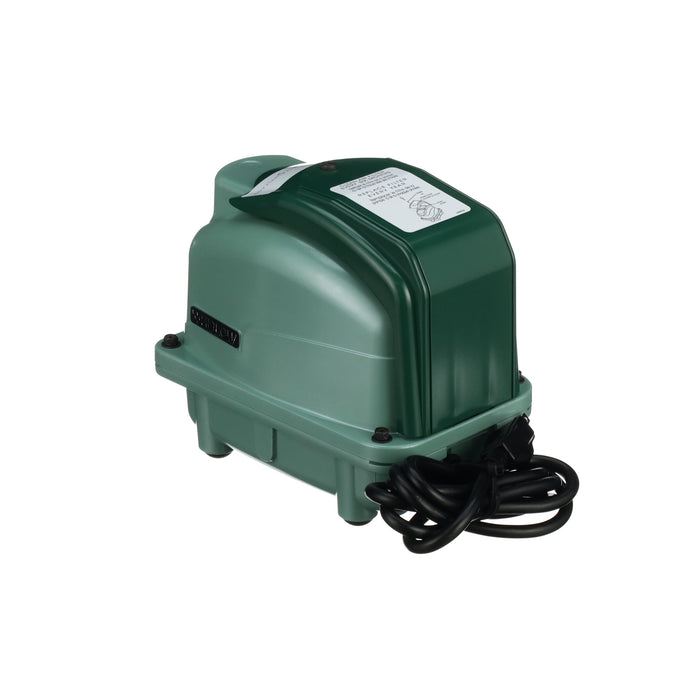

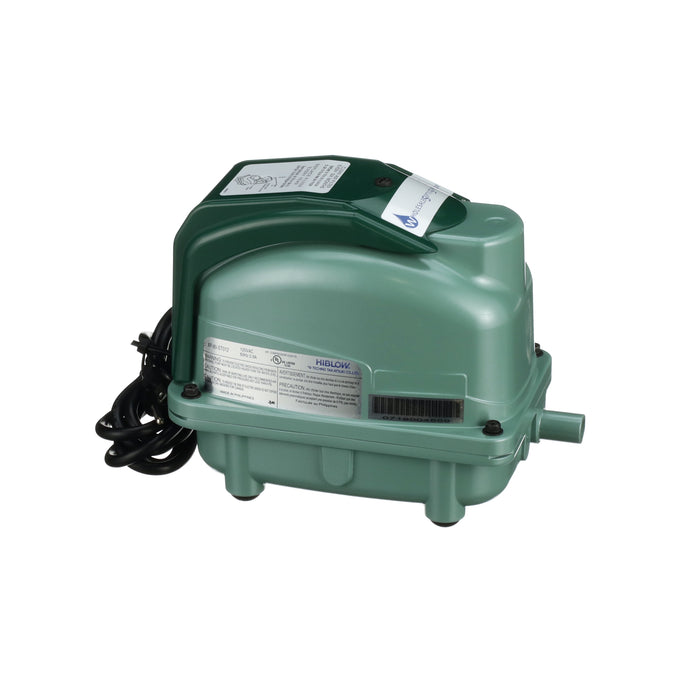

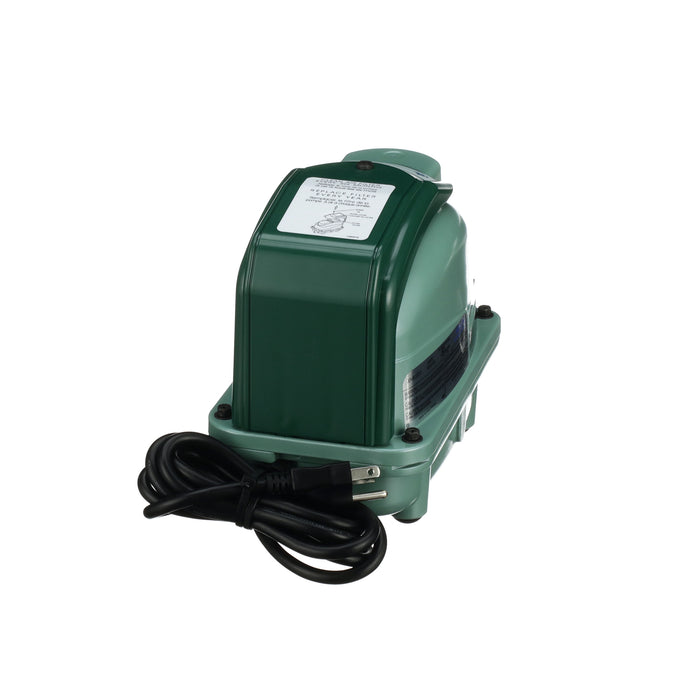

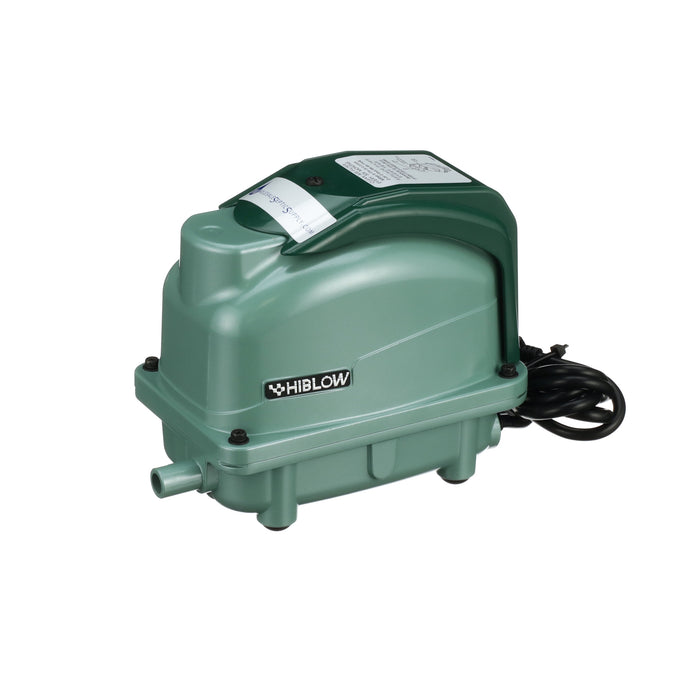

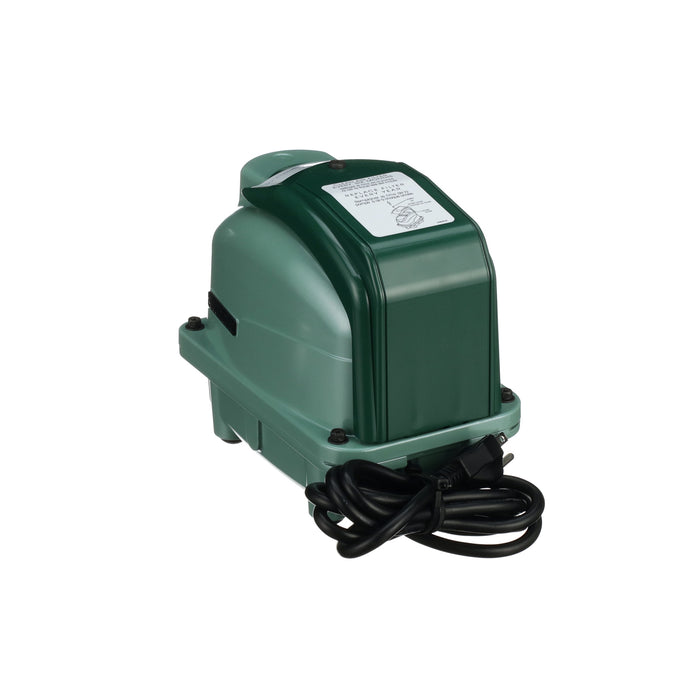

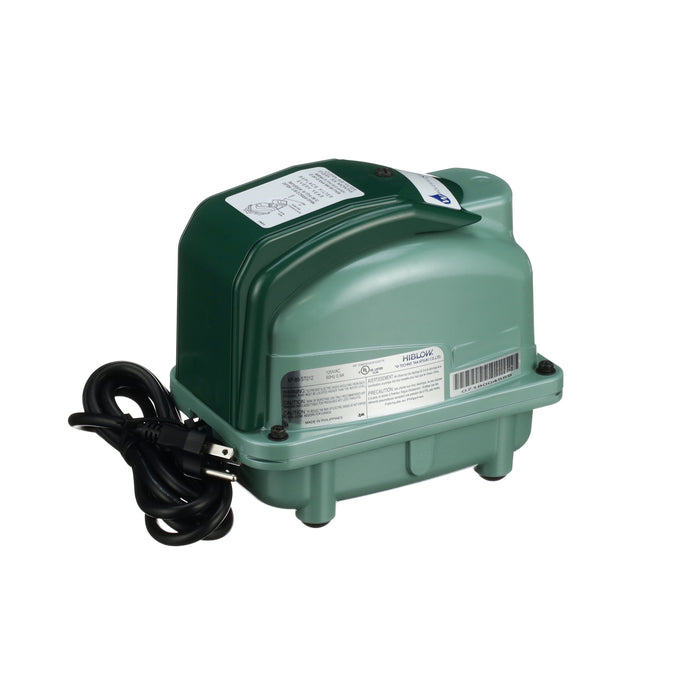

Hiblow XP-80 Septic Air Pump

  9 Reviews

Hiblow XP-80 Septic Air Pump

Overview

Hiblow XP-80 is Hiblows rare earth magnet pump. This pump is used for aerobic septic system units that require the introduction of oxygen. The oxygen is able to efficiently break down the waste product and the result is an environmentally safe effluent.

The XP80 is an international pump with a proven track record of success. With approximately 10 years on the market, this septic air pump is fully equipped with multiple safety features.

Although this pump has been in production for 10 years, it is just now being introduced to the USA market. The Hiblow XP-80 was a huge international success. The Hiblow XP-80 septic air pump has been in production in both Europe and Asia. This international success is largely due to the XP taking less power to run. The Hiblow XP-80 takes 0.9 amps compared to 1.6 amps for a normal Hiblow pump. The efficient power saving pump presents a financial saving opportunity for consumers.

The reduced power consumption also translates into less heat, being generated within the septic unit. With less heat being created the unit will be able to work for a longer period of time. This is because the structural integrity of the unit can be directly related to its temperature regulation capabilities. A unit that consistently runs with a high temperature will more quickly degrade the diaphragm material.

In addition to creating less heat the Hiblow XP-80 also has a thermal overload protection system. Another money-saving safety feature is the Hiblow XP-80’s integral low-pressure alarm.

The low air pressure alarm will recognize any unusual drops in air pressure. A significant drop in air pressure could mean that the unit or air pump is failing to perform properly. Being alerted to low air pressure early on can prevent money from being wasted on faulty functions.

3 Year warranty

Product Details

  • Fits 500 and 600 GPD aerobic treatment systems
  • These specifications are results for a system with a 120-volt power source
  • Most power providers within the United States provide VAC at 60 Hz
  • 0.7 Amps and 58 Watts are required for this product
  • This product’s ideal operating pressure is 2.13 PSI
  • This product is for meant for use between 0.73 PSI and 3.99 PSI
  • The highest pressure at which this product can operate continuously is 3.9 PSI
  • Ideal airflow through the outlet of this product is 80 liters per minute
  • The maximum airflow through the outlet of this product is 100 liters per minute
  • The noise level of this product will be slightly lower than the average noise level within a home.
  • Includes a pressure tap location for external alarm sensor
  • Oil free operation
  • Sound dampening technology

P/N: hbxp80

Specifications

Rated Voltage 120 VAC

Current 0.7 A

Power supply Frequency 60 Hz

Power Consumption 58 W

Rated Loading Pressure 2.13 PSI

Operating Pressure Range 0.73 – 3.99 PSI

Maximum Continuous Operating Pressure 3.9 PSI

Maximum Airflow 100 L / min 3.5 cfm

Airflow Volume (@ rated pressure) 80 L / min 2.8 cfm

Noise Level 35 dBA

Weight 9.5 lbs.

Length 8.19 In

Width 5.20 In

Height 7.32 In

You (the customer) are responsible for making sure you are following all applicable laws and regulations in your area before replacing your septic air pump yourself. Hiblow XP-80 are Registered Trademarks of Hiblow. Under no circumstances is Wholesale Septic Supply representing to the general public that it is an Authorized Distributor, Dealer, or is affiliated with those companies with whom we make product comparisons or with any products we sell.

Price:

$285.00

4.7 /5

Calculated from 9 client reviews.

  • 1
  • 2
  • 3
  • 4
  • 5
Sort reviews :

QUESTIONS & ANSWERS

Ask a Question
  • What is the life expectancy of the xp 80 HiBlow aerator and can it be rebuilt

    The Hiblow XP-80 should last longer than the HP-80 it is a rare earth magnet pump and they take less poer to run. Because they take less power they run cooler than the HP-80 the diaphragms should last longer do to this by about 2-3 years. So life expectancy before rebuild in southern United States should be 5-6 yeras and 7-8 in northern states. Yes they can be rebuilt just like the older model.

  • What is the ideal tube size to use the xp80 with this diffuser? Matala Single Air Base w/ 9 in. Disc https://www.amazon.com/dp/B01MTJOEK4/ref=cm_sw_r_cp_apa_ffonBbMZH6XGX

    1/2 air hose is the ideal size to use.

  • I have an HP 80-0110. Is this XP80 exactly compatible?

    Yes, the XP-80 is compatible as far as pump performance and pressure.

  • Is replacing a hollow 80 with this unit easy, or does it require changes to hookups

    No changes are needed it will connect right up.
