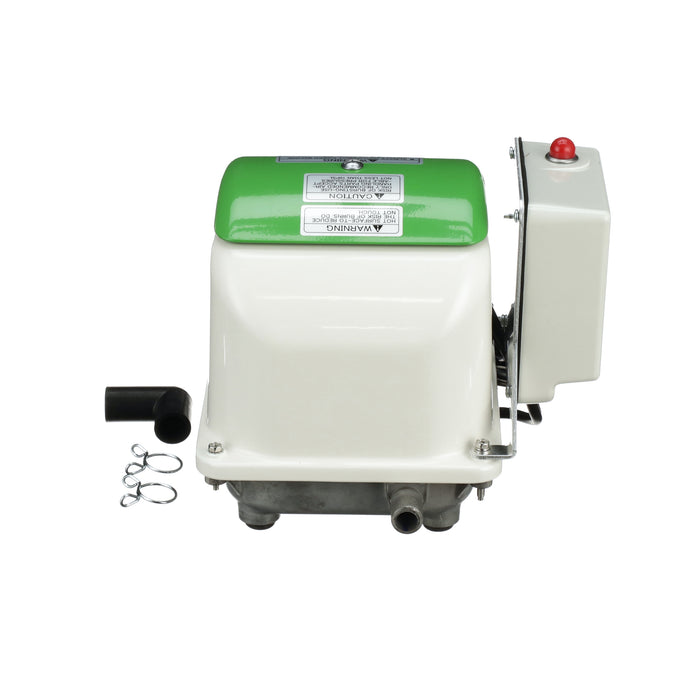

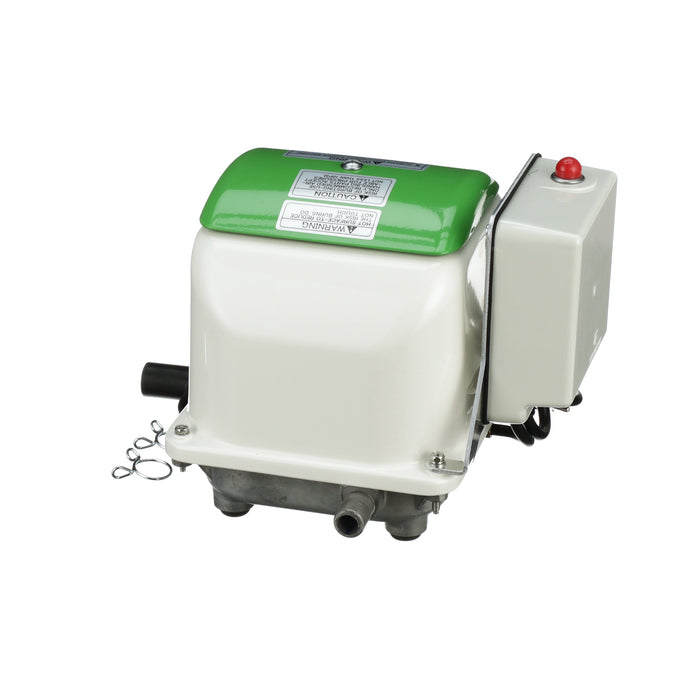

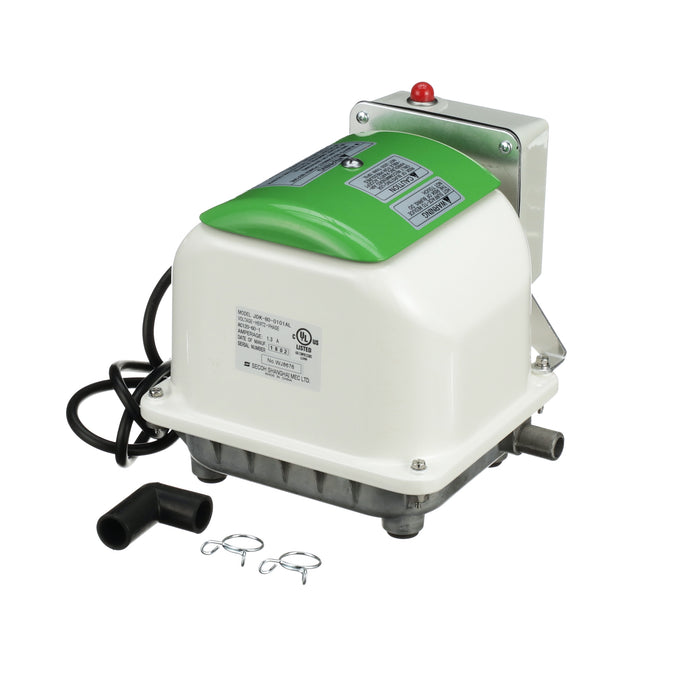

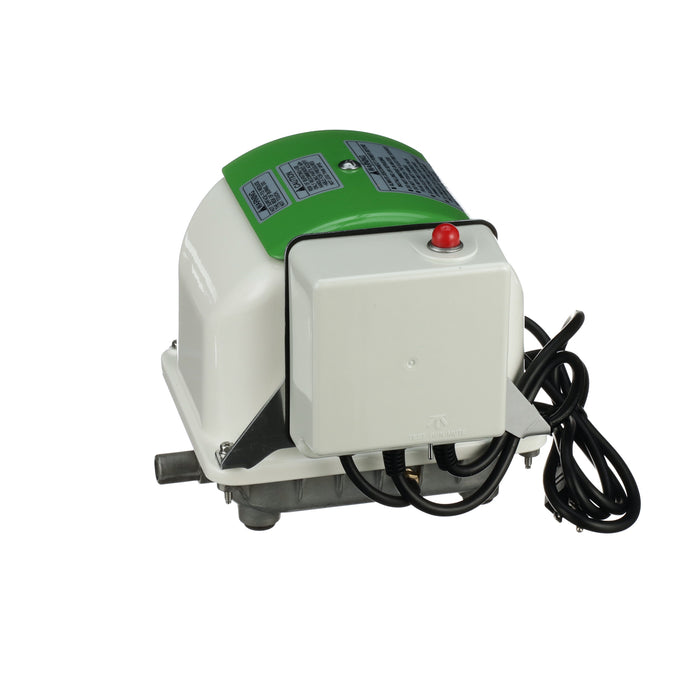

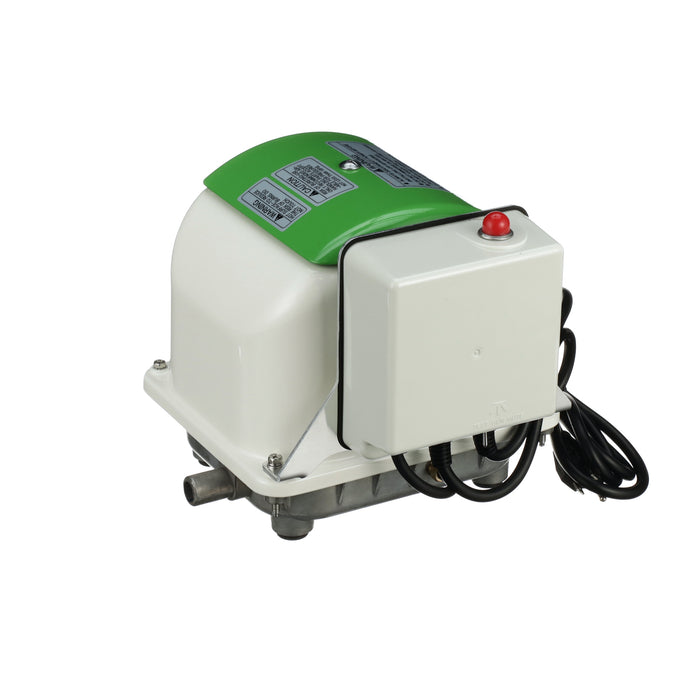

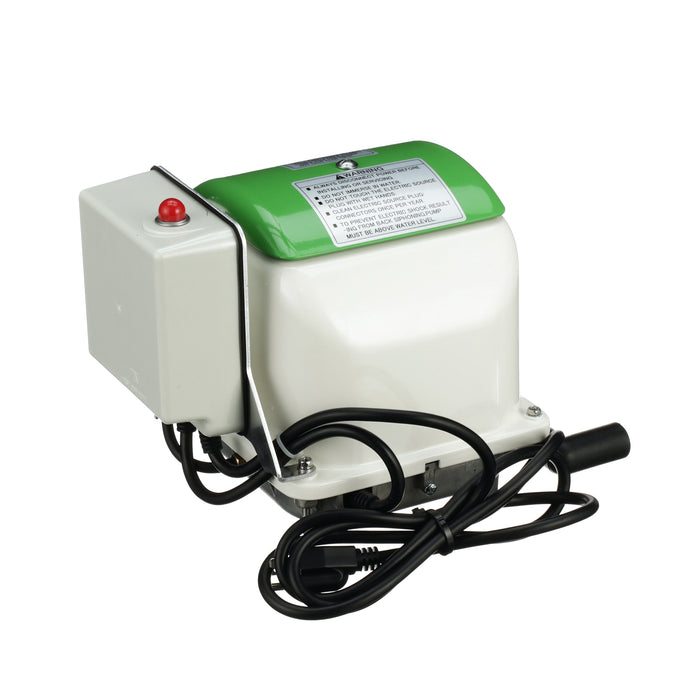

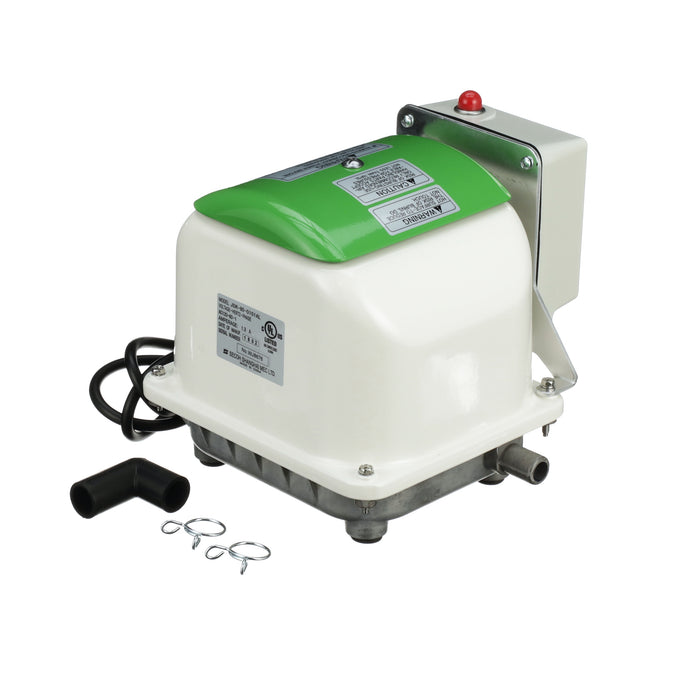

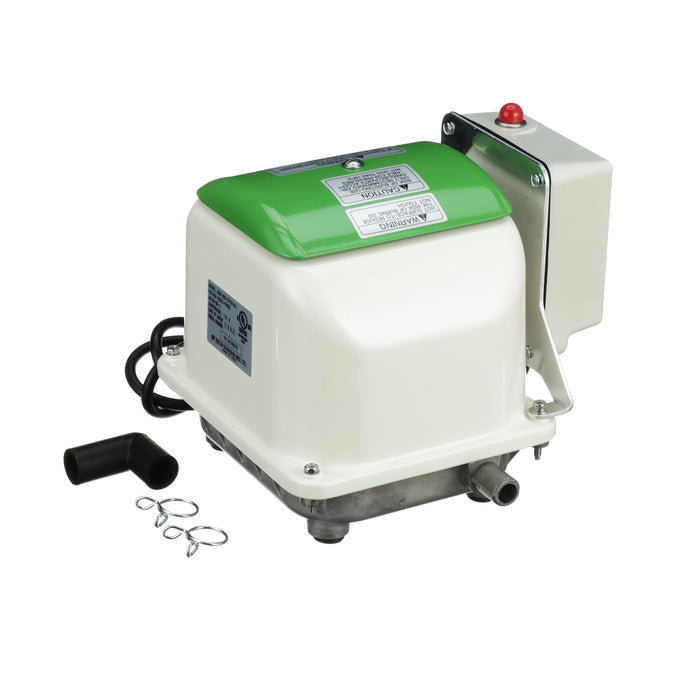

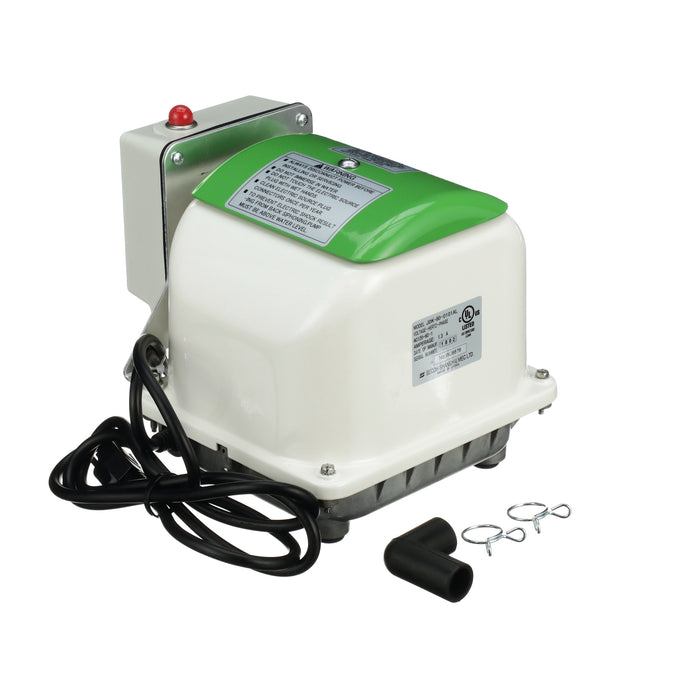

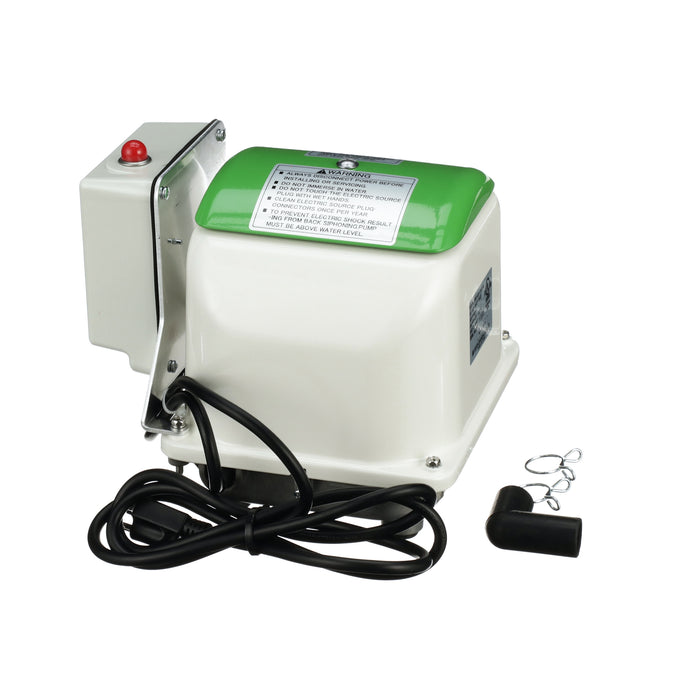

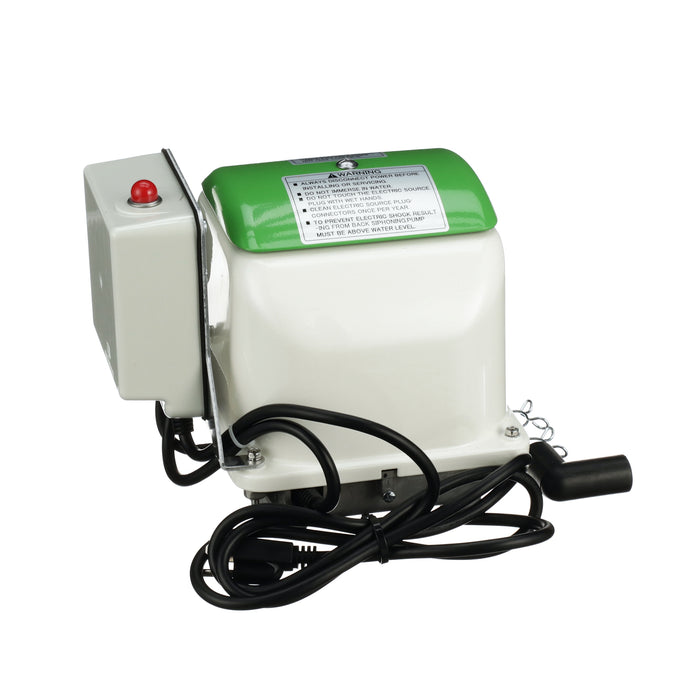

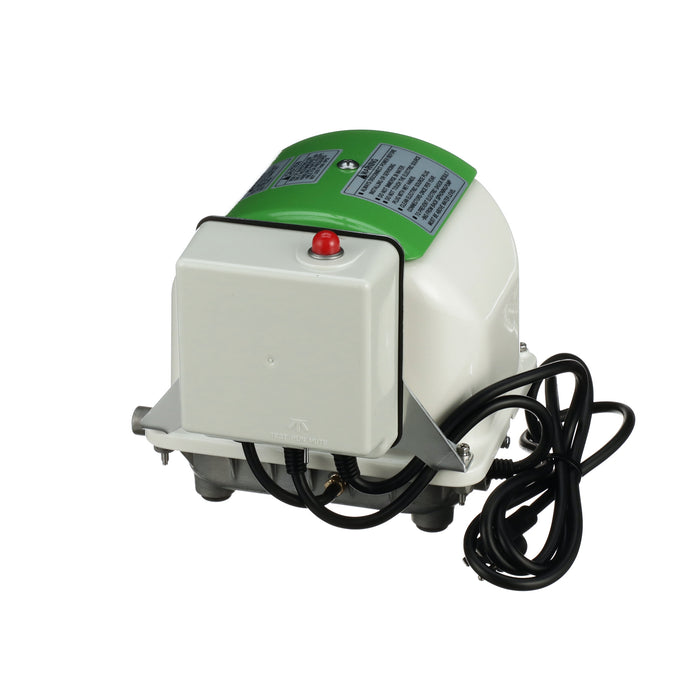

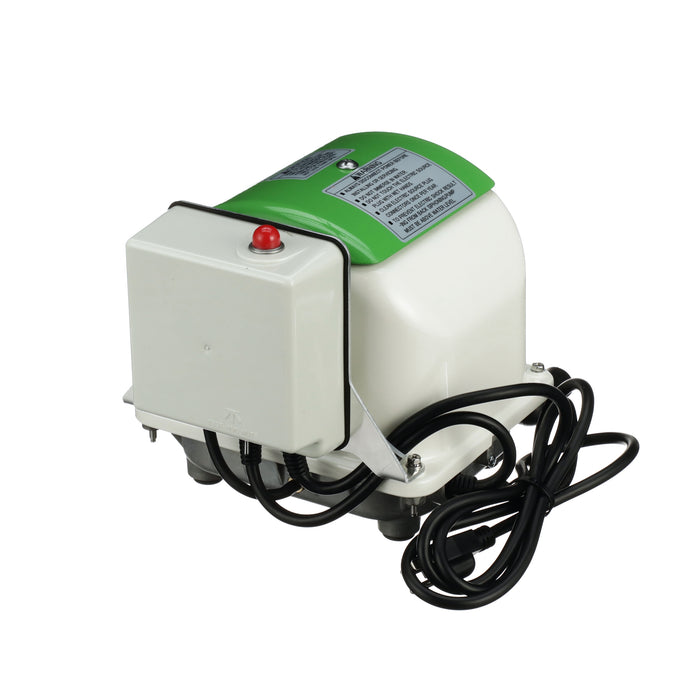

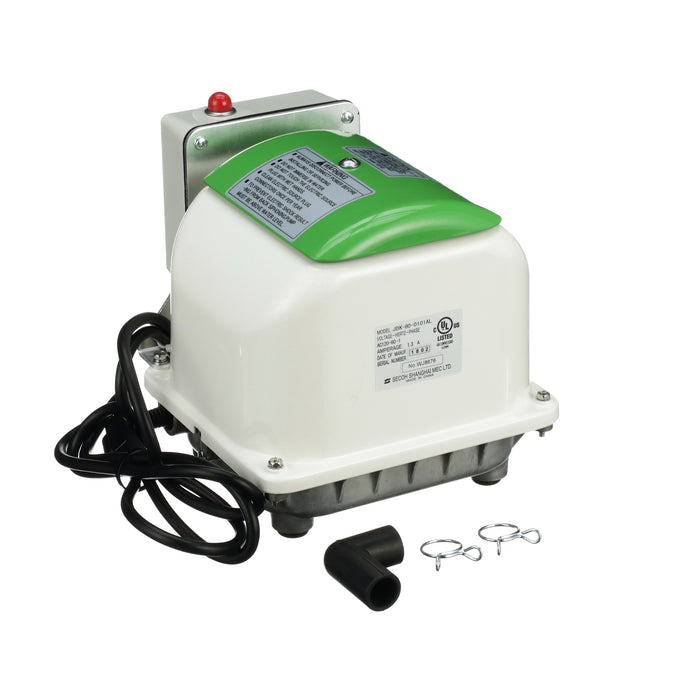

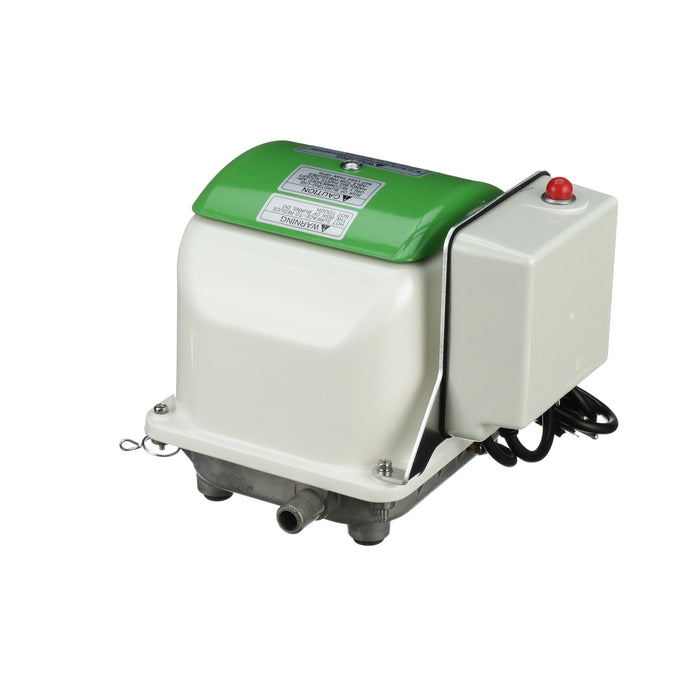

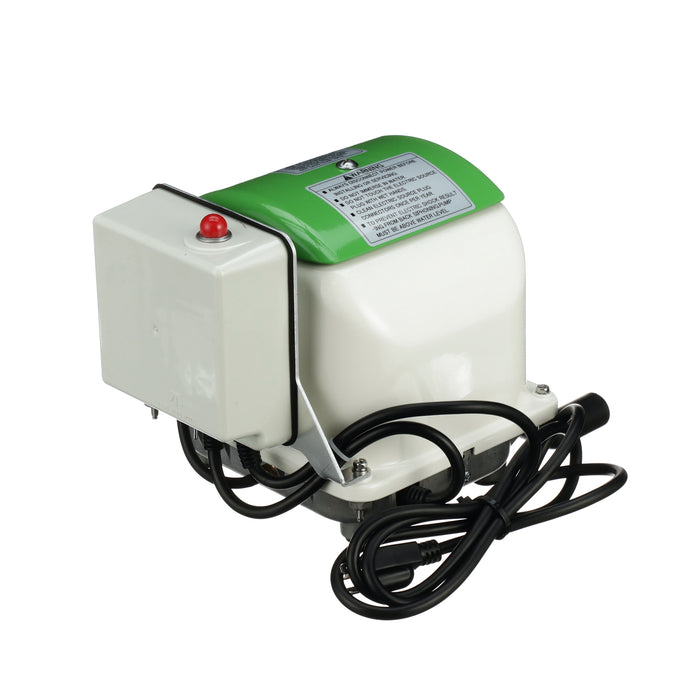

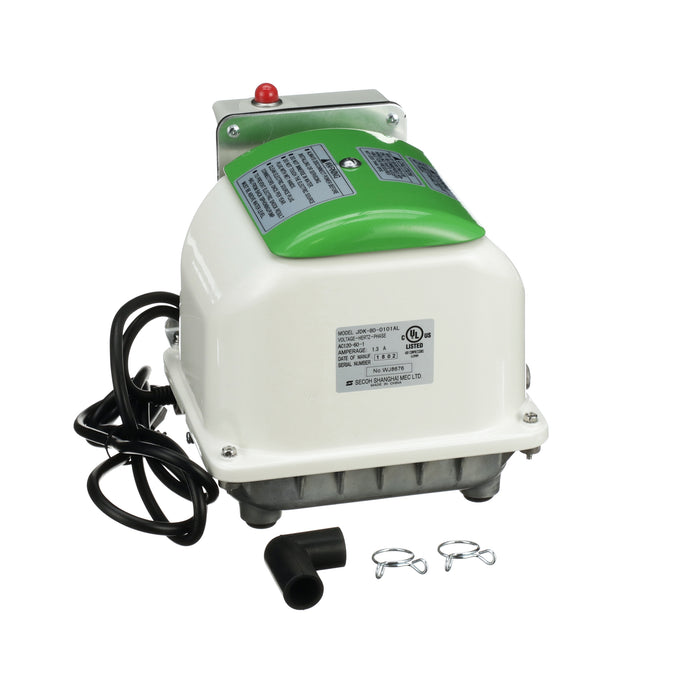

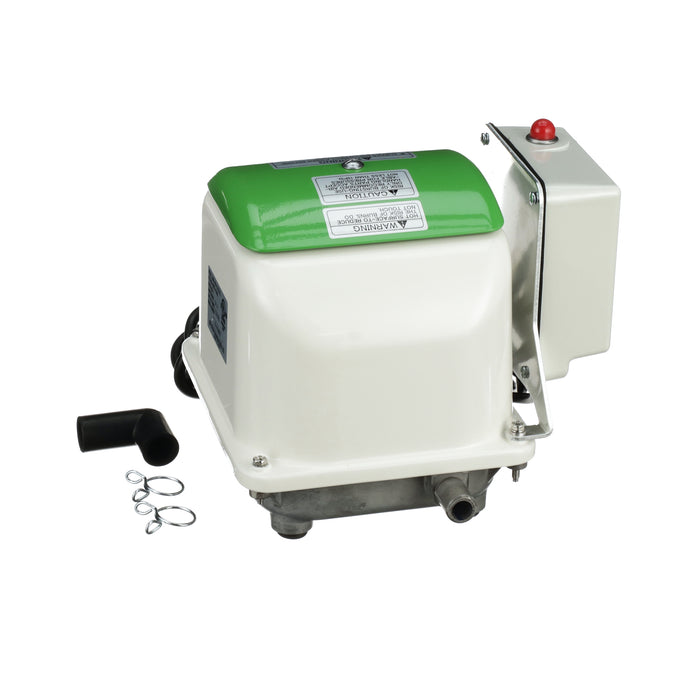

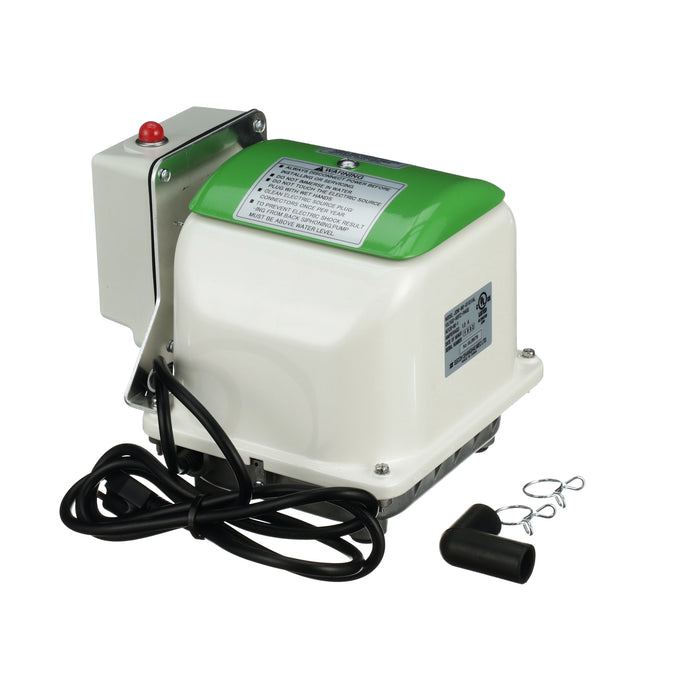

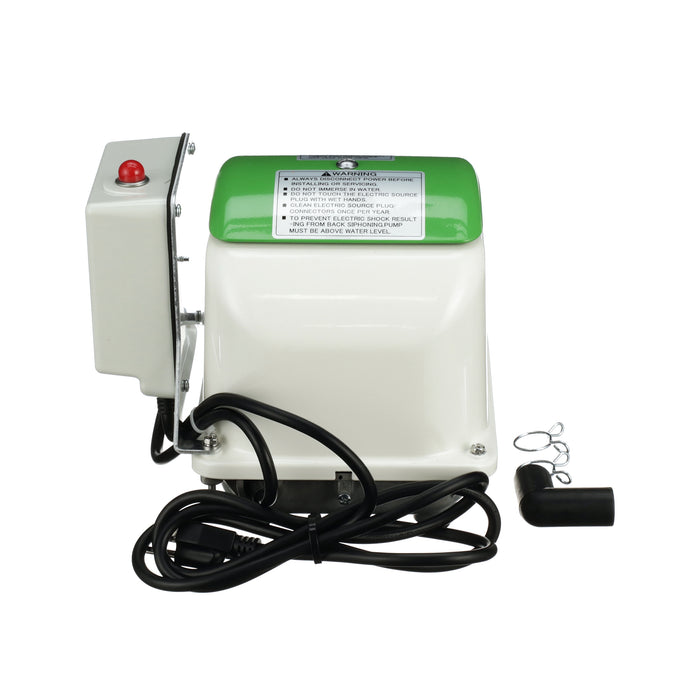

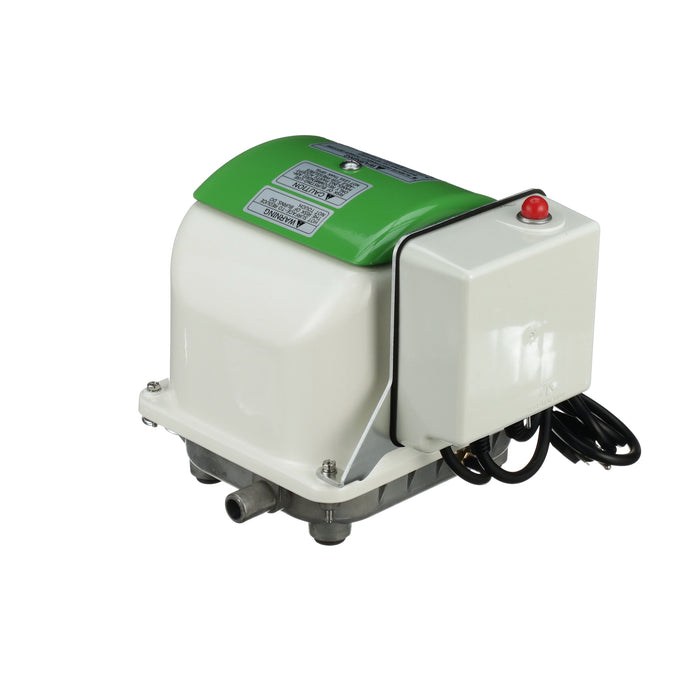

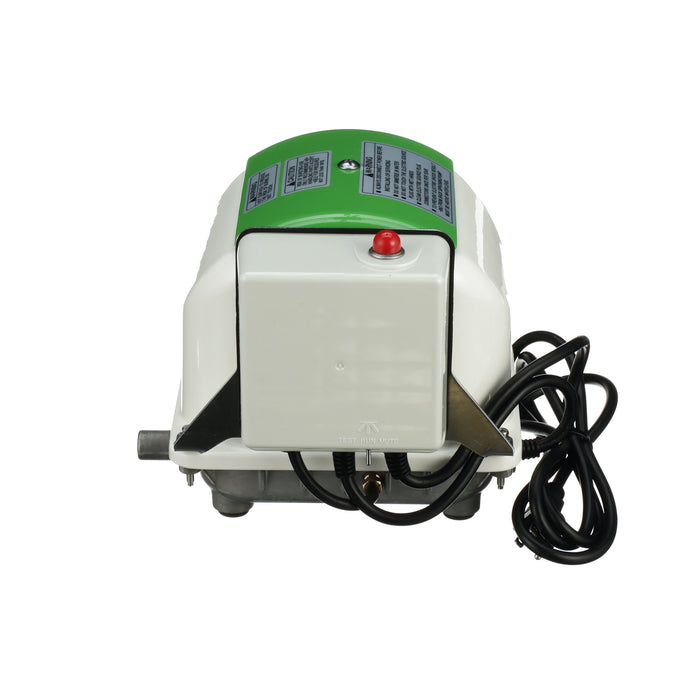

Secoh JDK-80A Septic Air Pump
Secoh JDK-80A Septic Air Pump
The Secoh JDK-80A is the newest alarm septic air pump from Secoh. This model has taken its place as the second most efficient septic aerator on the market in its class. It holds the pump curve for longer and will produce more pressure than that of a other rare earth aerators. The attached alarm will alert you if their is low pressure of the diaphragm fails also. Secoh JDK-80A Septic Air Pump contains rare Earth-magnets, which enhance its efficiency, thereby allowing the Secoh JDK-80A- to run cooler while utilizing less power than its traditional counterparts. Efficient power usage allows for the Secoh JDK-80A to have an elongated life, often around 5 to 8 years with proper maintenance. The Secoh JDK-80A also generally requires fewer repairs and can be a more cost-effective option in terms of maintenance. This Secoh JDK-80A is intended as a replacement for an existing damaged or non-functioning Secoh JDK-80A or other 500 to 750 GDP aerobic systems. If your system is damaged beyond simply replacing the pump, we suggest contacting a professional.
Maintenance is simplified on the Jdk models as well the can be rebuilt with out the magnet spacer shims that the older EL-models needed making service fast and less error prone.
Septic air pumps are integral to the function and maintenance of aerobic septic systems. Septic air pumps supply your aerobic septic system with vital oxygen. The helpful bacteria within the system that break apart biological waste require oxygen to complete this function. Proper aeration means your system will be able to properly settle and digest waste prior to removal and disposal. A non-functioning or damaged aerobic septic air pump can result in malfunction of your septic system, which includes overflow, leakage, an increase in the toxicity of waste, and difficulties in removal and disposal. Checking your aerobic septic system weekly for signs of foul smelling discharge (which indicates a problem) can give you a good indication of the condition of your aerobic septic system.
Rebuild kits are available for the maintenance of this product. This product can be expected to require rebuild after three or four years of operation, and it can be rebuilt two to three times. However, red dust building up inside the compressor may signal that a rebuild may not be sufficient.
Secoh JDK-80A Septic Air Pump Aerator Details
- Aerobic Septic aerator or Pond Aeration Pump
- Fits 500 to 750 GPD Aerobic Systems (Check with your septic manufacture to make sure pump is suitable for your application)
- Intended for Septic Tank Aeration
- These specifications are results for a system with a 120-volt power source
- Most power providers within the United States provide VAC at 60 Hz
- 3 Amps and 65 Watts are required for this product
- This product’s ideal operating pressure is 2.9 PSI
- The highest pressure at which this product can operate continuously is 3.6 PSI
- Ideal airflow through the outlet of this product is 85 liters per minute
- The maximum airflow through the outlet of this product is 130 liters per minute
- The noise level of this product will be a little louder than the average noise level within a home.
- Integral low-pressure alarm
- Oil free operation
Rated Voltage 120 VAC
Current 1.3 A
Power supply Frequency 60 Hz
Power Consumption 65 W
Rated Loading Pressure 2.9 PSI
Maximum Pressure 3.6 PSI
Maximum Airflow 130 L / min 4.6 cfm
Airflow Volume (@ rated pressure) 85 L / min 3.0 cfm
Noise Level 38 dB(A)
Weight Approx. 16 lbs.
Length Approx. 11 In
Width 10 In
Height 8.2 In
Outlet Outer Diameter 0.75 In
Outlet Inner Diameter 0.49
You (the customer) are responsible for making sure you are following all applicable laws and regulations in your area before replacing your septic air pump yourself. Secoh and JDK-80A are Registered Trademarks of Secoh. Under no circumstances is Wholesale Septic Supply representing to the general public that it is an Authorized Distributor, Dealer, or is affiliated with those companies with whom we make product comparisons or with any products we sell.
