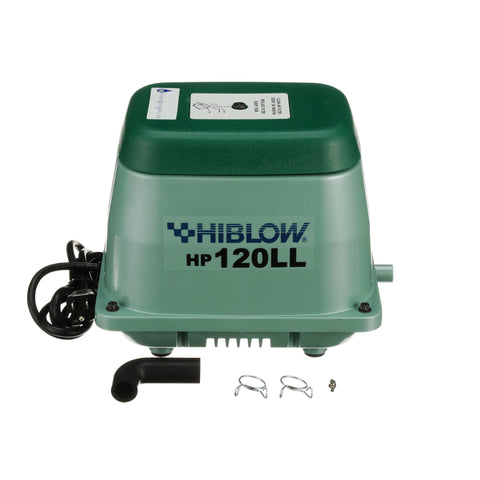

The Hiblow HP120LL septic air pump. This new design has major improvements with longer lasting diaphragms over the old HP-120 model. The Hiblow HP-120LL fits all 750 Gallon Per Day units. They also fit various 1000 gpd aerobic septic systems. This pump is also very energy efficent drawing less amps than comparable units.
Rebuild kits are available for the maintenance of this product. This product can be expected to require rebuild after three or four years of operation, and it can be rebuilt two to three times. However, red dust building up inside the compressor may signal that a rebuild may not be sufficient.
Hiblow has proven track record of producing high quality aerators. You can rest easy knowing that your Hiblow aerator is built to last. These aerators also come equipped with industry leading safety features. Extra parts for Hiblow aerators are also well supported. This ensures that extra parts for your aerator can be fairly easily acquired.
1.2 Amps and 100 Watts are required for this product
This product’s ideal operating pressure is 2.57 PSI
The highest pressure at which this product can operate continuously is 4.3 PSI
Ideal airflow through the outlet of this product is 120 liters per minute
The maximum airflow through the outlet of this product is 150 liters per minute
The noise level of this product will be slightly louder than the average noise level within a home.
Includes a pressure tap location for external alarm sensor
Oil free operation
Sound dampening technology
Rated Voltage 120 VAC
Current 1.2 A
Power supply Frequency 60 Hz
Power Consumption 100 W
Rated Loading Pressure 2.57 PSI
Maximum Continuous Operating Pressure 4.3 PSI
Maximum Airflow 150 L / min 5.2 cfm
Airflow Volume (@ rated pressure) 120 L / min 4.2 cfm
