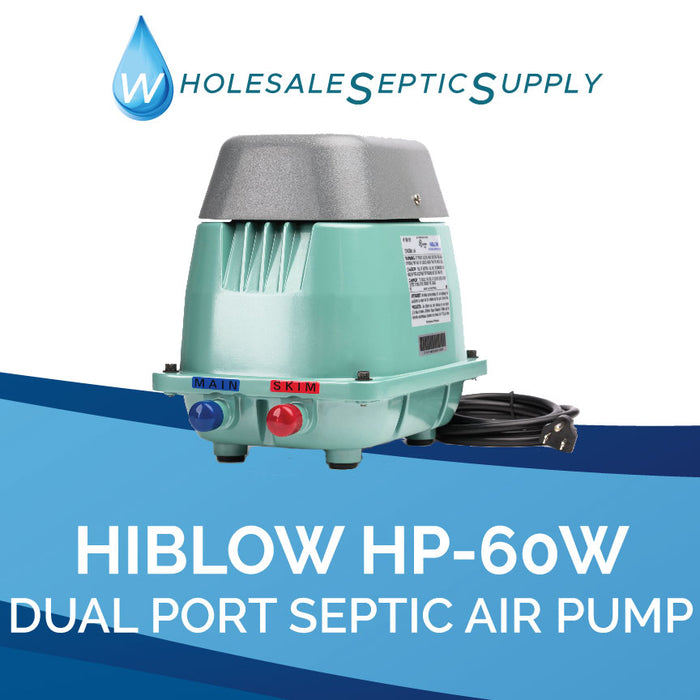

The Hiblow HP60W is a dual port Aeration blower that uses two ports that cycle between ports one acts as the primary aeration port and the other is connected to an airlift style skimmer in the clarifying part of the unit.This allows a cleaner and clearer effluent to be discharged. The unit does not need any programming to accomplish this you only hook it up, and it does it on its own. You can use a Hiblow HP-60 kit to repair them.
Rebuild kits are available for the maintenance of this product. This product can be expected to require a rebuild after three or four years of operation, and it can be rebuilt two to three times. However, red dust building up inside the compressor may signal that a rebuild may not be sufficient.
Hiblow has proven track record of producing high quality aerators. You can rest easy knowing that your Hiblow aerator is built to last. These aerators also come equipped with industry leading safety features. Extra parts for Hiblow aerators are also well supported. This ensures that extra parts for your aerator can be fairly easily acquired.
These specifications are results for a system with a 120-volt power source
Most power providers within the United States provide VAC at 60 Hz
Two outlets.
3 Amps and 68 Watts are required for this product
This product’s ideal operating pressure is 2.13 PSI
The highest pressure at which this product can operate continuously is 3.6 PSI
Ideal airflow through the outlet of this product is 60 liters per minute
The maximum airflow through the outlet of this product is 100 liters per minute
The noise level of this product will be less than the average noise level within a home.
Includes a pressure tap location for external alarm sensor
Oil free operation
Sound dampening technology
UL Rated for outdoor use.
Two Year Warranty
Rated Voltage 120 VAC
Current 1.3 A
Power supply Frequency 60 Hz
Power Consumption 68 W
Rated Loading Pressure 2.13 PSI
Maximum Continuous Operating Pressure 3.6 PSI
Maximum Airflow 100 L / min 3.5 cfm
Airflow Volume (@ rated pressure) 60 L / min 2.1 cfm
