Tran N2 septic control panel no timer

Tran N2 septic control panel no timer

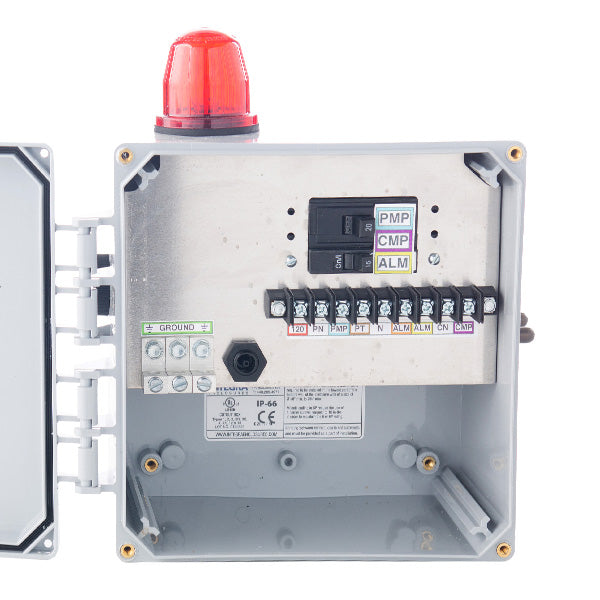

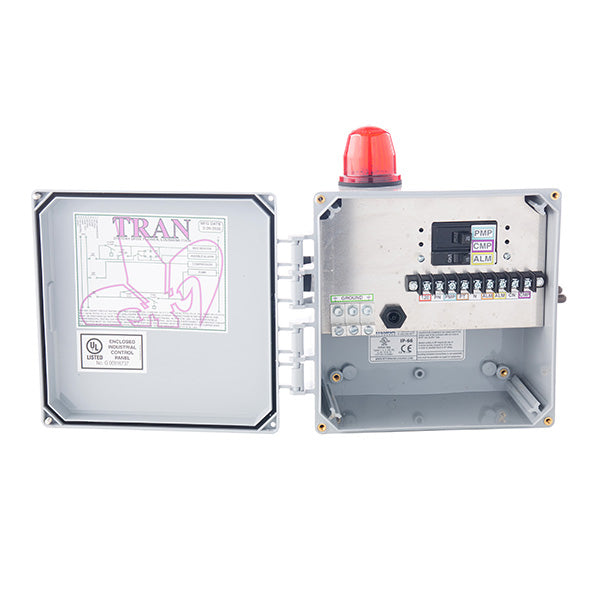

The Tran N2 septic control panel with no timer has 3 breakers: one for the pump, one for the alarm, and one for the aerator. It has an air sensor to alert you to the septic air pump failing also. This control panel is for on demand systems. On demand systems automatically disperses the water when the float switch reaches the on level.



Specifications

3 Circuit Breakers (20A Pump, 15A Compressor, 15A Alarm)

120 VAC 14.2 F.L.A Short Circuit Rating 5KA RMS Symmetrical Comp HP-1/6 V-115 PH-1 HZ-60 Total F.L.A. 14.2

Pump HP-1/2 V-115 PH-1 HZ-60 Total F.L.A. 14.2 Type-1

QUESTIONS & ANSWERS

Ask a Question
  • is this control panel compatible with the hoot 500?

    Yes if the system has floats, some hoots have sensors in the place of floats. If it has sensors, then it needs to be changed over to a float system which is way better.
