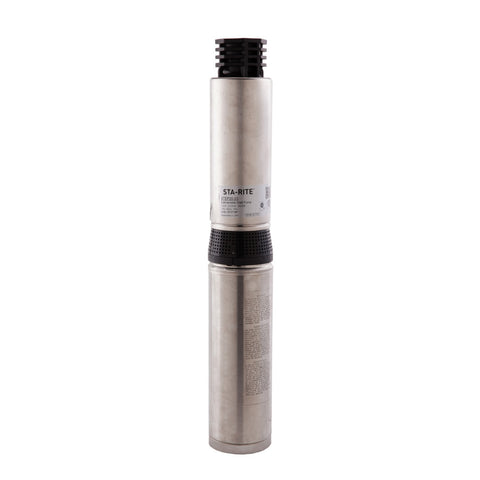

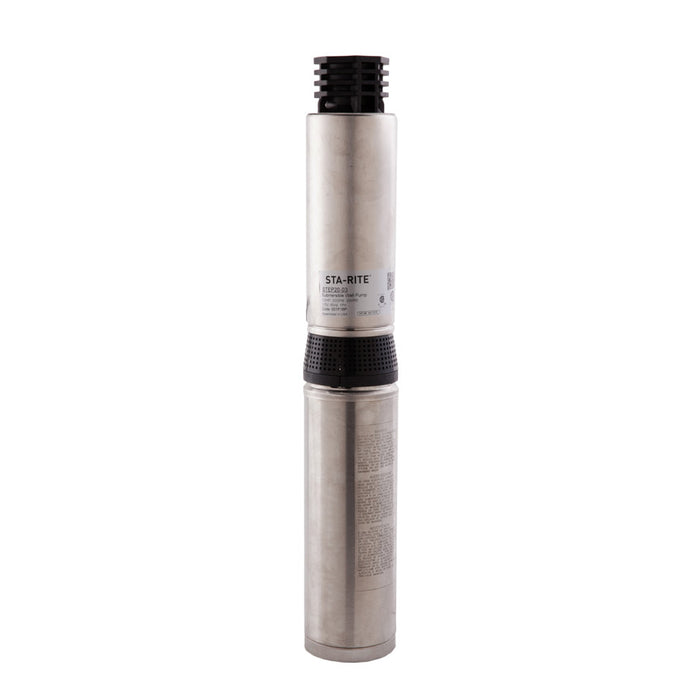

Sta-Rite Step 20-2 1/2 HP Effluent Pump

Sta-Rite Step 20-2 1/2 HP Effluent Pump

The new STEP Plus™ 4" submersible effluent pumps in 10 and 20 GPM models offer dependable performance and value for high pressure filtered effluent applications.
Key features
  • 1/2, 1 or 1-1/2 HP, 115 or 230 Volt, single-phase, 2-wire
  • Superior performance
  • Stainless steel and composite construction
  • Exclusive industry dry-run capability
  • Enclosed and self-lubricated Nylatron® shaft-bearing resists
    wear from sand
  • Heavy 3/8" (9.5mm) or 7/16” (11.1mm) positive drive 300 Series
    stainless steel hexagonal shaft
  • Serviceable fiberglass reinforced thermoplastic intake screen
  • SPECIFICATIONS



    HORSEPOWER:  1/2 HP

    VOLTAGE:  115 volts, 60 Hz

    AMP DRAW:  10.5 amps at full load

    SHELL:  Stainless steel

    DISCHARGE:  1-1/4" NPT, Fiberglass-reinforced thermoplastic

    DISCHARGE BEARING:  Nylatron®

    IMPELLERS:  Delrin® (5 stages)

    DIFFUSERS:  Polycarbonate (5 stages)

    SUCTION CAPS:  Polycarbonate with stainless steel wear ring

    THRUST PADS:  Proprietary spec.

    SHAFT AND COUPLING:  Stainless steel 300 grade

    INTAKE:  Fiberglass-reinforced thermoplastic

    INTAKE SCREEN:  Polypropylene

    POWER CORD:  300 Volt “SOOW” jacketed 10' leads, 115 Volt, 2-wire with groun
