Overview

If you are searching for a high-quality septic aerobic system control panel, the Tran T2 Septic Control Panel is a reliable product. The Tran line of control panels can replace most aerobic system control panels. They are constructed with high quality materials, to ensure a long life that requires little to no maintenance. The Tran T2 Septic Control Panel is constructed with marine grade enclosures that are UV resistant, and seal tightly.

The Tran T2 Septic Control Panel’s compact design makes it ideal for use in applications where size is a primary concern. But don’t let the small size fool you. The Tran T2 Septic Control Panel was designed to provide a superior performance. The durable, UL rated product is easy to use.

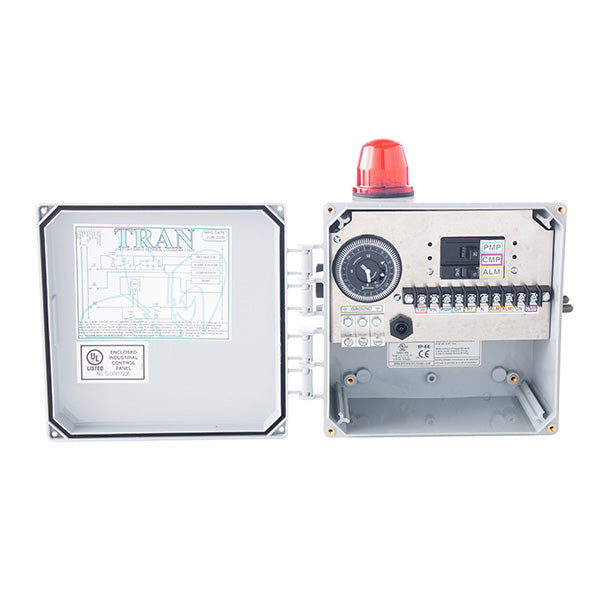

The Tran T2 Septic Control Panel has three breakers. The first one is for the pump, the second for the alarm, and the third for the aerator. The breakers come color coded, so you will not mistake them for each other. The Tran T2 Septic Control Panel also comes with an air sensor, to alert you in the septic air pump is failing. The control panel will alert you of any issues immediately, so you can address them right away. This can prevent flooding and major, costly maintenance issues.

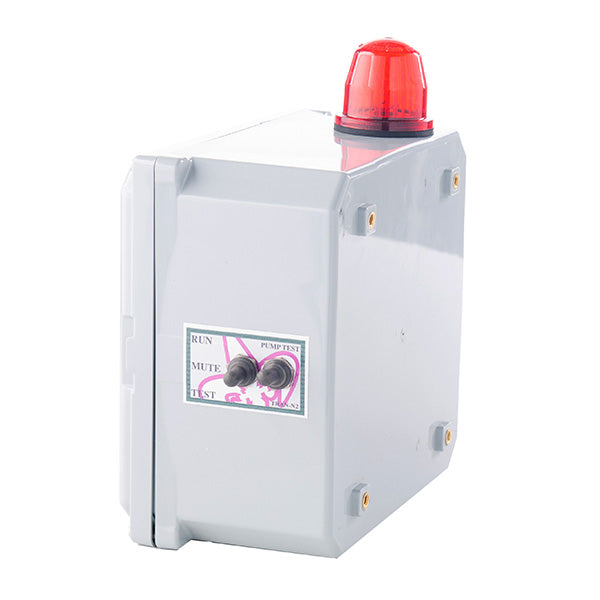

The Tran T2 Septic Control Panel comes with an audio alarm to signal pump malfunction. It also has a red light, so if you silence the alarm, you can still tell there is an issue. There is also a pump test switch.

Specifications

  • 3 Circuit Breakers (20A Pump, 15A Compressor, 15A Alarm)
  • 120 VAC 14.2 F.L.A Short Circuit Rating 5KA RMS Symmetrical Comp HP-1/6 V-115 PH-1 HZ-60 Total F.L.A. 14.2
  • Pump HP-1/2 V-115 PH-1 HZ-60 Total F.L.A. 14.2 Type-1
