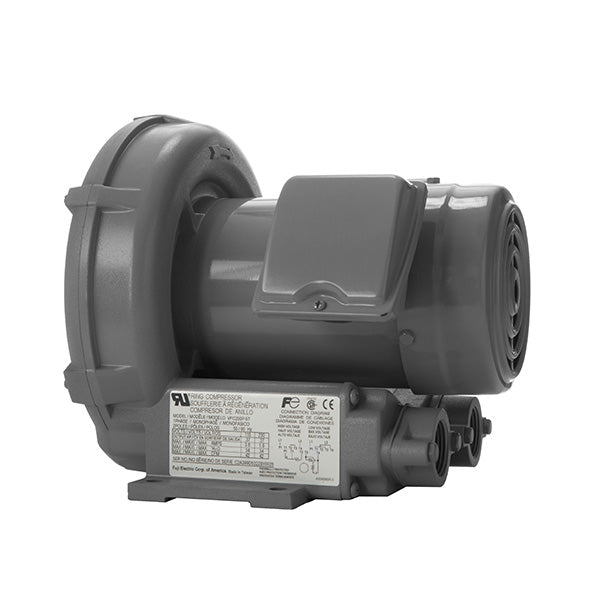

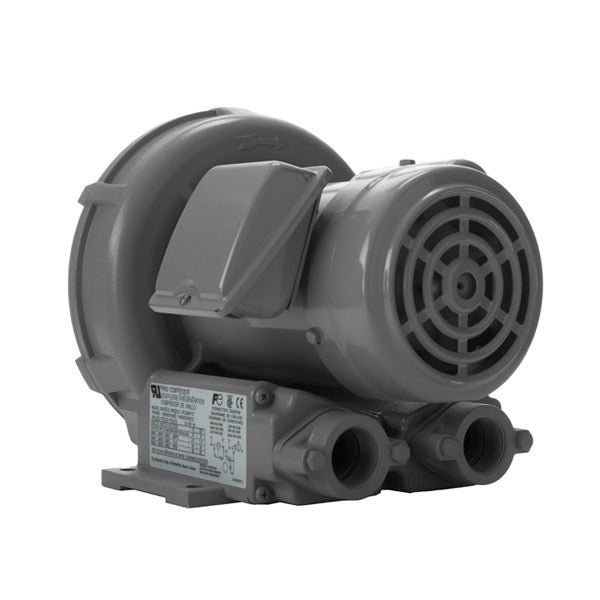

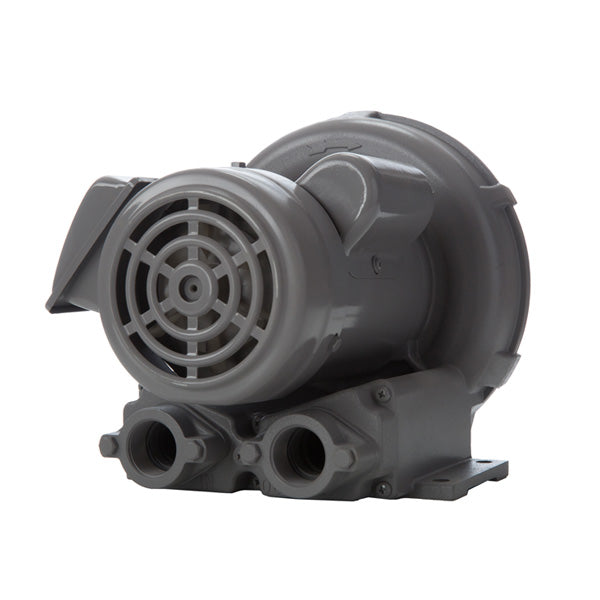

Fuji VCF200P-5T 1/3 HP is used in many aeration septic systems. Like all regenerative blowers, it is low pressure and high volume at 43 CFM open flow optimal 15-25cfm running. Only 1.23 max psi or 34 in HG . the 34 Hg is literally 34 inches of water column or depths the maximum pressure it can operate in. It can be wired for 230 vac, and 115 vac comes prewired in 230.
Because there are only two bearings that wear regenerative blowers generally last a very long time. For septic aeration, Fuji blowers are found in airlift applications where the diffuser is not at the bottom of the tank. Rather there is a pipe in the tank at a certain level and the blower is connected to it lifting and aeration the water at the same time over a media.
| HP | 0.37 |
| Voltage | 115/230V (Dual Voltage) |
| Phase | 1 |
| Full Load Amps | 3.6/1.8 |
| Max Flow Rate | 42 cfm |
| Max Ambient Temp | 104 Degrees Fahrenheit |
One Year Warranty Covering Manufacturing Defects
P/N: FEC-AER-200P
