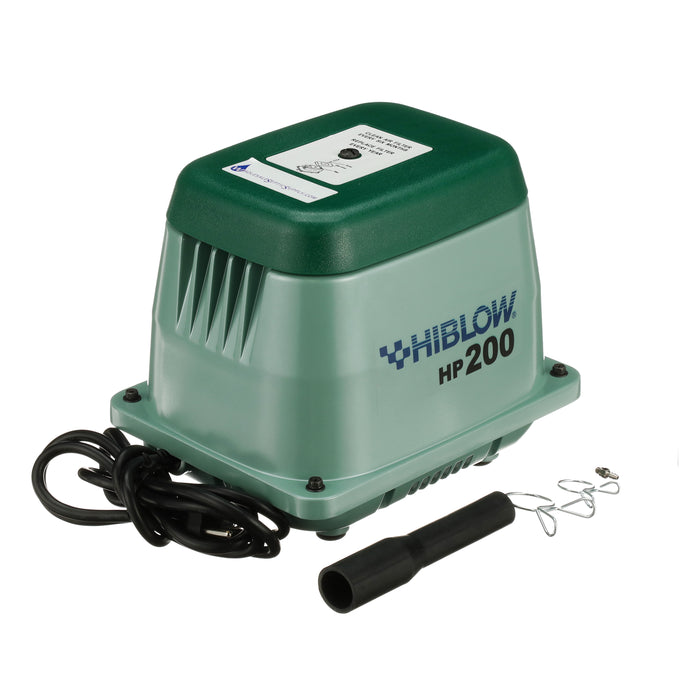

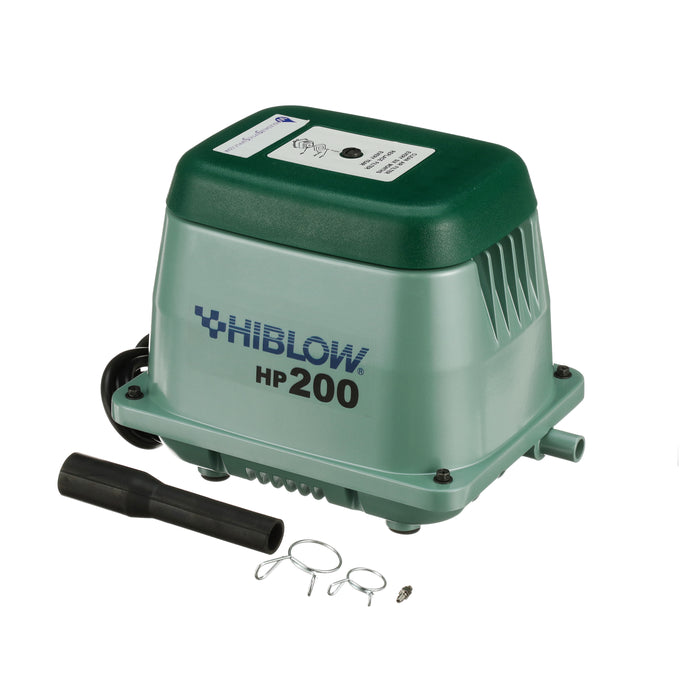

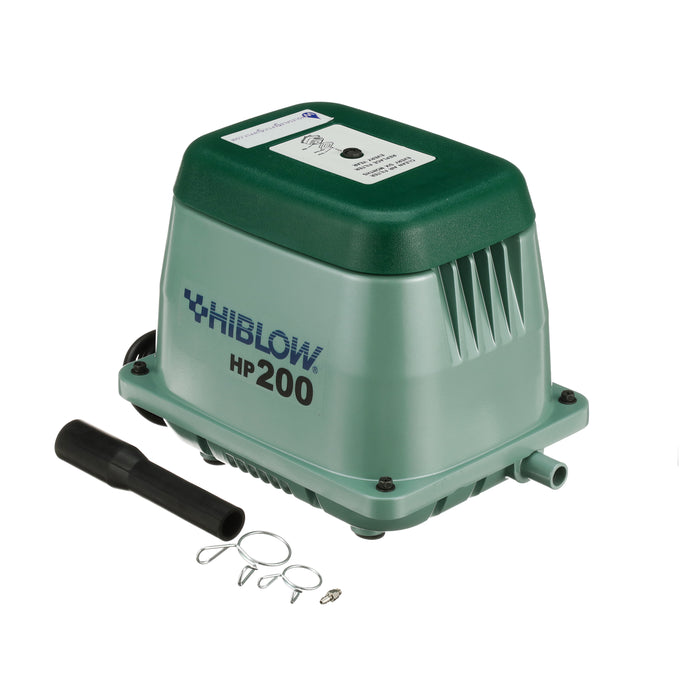

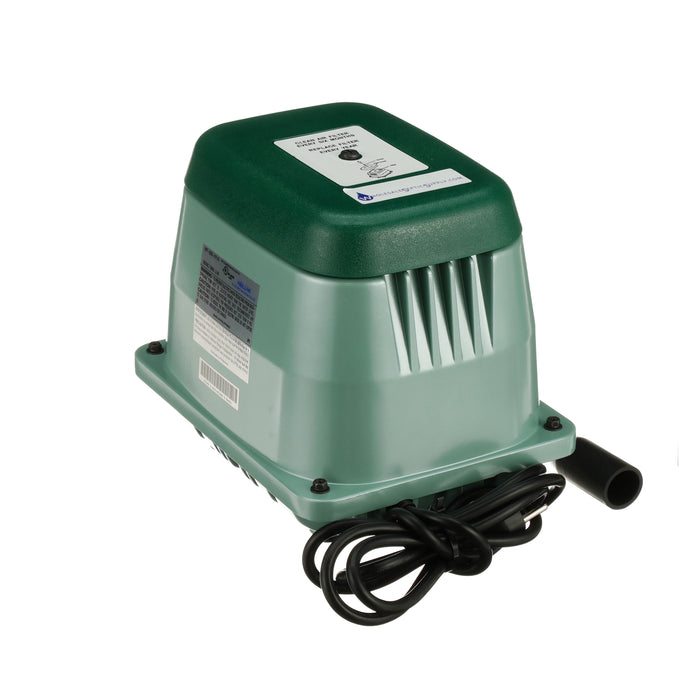

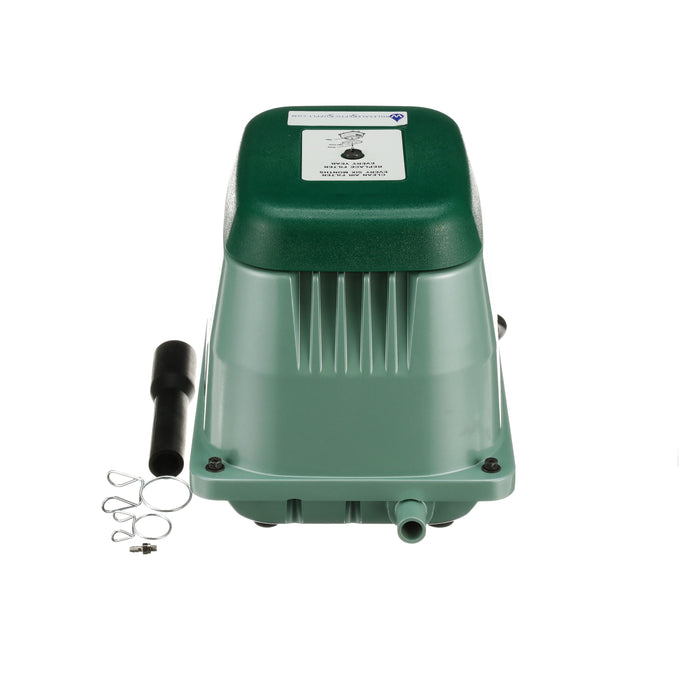

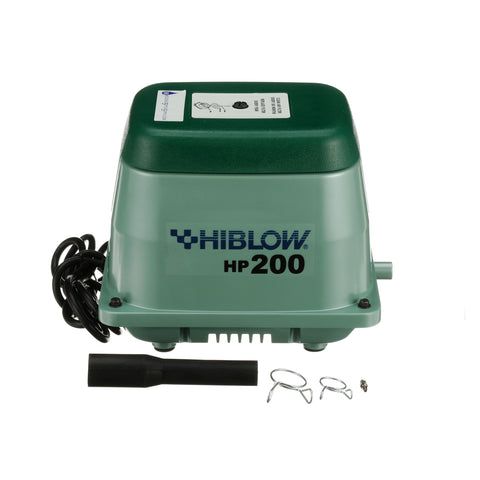

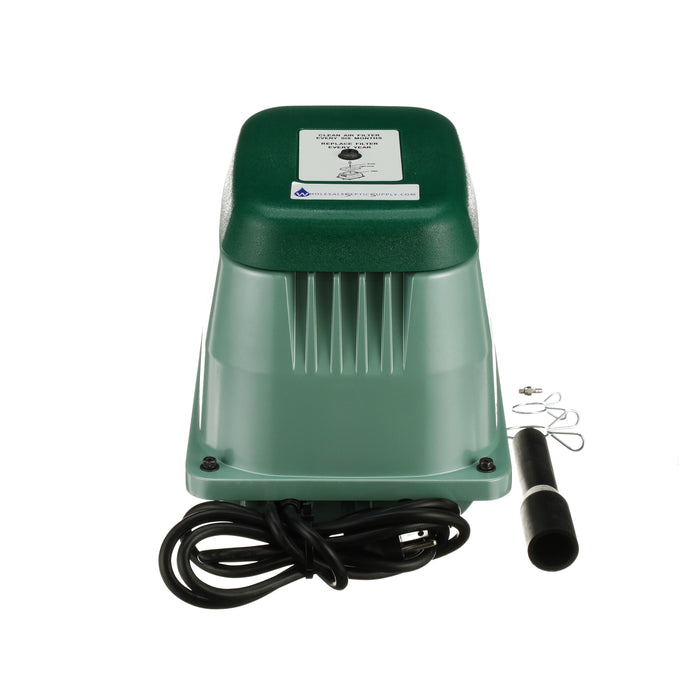

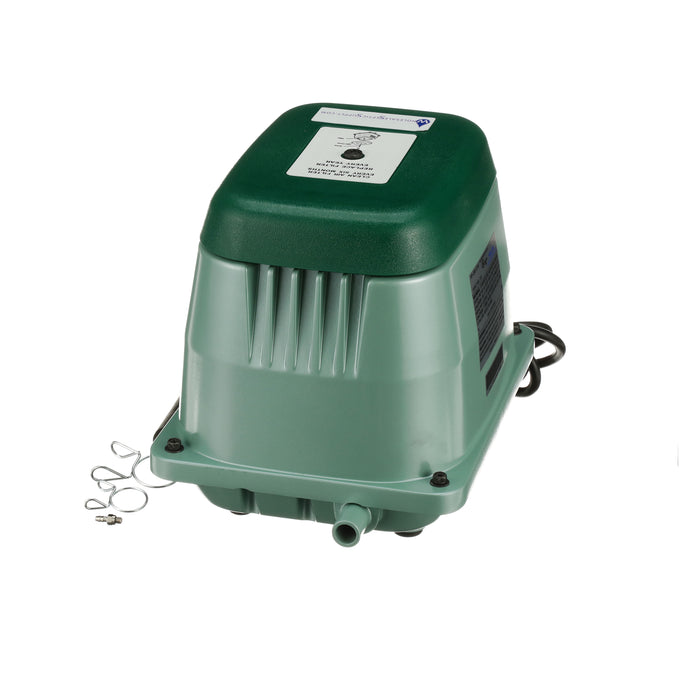

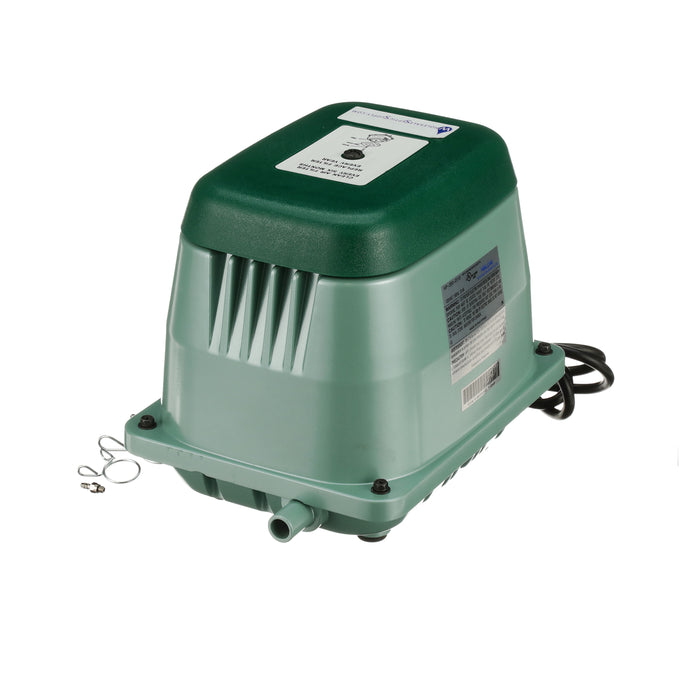

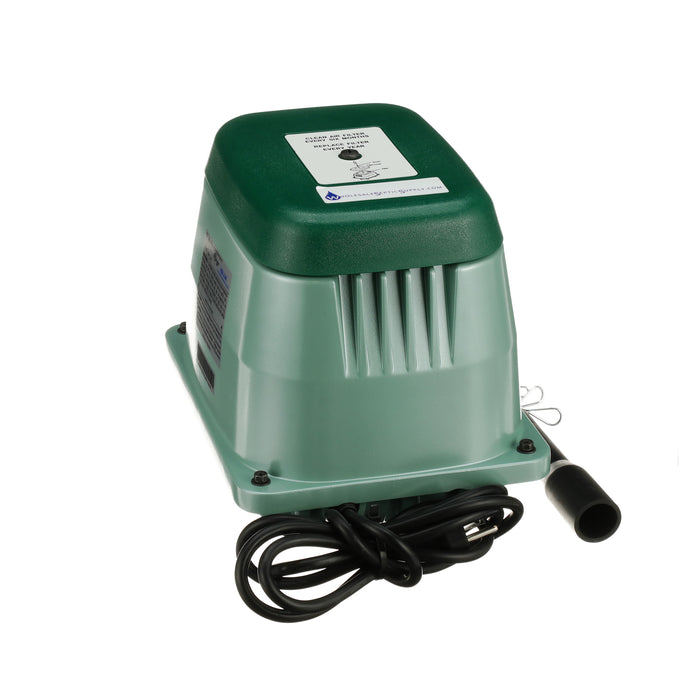

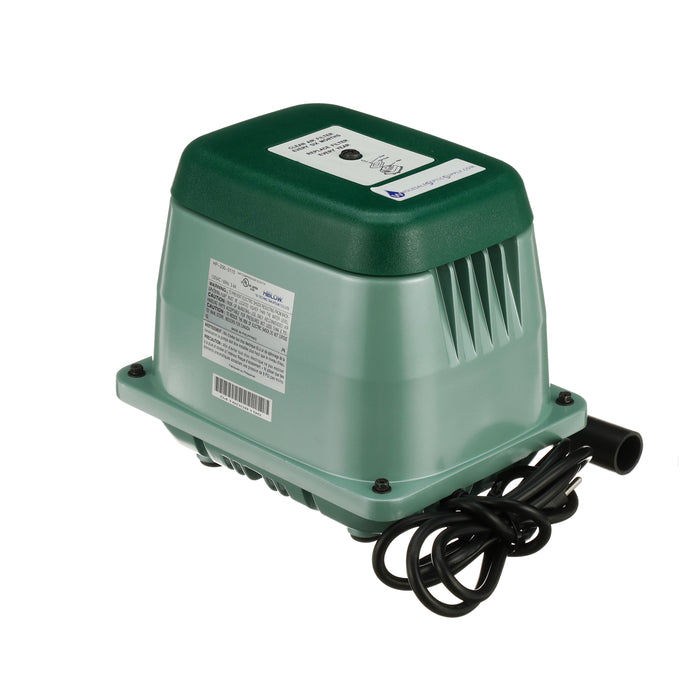

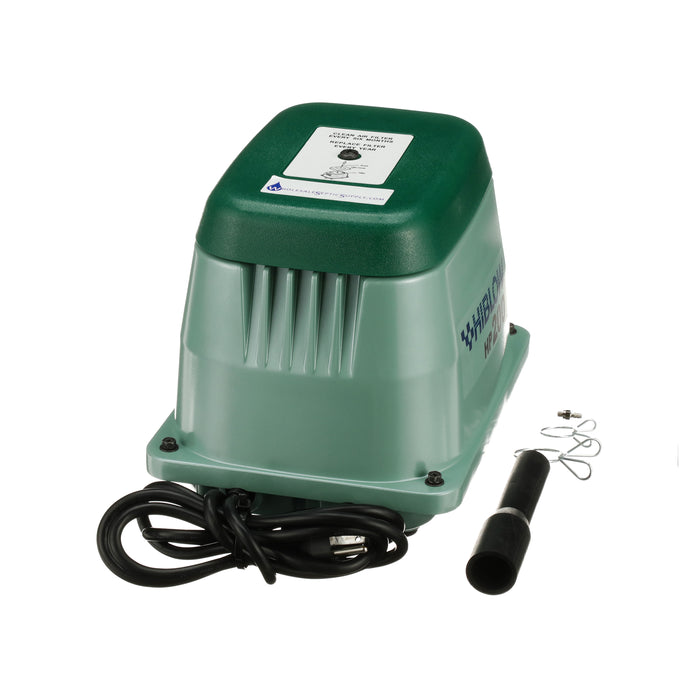

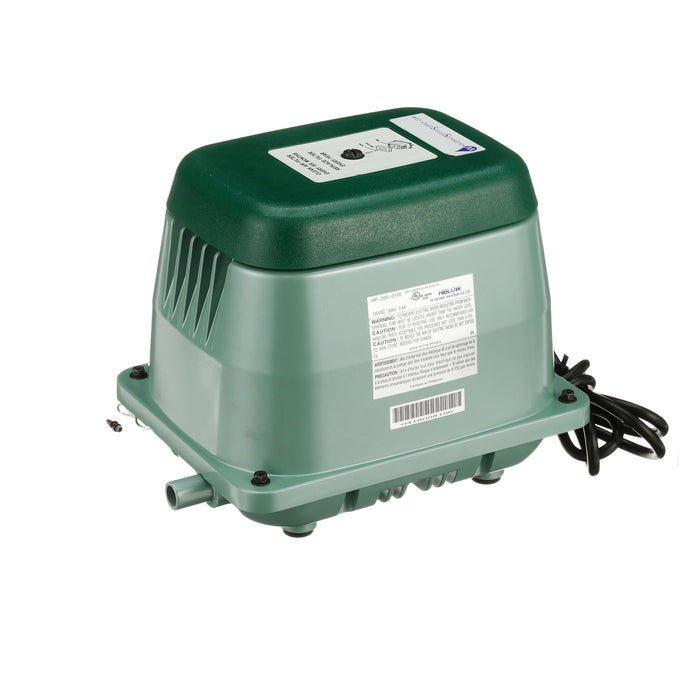

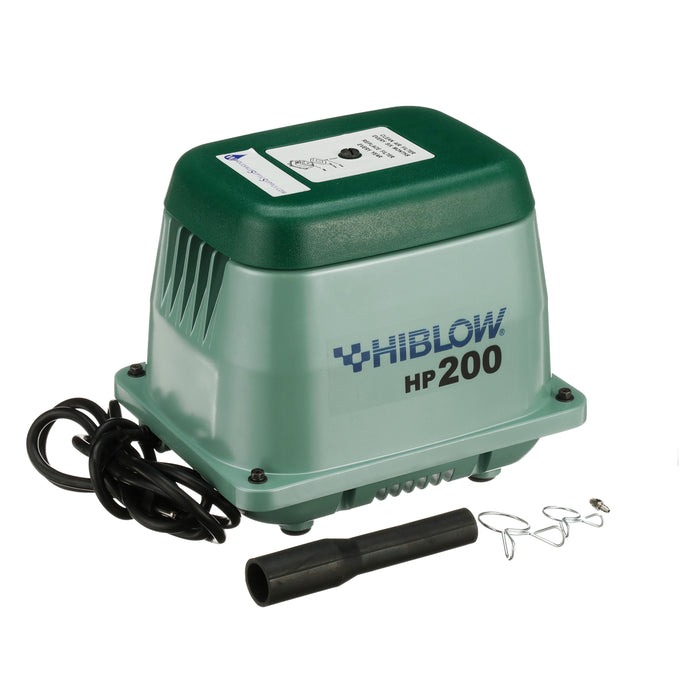

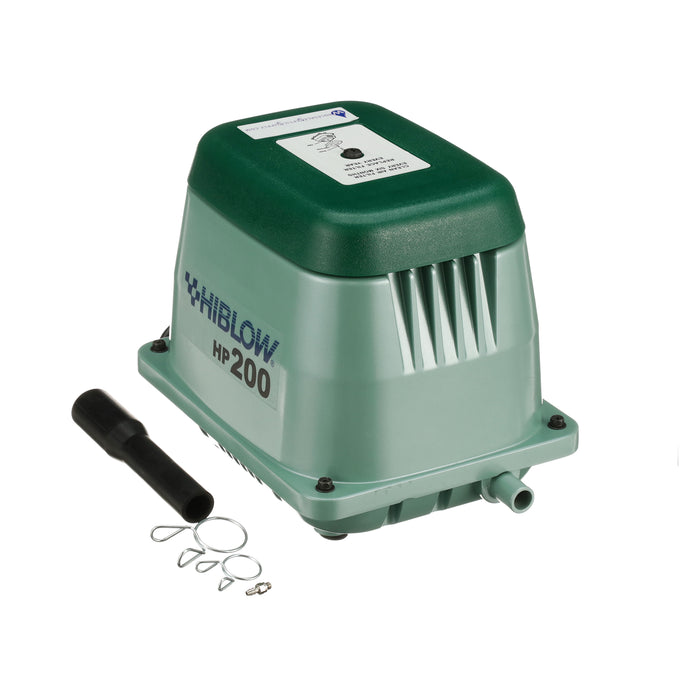

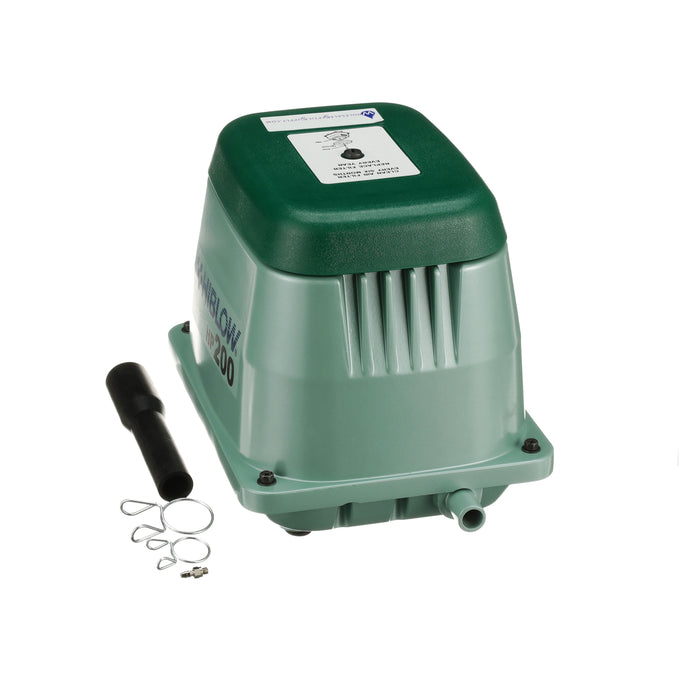

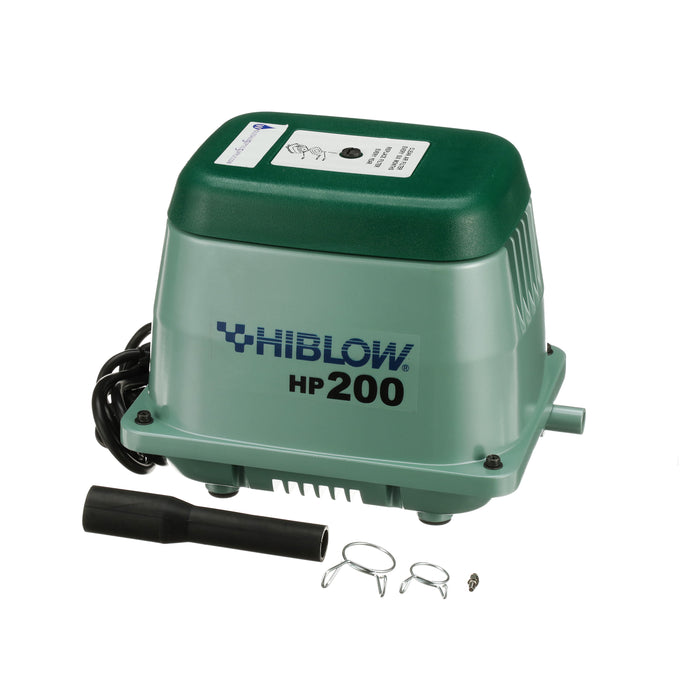

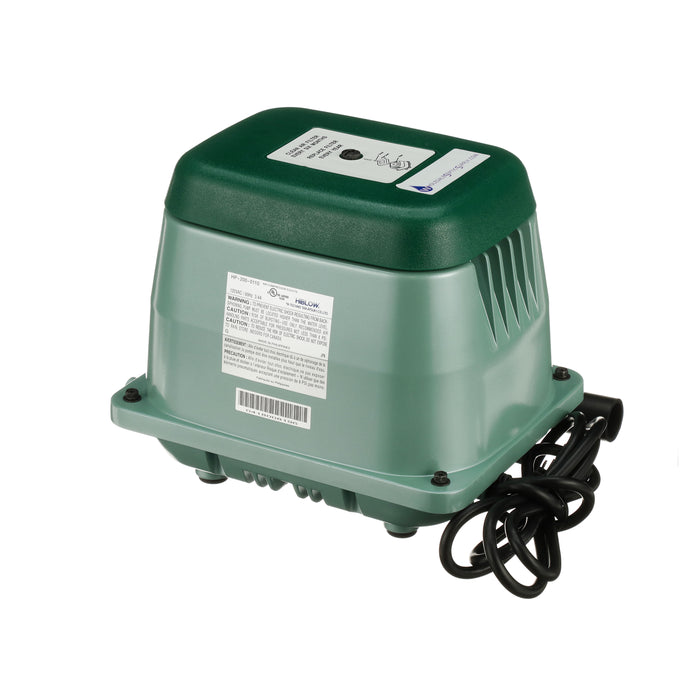

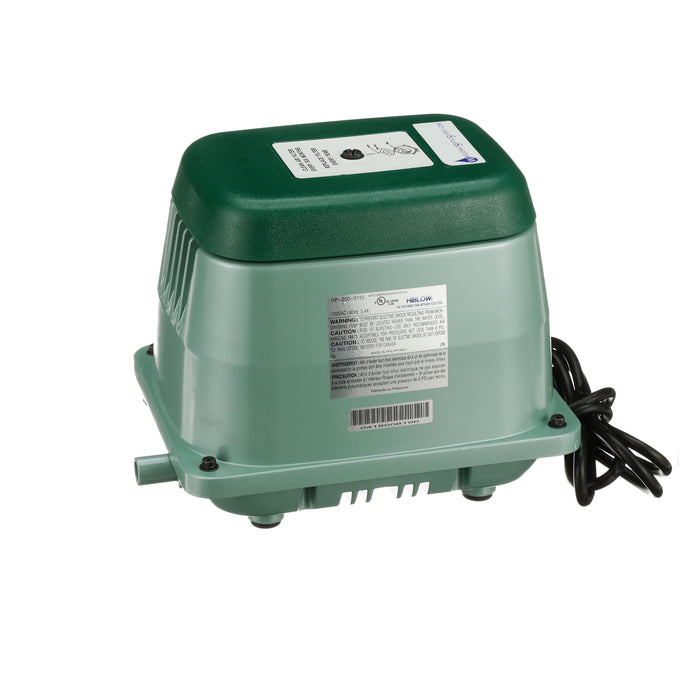

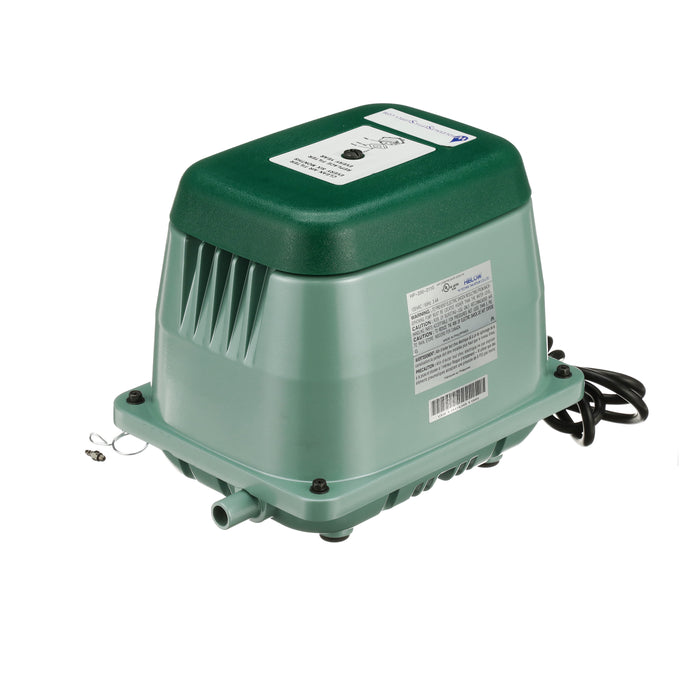

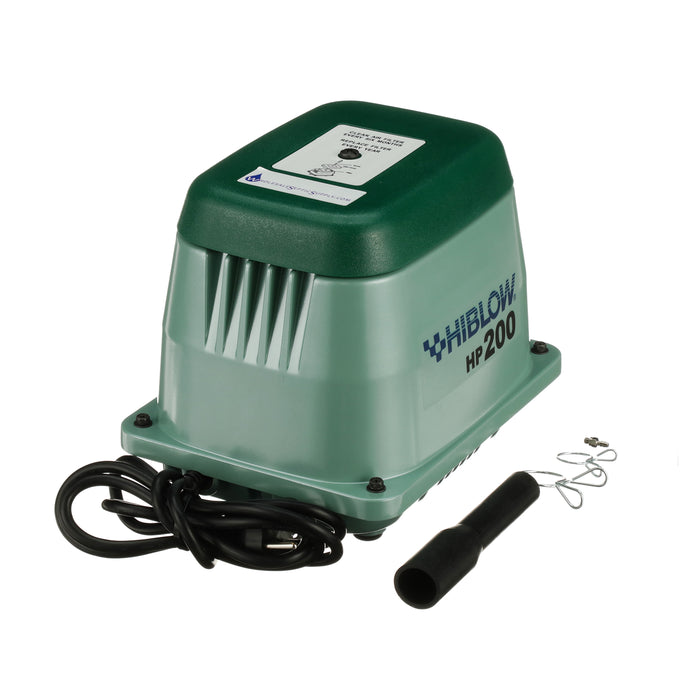

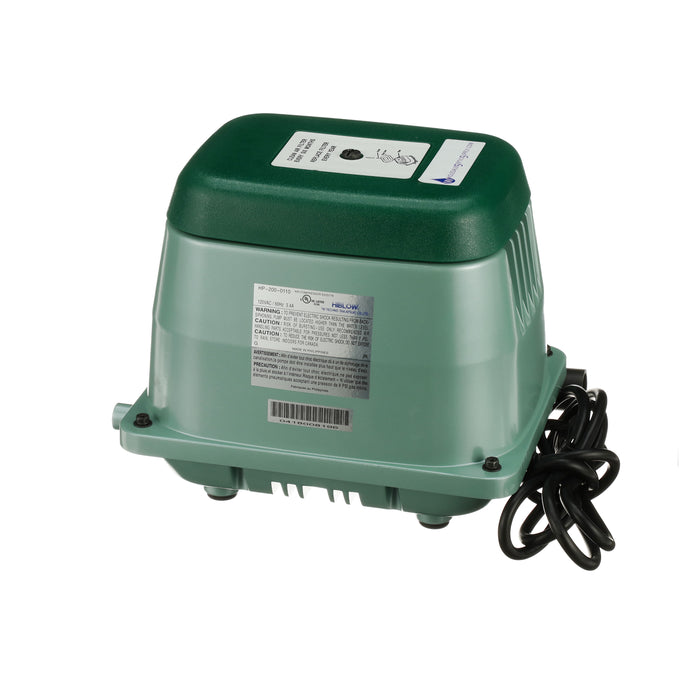

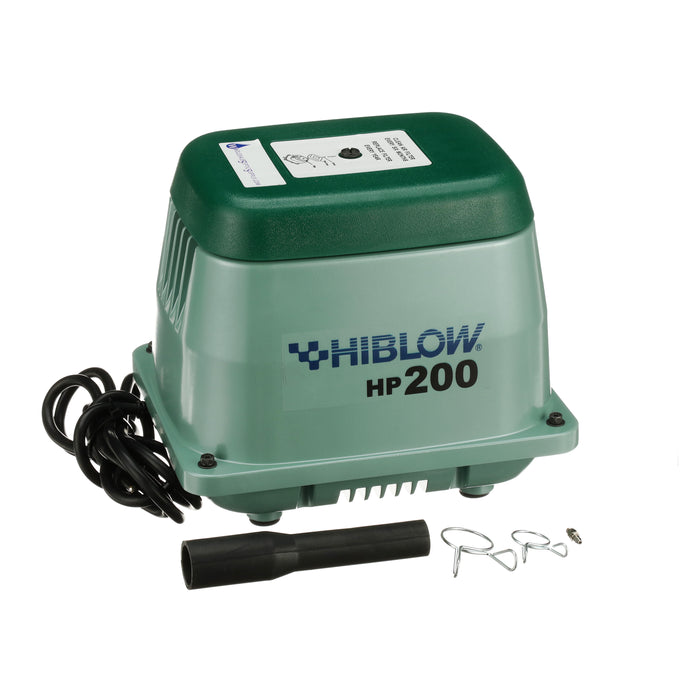

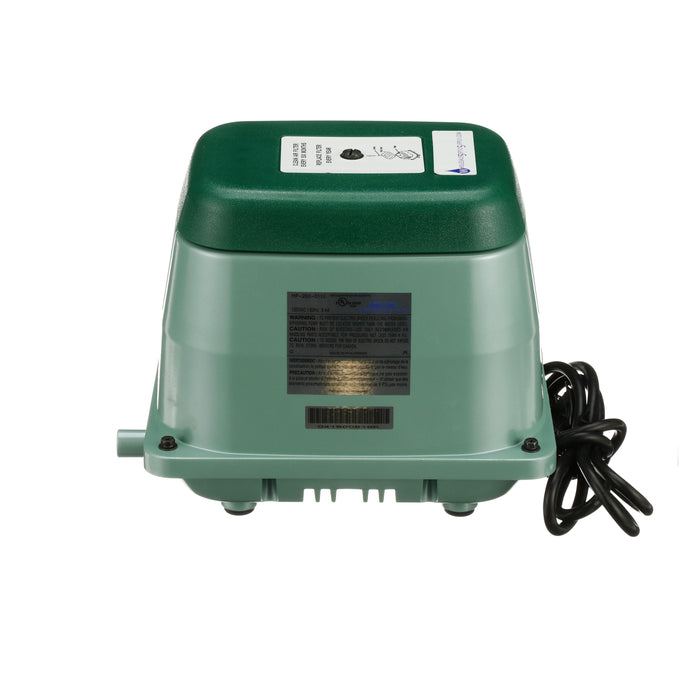

The Hiblow HP-200 pump can effectively and efficiently aerate ponds of up to three acres in size and up to ten feet in depth. This Hiblow linear air pump provides quiet operation, and is extremely energy efficient, especially when compared with other pond aeration compressors. The Hiblow HP-200 linear air pump is by far the best option for smaller, more shallow depth ponds.
All Hiblow pumps can operate on either 50hz or 60hz—do please note that the pump’s performance will vary depending on the frequency. HIBLOW linear pumps are not dual voltage; please check the label for data on the correct voltage and only apply the indicate voltage to power the pump.
Hiblow pumps will only operate on alternating current (AC) in order for the shuttle rod to achieve the correct back and forth motion, which creates the necessary pressure or vacuum for proper functioning. If you must operate a Hiblow pump from a DC source, an inverter would be required.
If your Hiblow HP series pump won’t turn on when first plugged in, it may have been bumped during shipping, which may have activated the safety slide switch to the position where it deactivated the electric motor. Please refer to the owner’s manual for instructions on how to reset the safety slide switch; you can find an electronic copy of the owner’s manual on the support tab of the Hiblow website.
For best performance and longest life, your Hiblow pump should be installed in a cool, dry location out of direct sunlight. A garage, shed, or crawlspace are all optimal options. If you must install the Hiblow pump in an outside location, be sure the pump receives sufficient ventilation—in order to achieve the maximum operating life, keep any additional heat exposure to a minimum.
2.3 Amps and 250 Watts are required for this product
This product’s ideal operating pressure is 2.90 PSI
The highest pressure at which this product can operate continuously is 4.3 PSI
Ideal airflow through the outlet of this product is 200 liters per minute
The maximum airflow through the outlet of this product is 240 liters per minute
The noise level of this product will be a little louder than the average noise level within a home.
Includes a pressure tap location for external alarm sensor
Oil free operation
Sound dampening technology
Rated Voltage 120 VAC
Current 2.3 A
Power supply Frequency 60 Hz
Power Consumption 250 W
Rated Loading Pressure 2.90 PSI
Maximum Continuous Operating Pressure 4.3 PSI
Maximum Airflow 240 L / min 8.4 cfm
Airflow Volume (@ rated pressure) 200 L / min 7.1 cfm
