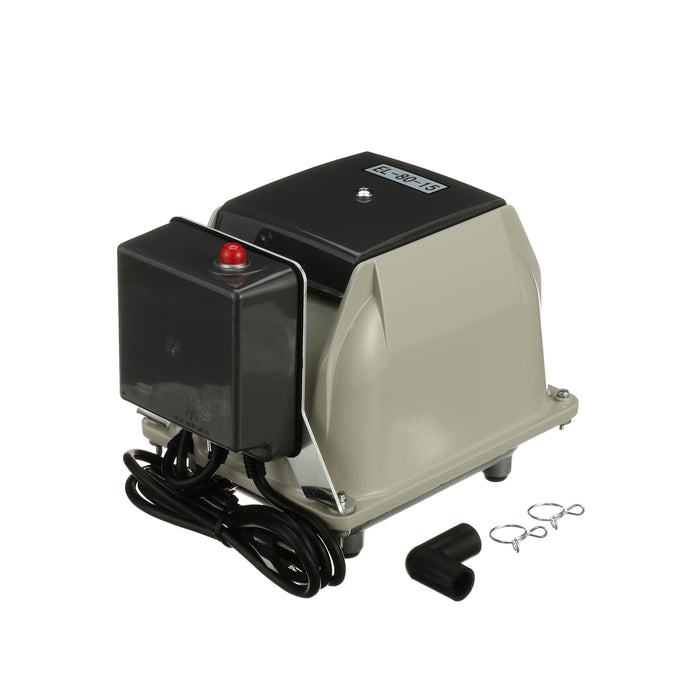

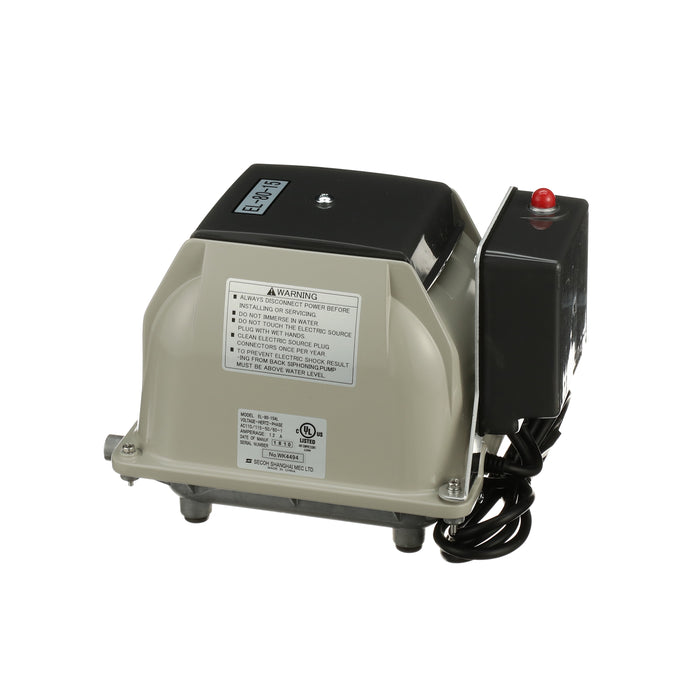

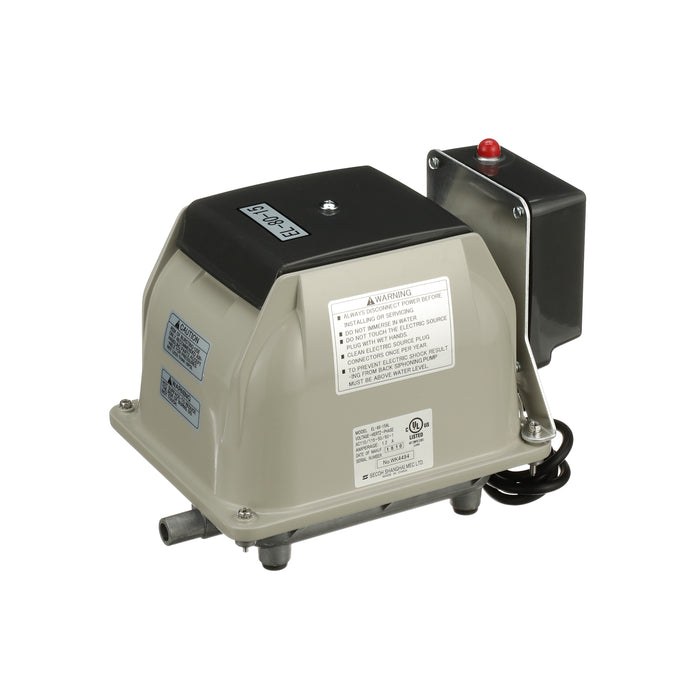

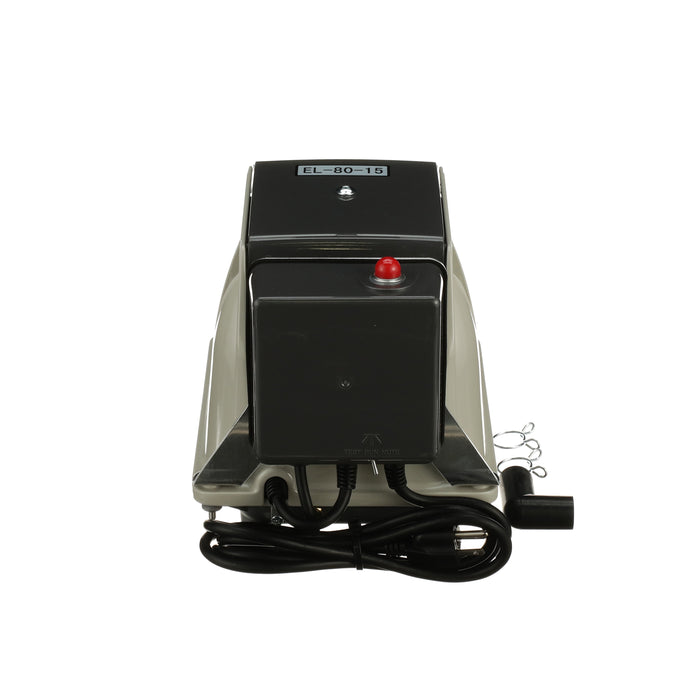

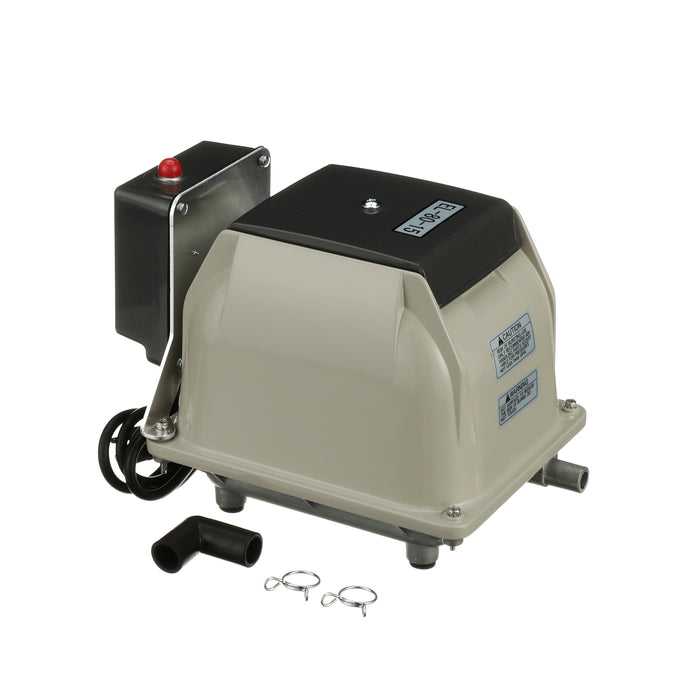

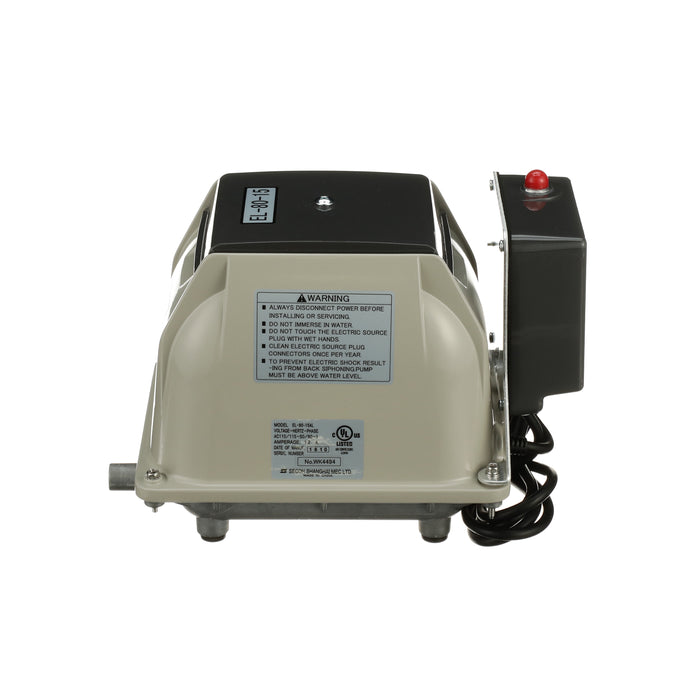

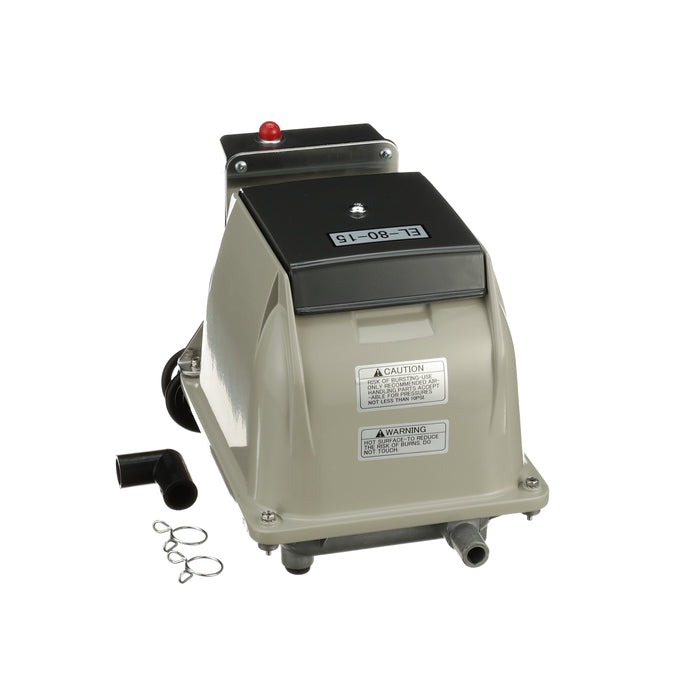

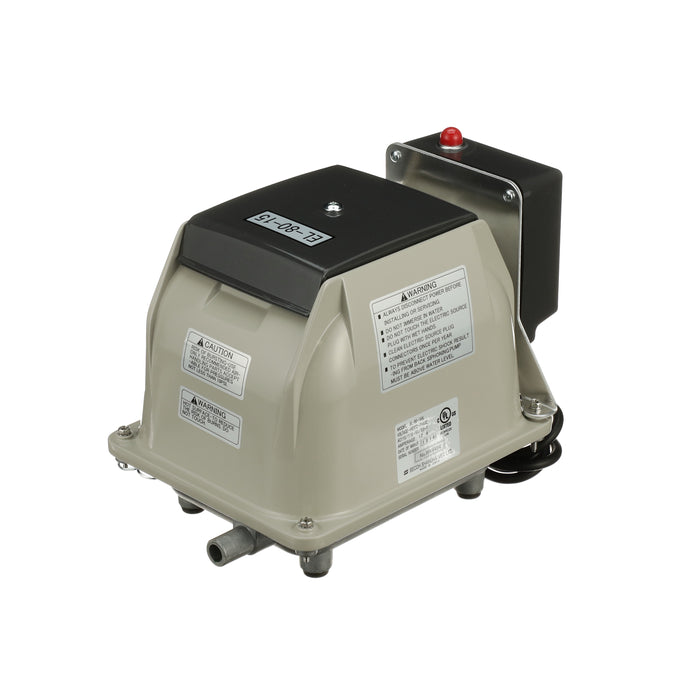

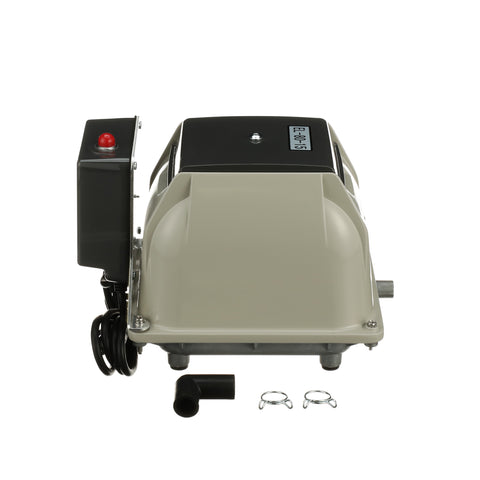

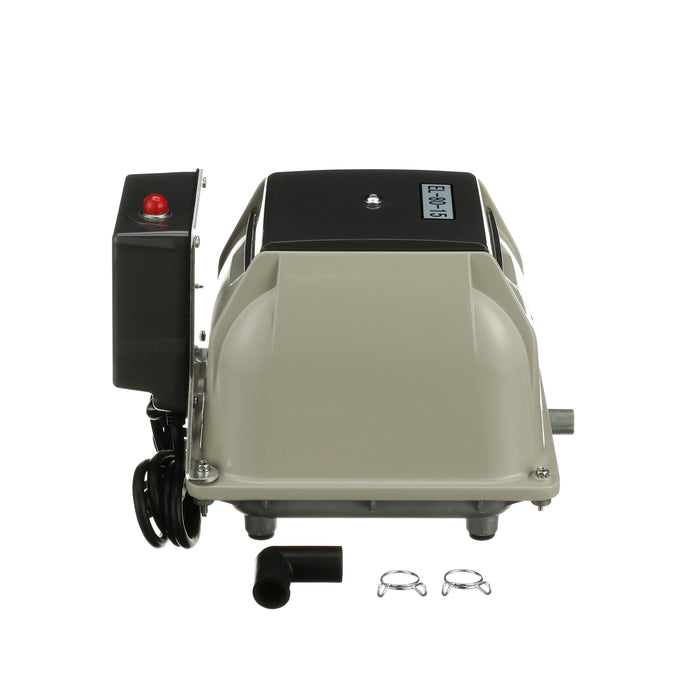

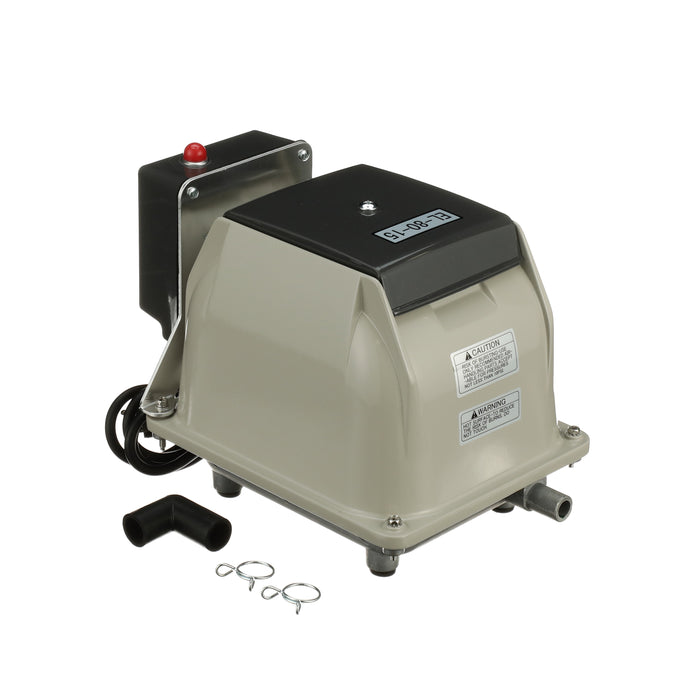

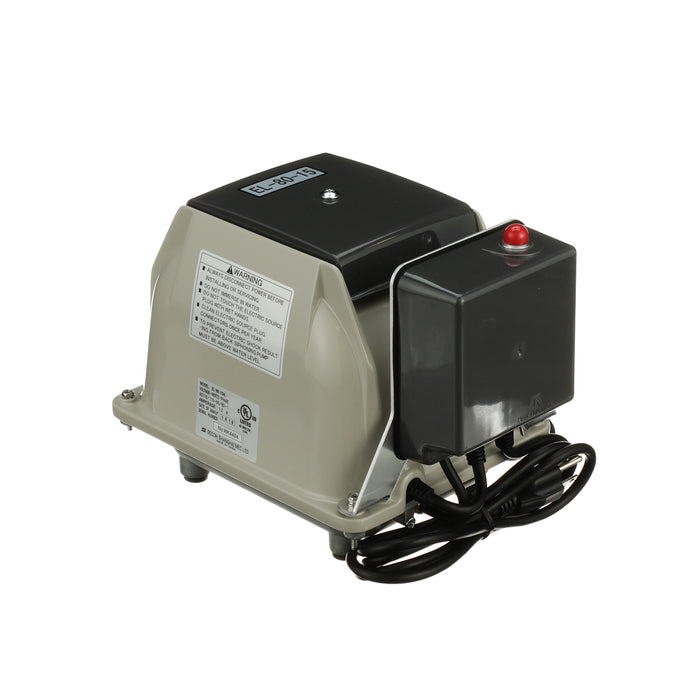

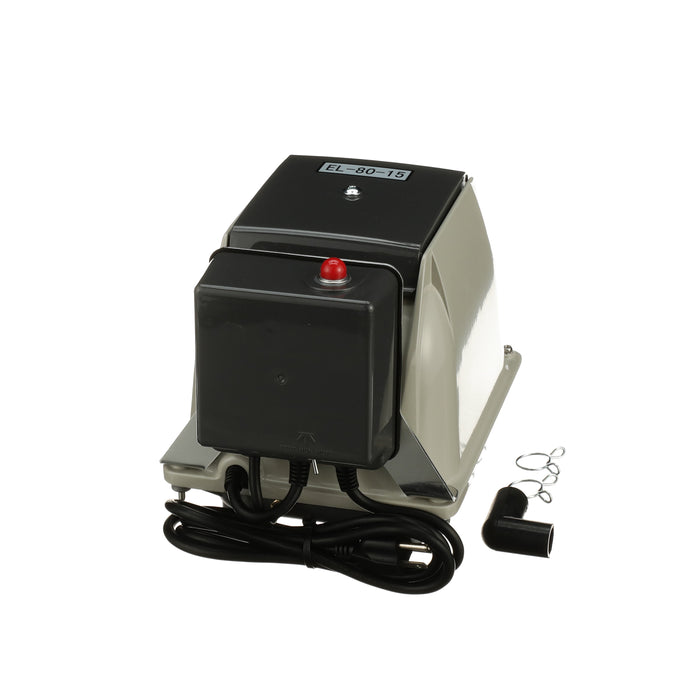

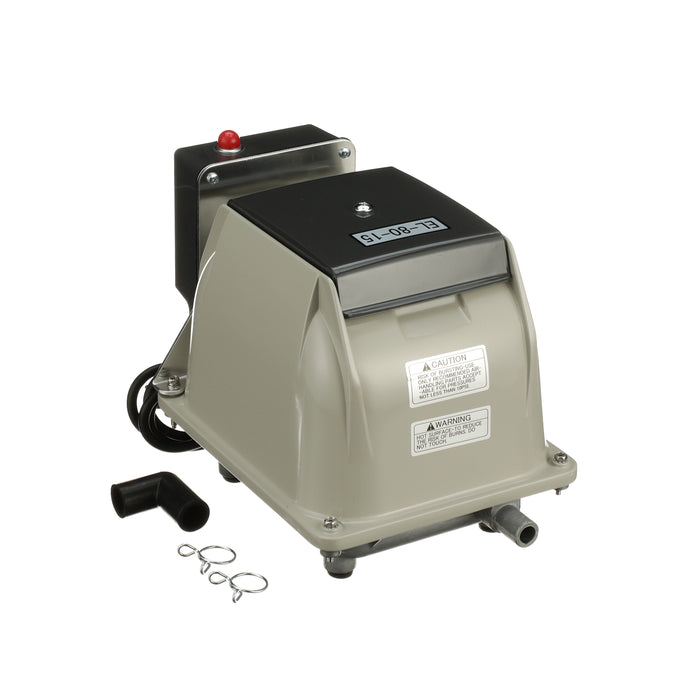

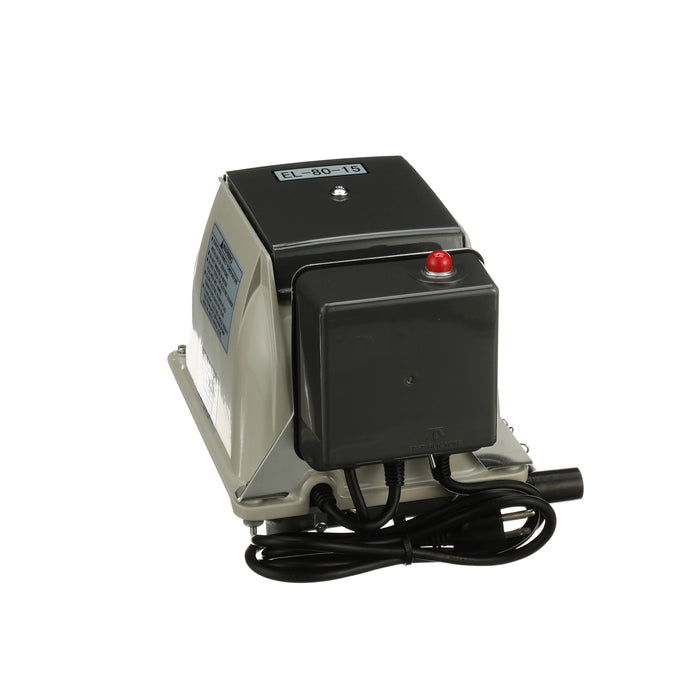

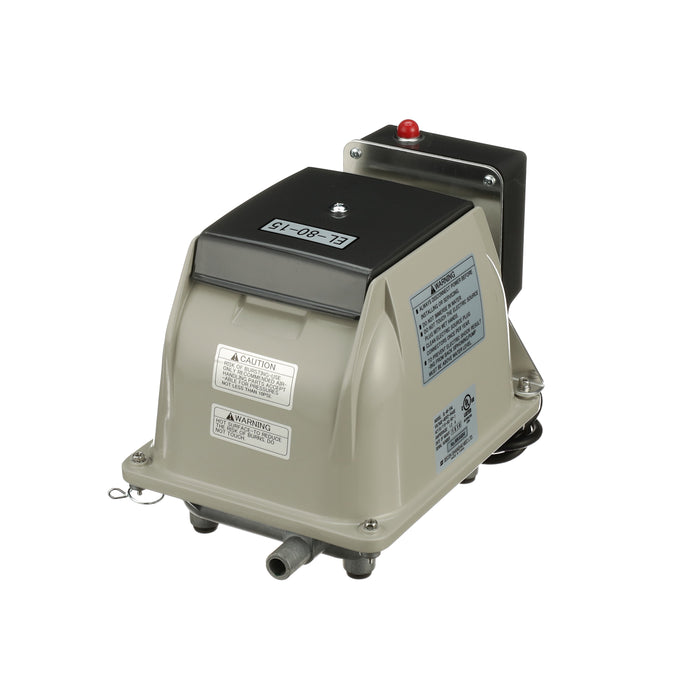

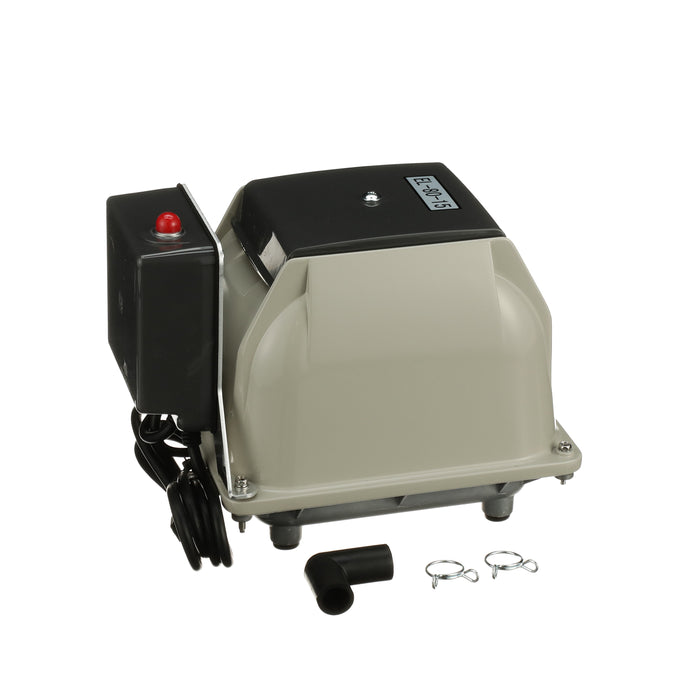

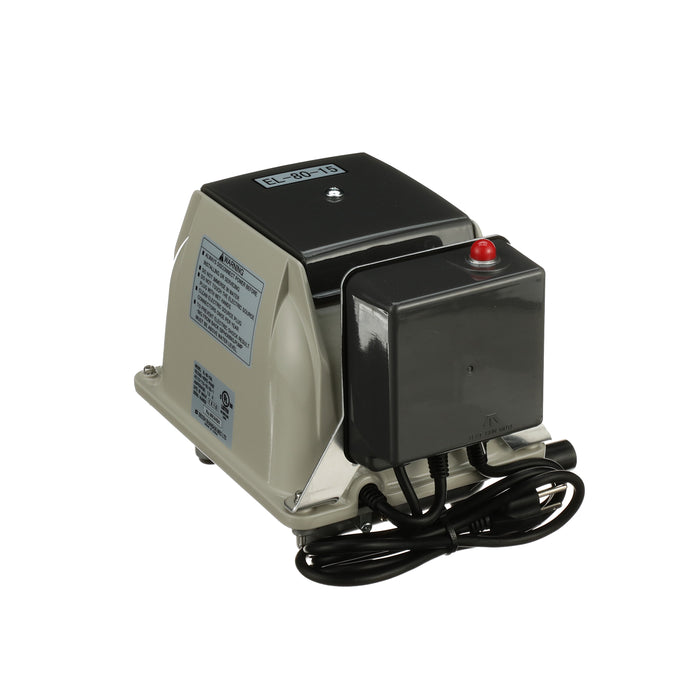

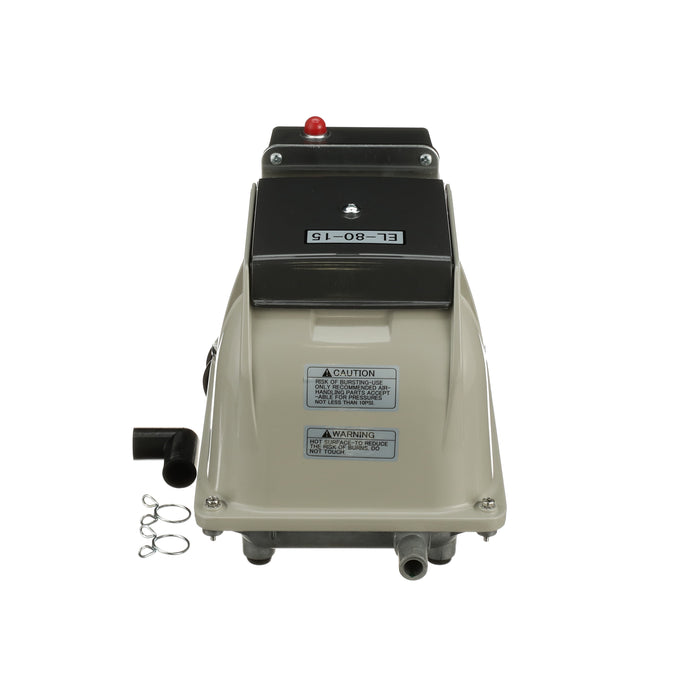

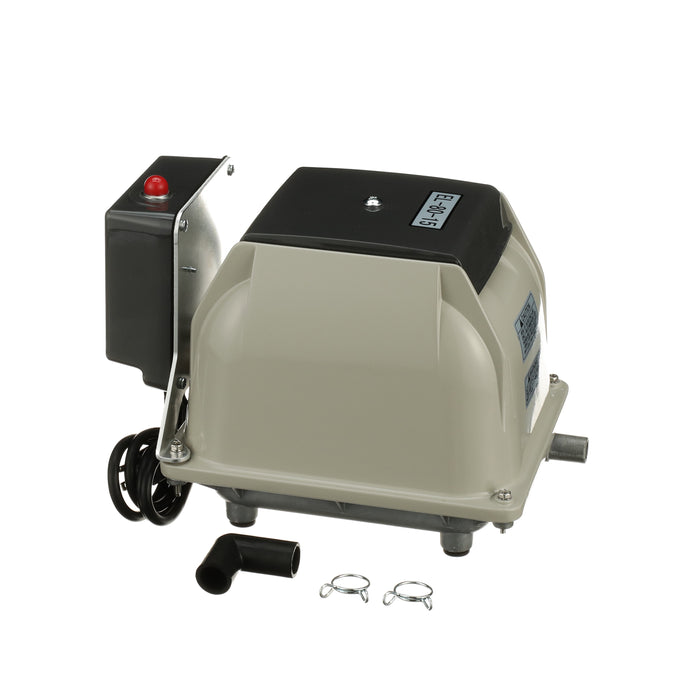

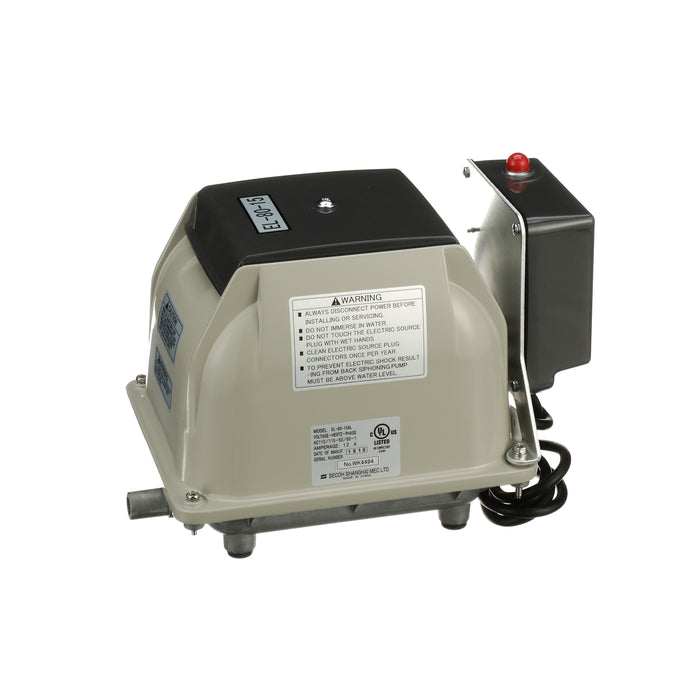

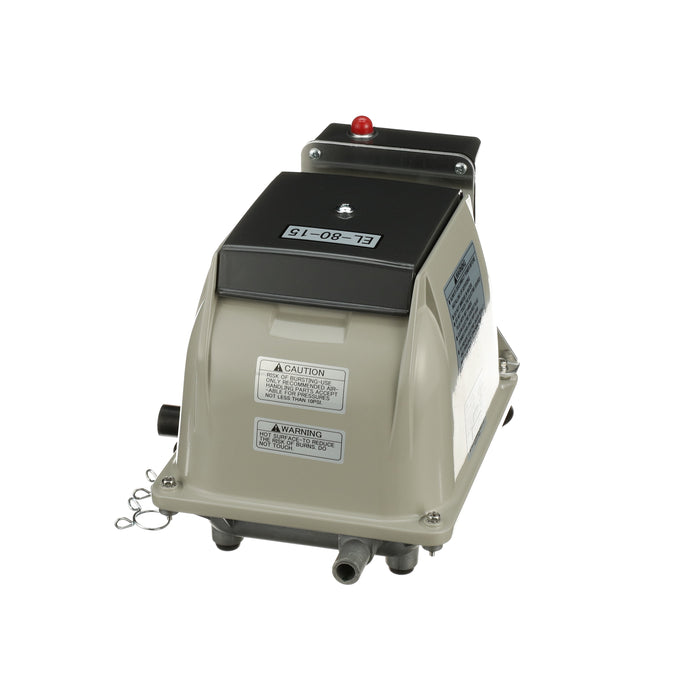

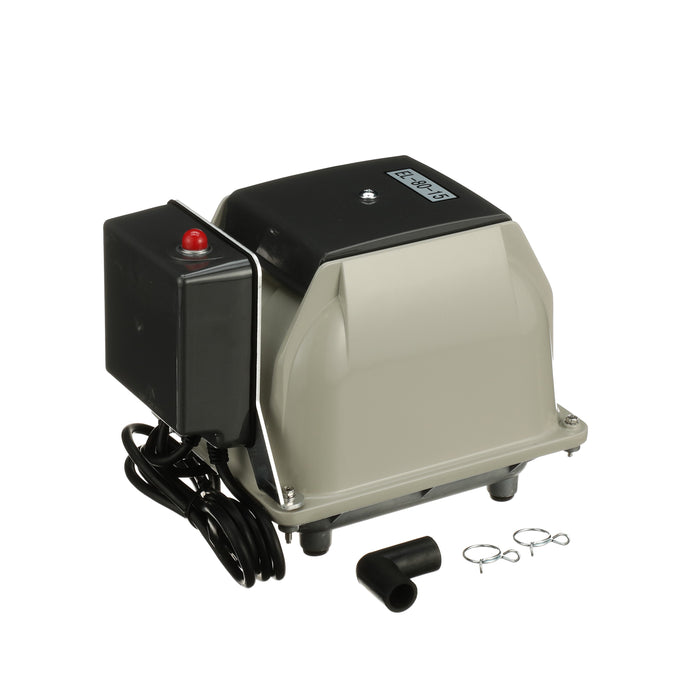

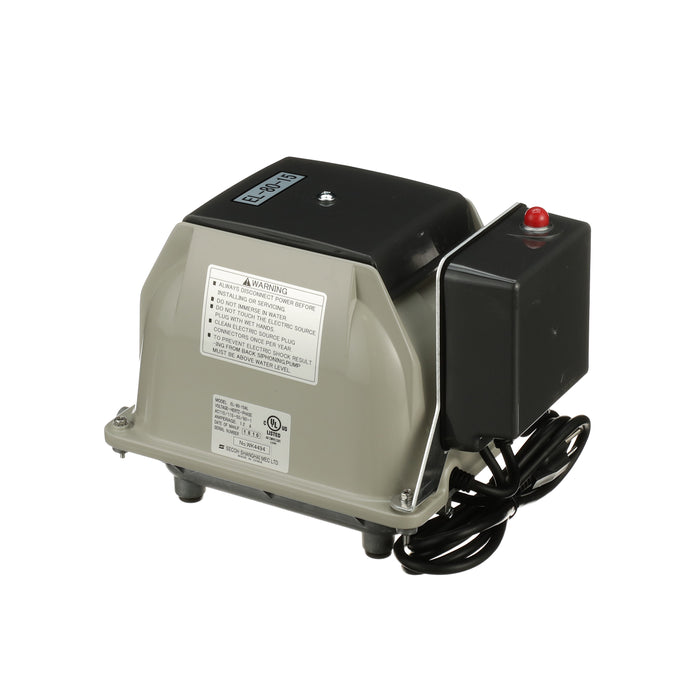

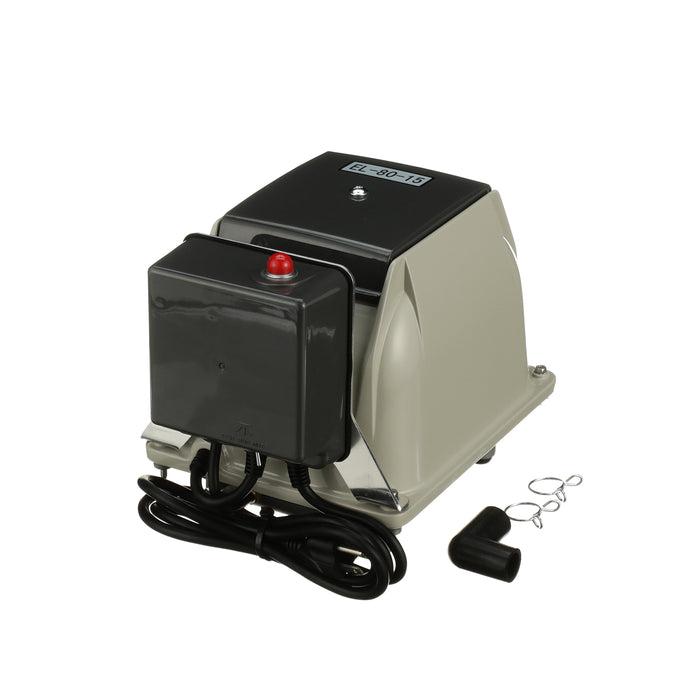

Secoh EL-80-15-AL Septic Air Pump

The Secoh EL-80-15-AL is a Secoh EL-80-15 that has an attached alarm on it.The alarm will sound if the the unit is producing less than 1.5 psi of pressure. This happens when the daiphrams are tore and damaged



Specifications

  • Air Flow: 80LPM or 2.83 CFM 4.23 CFM Open Flow. Open flow is measured right at the outlet of the pump with no resistance on the pump.
  • Power Consumption: 61W
  • Noise Level: 40db
  • Rated Pressure: 2.1 PSI
  • Voltage: 115 VAC
  • Frequency: 60 Hz
  • Net Weight: 18.7 lbs

Advantages

Integrated thermal limiter protection
EL series diaphragm pumps have thermal limiter built into the pump. This allows the contacts to separate when the temperature of the coils reaches temperature  of 150°C. After the septic aerator has cooled off it will start back up automatically. This normally only happens in very old pump that need to be replaced anyway.

Long life expectancy
Do to its unique rib designed diaphragm the EL series enjoys a long life. The rib design takes shock away and absorbs more energy than a flat style diaphragm. This helps EL Series Secoh air pumps last for a long time.

Reduced noise level
The Secoh's thick aluminum housing and sound proofing material that is wrapped around the unit inside help with keeping the operating noise down making the Secho one of the quietest septic air pumps. .

Low vibration
Motor and pump parts are separated by a vibration-isolating rubber, so only low vibration consists.

Oil less operation

No oil is used in the operation for lubrication.This provides fresh, clean, and contaminant free air into your system.

Outdoor Rated
EL series diaphragm aerators are waterproof and weatherproof. Its advisde the be kept under some type of housing to extend the life of the unit

Rebuild service kits
All models from 60-200 series use the same service kit. The 60-100 need one service kit and the 120-150 need two service kits.



QUESTIONS & ANSWERS

Ask a Question
  • What is the warranty on a SECOH EL-80-15 AL pump?

    The warranty is one year from the date of purchase.
